import xmind
import os
import re
import shutil
import zipfile
from xmind.core.const import TOPIC_DETACHED
from xmind.core.markerref import MarkerId
from xmind.core.topic import TopicElement
def extract(d_path, f_path, mode="zip"):
 """
 zip解壓縮亂碼問題處理
 :param d_path:
 :param f_path:
 :return:
 """
 root = d_path
 if not os.path.exists(root):
  os.makedirs(root)
 if mode == 'zip':
  zf = zipfile.ZipFile(f_path,"r")
 elif mode == 'rar':
  zf = rarfile.RarFile(f_path,"r")
 for n in zf.infolist():
  srcName = n.filename
  try:
decodeName = srcName.encode("cp437").decode("utf-8")
  except:
try:
 decodeName = srcName.encode("cp437").decode("gbk")
except:
 decodeName = srcName
  spiltArr = decodeName.split("/")
  path = root
  for temp in spiltArr:
path = os.path.join(path, temp)
  if decodeName.endswith("/"):
if not os.path.exists(path):
 os.makedirs(path)
  else:
if not os.path.exists(os.path.dirname(path)):
 os.makedirs(os.path.dirname(path))
f = open(path, "wb")
f.write(zf.read(srcName))
f.close()
 zf.close()

def aftertreatment(path):
 """

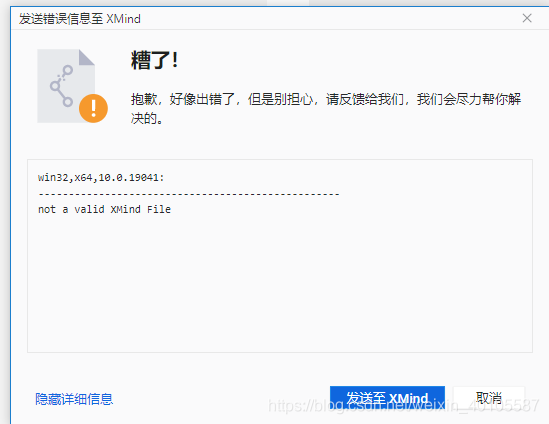

 **場景　xmind8 可以打開　xmind2020 報錯
 main_fest.xml(xmind8 打開另存后 更改后綴為.zip  里邊包含META-INF/manifest.xml)
 xmind 修改后綴為zip ----》解壓---- 》放入main_fest.xml  --- 》壓縮zip  修改后綴為xmind**
 """
 # 修改名字
 retval = os.path.dirname(os.path.abspath(__file__))
 folder = os.path.dirname(path)
 name = os.path.basename(path)
 unzip_folder = os.path.splitext(name)[0]
 zip_name = unzip_folder + ".zip"
 os.chdir(folder)
 os.rename(name, zip_name)
 os.chdir(retval)
 # 解壓
 unzip_path = os.path.join(folder, unzip_folder)
 if not os.path.exists(unzip_path):
  os.mkdir(unzip_path)
 inf_folder = os.path.join(unzip_path, "META-INF")
 if not os.path.exists(inf_folder):
  os.mkdir(inf_folder)
 extract(unzip_path, os.path.join(folder, zip_name))
 shutil.copyfile("./META-INF/manifest.xml", os.path.join(inf_folder, "manifest.xml"))
 os.remove(os.path.join(folder, zip_name))
 shutil.make_archive(unzip_path, 'zip', unzip_path)
 file_path = unzip_path + '.zip'
 print(file_path)
 os.chdir(os.path.dirname(file_path))
 os.rename(os.path.basename(file_path), name)
 os.chdir(retval)
 shutil.rmtree(unzip_path)

def gen_xmind_file(data, path):
 # load an existing file or create a new workbook if nothing is found
 workbook = xmind.load(path)
 # get the first sheet(a new workbook has a blank sheet by default)
 sheet1 = workbook.getPrimarySheet()
 # design_sheet1(sheet1)
 # create sheet2
 gen_sheet2(workbook, sheet1, data)
 # now we save as test.xmind
 xmind.save(workbook, path=path)
 # 修復
 aftertreatment(path)
def recursive(children, node, workbook):
 if len(children) == 0:
  return
 for c in children:
  t = TopicElement(ownerWorkbook=workbook)
  t.setTitle(c["data"]["text"])
  if len(c["children"]):
recursive(c["children"], t, workbook)
  node.addSubTopic(t)

def gen_sheet2(workbook, sheet2, data):
 # ***** second sheet *****
 # create a new sheet and add to the workbook by default
 # sheet2 = workbook.createSheet()
 center = data["root"]["data"]["text"]
 sheet2.setTitle(center)
 # a sheet has a blank sheet by default
 root_topic2 = sheet2.getRootTopic()
 root_topic2.setTitle(center)
 topics = data["root"]["children"]
 for t in topics:
  # use other methods to create some sub topic element
  topic = TopicElement(ownerWorkbook=workbook)
  # set a topic hyperlink from this topic to the first sheet given by s1.getID()
  # topic1.setTopicHyperlink(sheet1.getID())
  # print(t["data"]["text"], t["data"]["layout_mind_offset"]["x"], t["data"]["layout_mind_offset"]["y"])
  topic.setTitle(t["data"]["text"])  # set its title
  # topic.setPosition(t["data"]["layout_mind_offset"]["x"], t["data"]["layout_mind_offset"]["y"])
  recursive(t["children"], topic, workbook)
  root_topic2.addSubTopic(topic)

if __name__ == '__main__':
 data = {
  "root": {
"data": {
 "id": "c1jsg864saw0",
 "created": 1585126506413,
 "text": "新手指南",
 "color": "#000000",
 "font-weight": "bold",
 "font-size": 32
},
"children": [
 {
  "data": {"id": "c1jsisau8rc0","created": 1585126706961,"text": "節點操作","expandState": "expand","layout_mind_offset": {
"x": 36,
"y": 93},"background": "#ffc000","font-size": 22,"color": "#000000","font-weight": "bold","layout_right_offset": {
"x": -48,
"y": -39},"icon": "youxian_01"
  },
  "children": [{
"data": {
 "id": "c1jslg11qzk0",
 "created": 1585126915340,
 "text": "插入節點",
 "font-size": 18,
 "color": "#ffc000",
 "layout_right_offset": {
  "x": 96,
  "y": -95
 },
 "background": "#404040",
 "font-weight": "bold",
 "icon": "qizhi_01"
},
"children": [
 {
  "data": {
"id": "c1jsn3rlhbc0",
"created": 1585127045376,
"text": "下級：快捷鍵【Tab】 ",
"font-size": 18,
"color": "#ffc000",
"layout_right_offset": {
 "x": 27,
 "y": -12
},
"background": "transparent"
  },
  "children": [
  ]
 },
 {
  "data": {
"id": "c1jso0dk2cg0",
"created": 1585127116361,
"text": "同級：快捷鍵【Enter】 ",
"font-size": 18,
"color": "#ffc000",
"layout_right_offset": {
 "x": 27,
 "y": 0
},
"background": "transparent"
  },
  "children": [
  ]
 },
 {
  "data": {
"id": "c1jsp3q5g4g0",
"created": 1585127202017,
"text": "上級：快捷鍵【Shift + Tab】",
"font-size": 18,
"color": "#ffc000",
"layout_right_offset": {
 "x": 30,
 "y": 13
},
"background": "transparent"
  },
  "children": [
  ]
 }
]},{
"data": {
 "id": "c1jslivsluw0",
 "created": 1585126921553,
 "text": "移動節點",
 "font-size": 18,
 "color": "#fabf8f",
 "expandState": "expand",
 "layout_right_offset": {
  "x": 97,
  "y": -36
 },
 "background": "#404040",
 "font-weight": "bold"
},
"children": [
 {
  "data": {
"id": "c1jsqis0d540",
"created": 1585127313145,
"text": "上移：快捷鍵【Alt + ↑ 】",
"background": "transparent",
"font-size": 18,
"color": "#fbd4b4",
"layout_right_offset": {
 "x": 32,
 "y": -12
}
  },
  "children": [
  ]
 },
 {
  "data": {
"id": "c1jsqjz54o80",
"created": 1585127315753,
"text": "下移：快捷鍵【Alt + ↓ 】",
"font-size": 18,
"color": "#fbd4b4",
"layout_right_offset": {
 "x": 31,
 "y": 0
},
"background": "transparent"
  },
  "children": [
  ]
 },
 {
  "data": {
"id": "c1jsqkfoncw0",
"created": 1585127316753,
"text": "收起/展開：快捷鍵【 / 】",
"font-size": 18,
"color": "#fbd4b4",
"layout_right_offset": {
 "x": 34,
 "y": 13
},
"background": "transparent"
  },
  "children": [
  ]
 }
]},{
"data": {
 "id": "c1jt8kpu4x40",
 "created": 1585128727922,
 "text": "文字換行",
 "expandState": "expand",
 "font-size": 18,
 "layout_right_offset": {
  "x": 103,
  "y": 25
 },
 "color": "#ffc000",
 "background": "#404040",
 "font-weight": "bold",
 "icon": "star_02"
},
"children": [
 {
  "data": {
"id": "c1jt94rf40w0",
"created": 1585128771553,
"text": "快捷鍵【Shift + Enter 】",
"font-size": 18,
"layout_right_offset": {
 "x": 13,
 "y": -1
},
"color": "#ffc000"
  },
  "children": [
  ]
 }
]}
  ]
 },
 {
  "data": {"id": "c1jswayqnqo0","created": 1585127766323,"text": "畫布操作","layout_mind_offset": {
"x": -737,
"y": -222},"font-size": 22,"background": "#e5dfec","color": "#000000","font-weight": "bold","layout_right_offset": {
"x": 29,
"y": 83}
  },
  "children": [{
"data": {
 "id": "c1jswgwssps0",
 "created": 1585127779266,
 "text": "放大畫布：Ctrl +“+”",
 "font-size": 18,
 "color": "#ccc0d9",
 "layout_right_offset": {
  "x": 68,
  "y": -38
 },
 "layout_left_offset": {
  "x": -36,
  "y": -47
 }
},
"children": [
]},{
"data": {
 "id": "c1jswhh0nmo0",
 "created": 1585127780488,
 "text": "縮小畫布：Ctrl +“-”",
 "font-size": 18,
 "color": "#ccc0d9",
 "layout_right_offset": {
  "x": 68,
  "y": -22
 },
 "layout_left_offset": {
  "x": -39,
  "y": -28
 }
},
"children": [
]},{
"data": {
 "id": "c1jswivop5k0",
 "created": 1585127783552,
 "text": "拖動畫布：按住鼠標右鍵",
 "font-size": 18,
 "color": "#ccc0d9",
 "layout_right_offset": {
  "x": 69,
  "y": 2
 },
 "layout_left_offset": {
  "x": -39,
  "y": -3
 }
},
"children": [
]},{
"data": {
 "id": "c1jswjvpi9k0",
 "created": 1585127785730,
 "text": "定位節點中心：雙擊鼠標左鍵",
 "font-size": 18,
 "color": "#ccc0d9",
 "layout_right_offset": {
  "x": 71,
  "y": 14
 },
 "layout_left_offset": {
  "x": -41,
  "y": 10
 }
},
"children": [
]}
  ]
 },
 {
  "data": {"id": "c1jsleo62hk0","created": 1585126912385,"text": "導出格式","layout_mind_offset": {
"x": -46,
"y": 108},"expandState": "expand","font-size": 22,"background": "#c2d69b","color": "#262626","font-weight": "bold","layout_right_offset": {
"x": 5,
"y": 153}
  },
  "children": [{
"data": {
 "id": "c1knktgogog0",
 "created": 1585214320627,
 "text": "圖片",
 "font-size": 18,
 "color": "#000000",
 "expandState": "expand",
 "layout_right_offset": {
  "x": 58,
  "y": -20
 },
 "background": "#c2d69b",
 "layout_left_offset": {
  "x": -48,
  "y": -28
 }
},
"children": [
 {
  "data": {
"id": "c1jsqis0d540",
"created": 1585127313145,
"text": "JPG、PNG、SVG",
"background": "transparent",
"font-size": 18,
"color": "#c2d69b",
"layout_right_offset": {
 "x": 1,
 "y": 1
}
  },
  "children": [
  ]
 }
]},{
"data": {
 "id": "c1knl8lj2m00",
 "created": 1585214353572,
 "text": "文件",
 "font-size": 18,
 "color": "#000000",
 "expandState": "expand",
 "layout_right_offset": {
  "x": 61,
  "y": 0
 },
 "background": "#c2d69b",
 "layout_left_offset": {
  "x": -47,
  "y": 2
 }
},
"children": [
 {
  "data": {
"id": "c1jsqis0d540",
"created": 1585127313145,
"text": "PDF、json、TXT、markdown",
"background": "transparent",
"font-size": 18,
"color": "#c2d69b",
"layout_right_offset": {
 "x": 0,
 "y": 1
}
  },
  "children": [
  ]
 }
]}
  ]
 }
]
  },
  "subtree": [
  ],
  "template": "default",
  "theme": "classic-compact",
  "relLine": [
  ],
  "style": {
  },
  "themeBgColor": "",
  "background": "",
  "version": "1.5.2",
  "ppts": [
  ]
 }
 path = '/home/python/Desktop/proejct_xx/_media/temp_file/test.xmind'
 gen_xmind_file(data,  path=path)
