Windows Apache2.4 VC9(ApacheHaus)詳細安裝配置教程
1,Apache下載

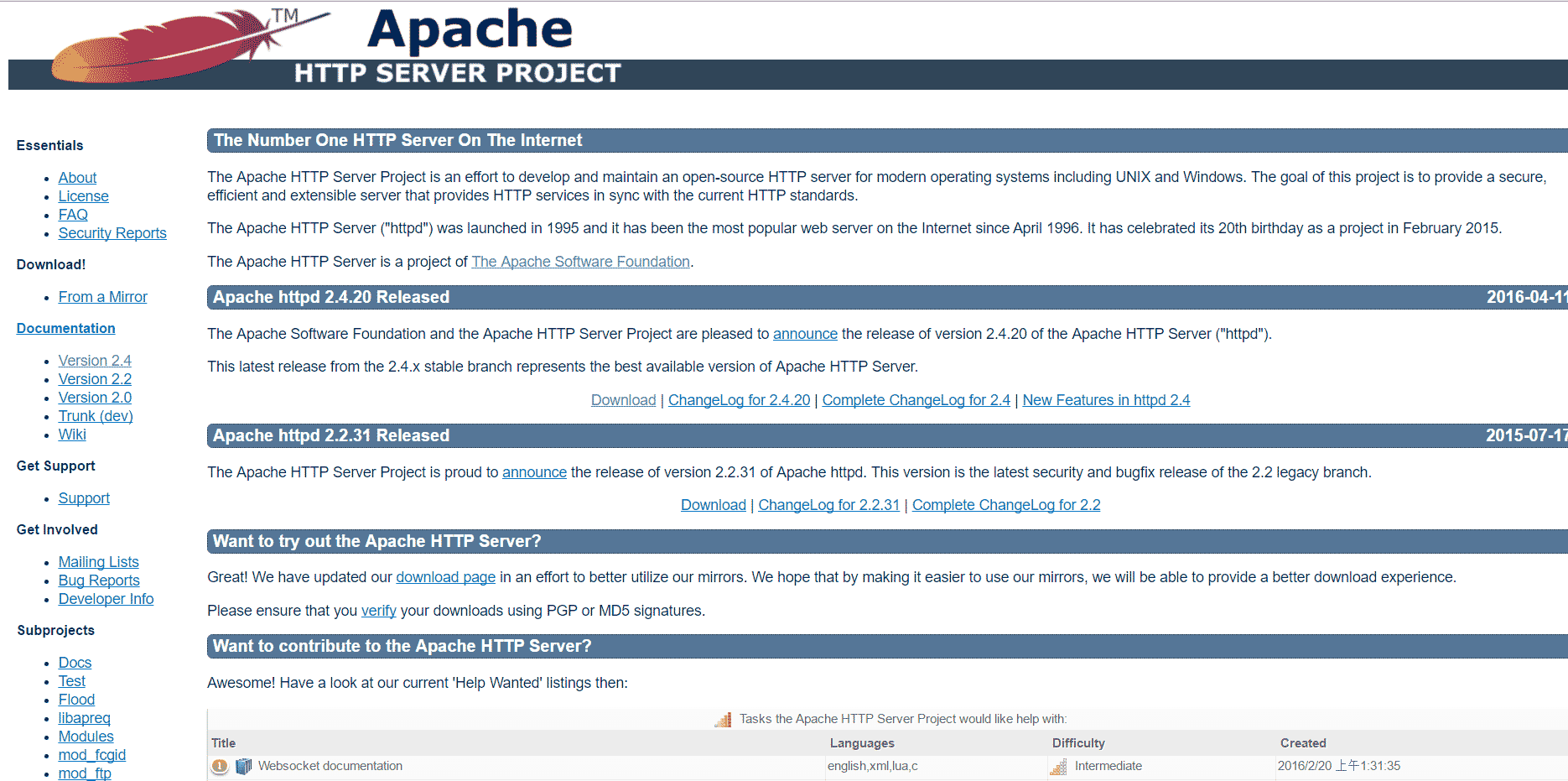

選擇一個版本,點擊Download

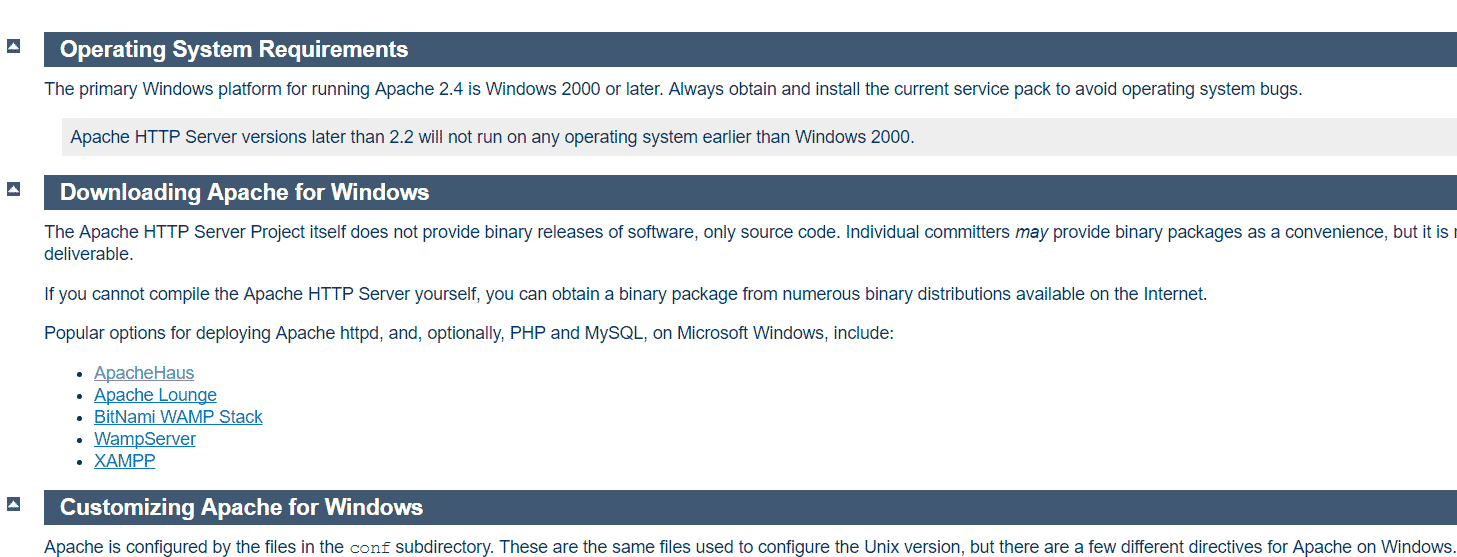

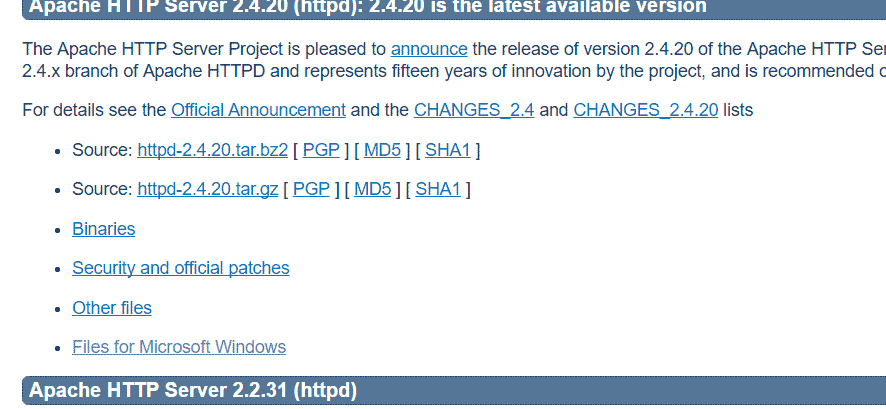

點擊File For Microsoft Windows

由于Apache HTTP Server官方不提供二進制(可執行)的發行版,所以我們選擇一些貢獻者編譯完成的版本,我們選擇第一個ApacheHaus

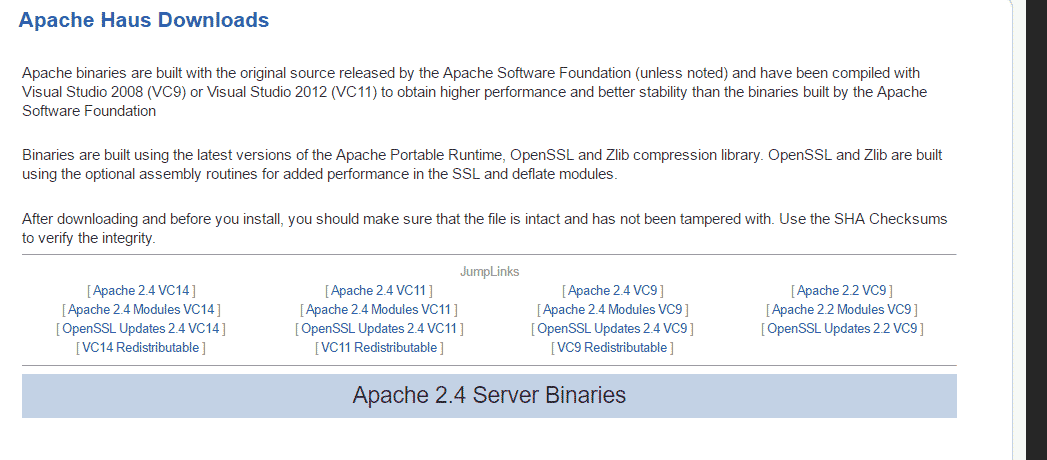

點擊ApacheHaus,進入下載頁

選擇其中一個版本,如果你的Windows還沒安裝對應的VC環境的話,選擇對應的VCRedistribute版本下載安裝。我選擇Apache 2.4VC9版,因?yàn)槲业碾娔X中已經安裝了VC9的環境。
點擊JumpLinks下第一行的某一個版本,下載對應壓縮包。
2,配置Apache之一--httpd.conf
解壓后進入里面Apache22(最后兩位數字可能不同)文件夾,使用文本編輯器(推薦ultraedit)打開conf文件夾中的httpd.conf配置文件
找到ServerRoot選項,設置Apache目錄,大約在35行左右,將其改成你的Apache程序的文件夾,例:
ServerRoot "C:/Users/myPC/Downloads/httpd-2.2.31-x86-r3/Apache22"
找到Listen選項,設置端口,大約46行,一般不修改,使用默認80,在開啟服務器前請保證80端口未被占用
找到DocumentRoot選項,修改服務器根目錄,例:
DocumentRoot "F:/"
請保證此目錄存在,否則服務器無法正常啟動
修改Directory,保證其與服務器根目錄相同,只修改下面的第一行中引號部分
<Directory "F:/"> # # Possible values for the Options directive are "None", "All", # or any combination of: # Indexes Includes FollowSymLinks SymLinksifOwnerMatch ExecCGI MultiViews # # Note that "MultiViews" must be named *explicitly* --- "Options All" # doesn't give it to you. # # The Options directive is both complicated and important. Please see # http://httpd.apache.org/docs/2.2/mod/core.html#options # for more information. # Options Indexes FollowSymLinks # # AllowOverride controls what directives may be placed in .htaccess files. # It can be "All", "None", or any combination of the keywords: # Options FileInfo AuthConfig Limit # AllowOverride None # # Controls who can get stuff from this server. # Order allow,deny Allow from all </Directory>
找到ScriptAlias選項,設置服務器腳本目錄,大約326行,一般將其設置為Apache目錄下的cgi-bin文件夾
ScriptAlias /cgi-bin/ "C:/Users/myPC/Downloads/httpd-2.2.31-x86-r3/Apache22/cgi-bin"
找到隨后的Directory選項,設置腳本目錄,大約342行,需要將其設置為和前面的ScriptAlias目錄相同
<Directory "C:/Users/myPC/Downloads/httpd-2.2.31-x86-r3/Apache22/cgi-bin"> AllowOverride None Options None Order allow,deny Allow from all </Directory>
3,配置Apache之二--ssl配置

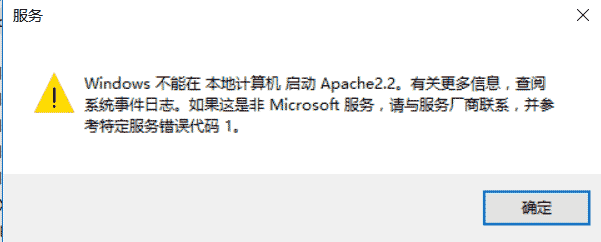

如果你這使啟動服務,一般會出現下面的消息對話框:

提示
Windows不能在本地計算機啟動Apache2.2。有關更多信息,查閱系統日志文件。如果這是非Microsoft服務,請與廠商聯系,并參考特定服務器錯誤代碼1。
確定此問題的原因:

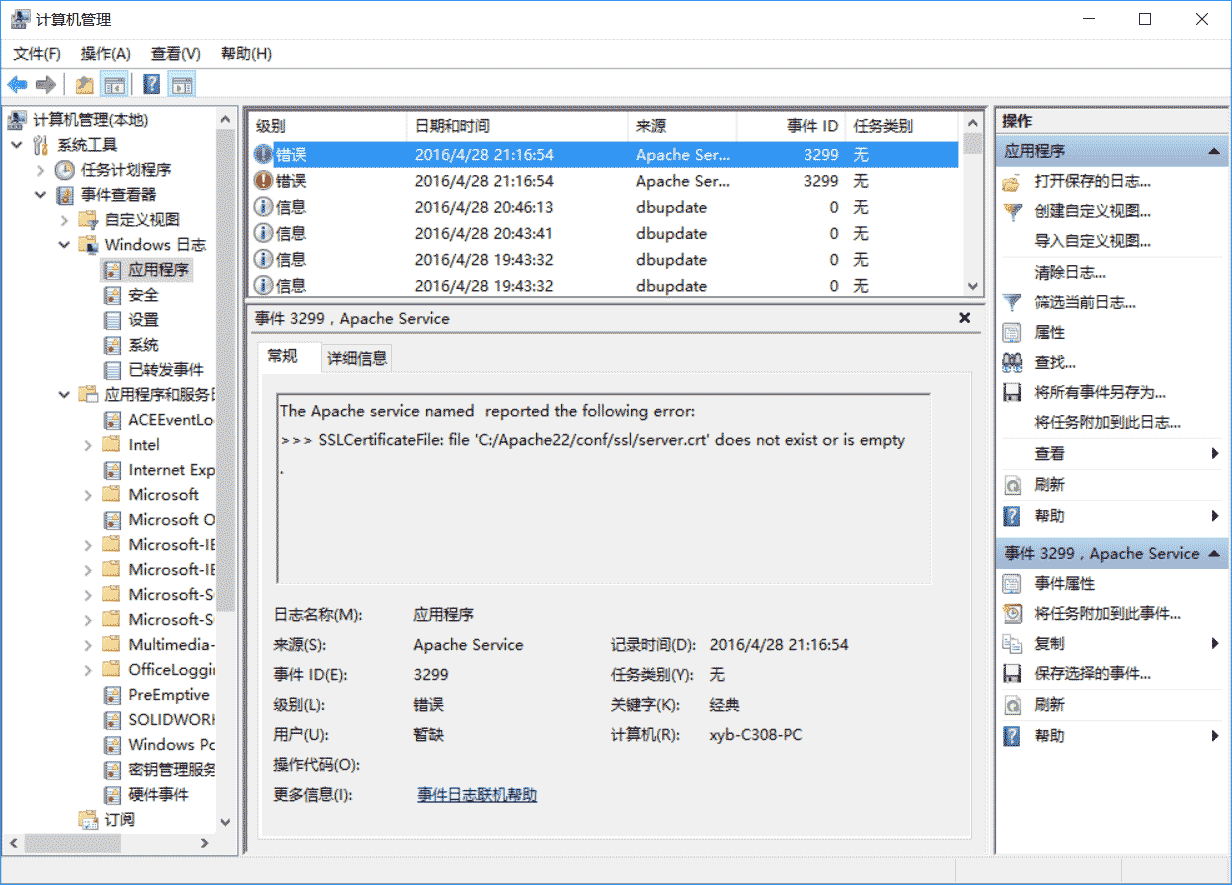

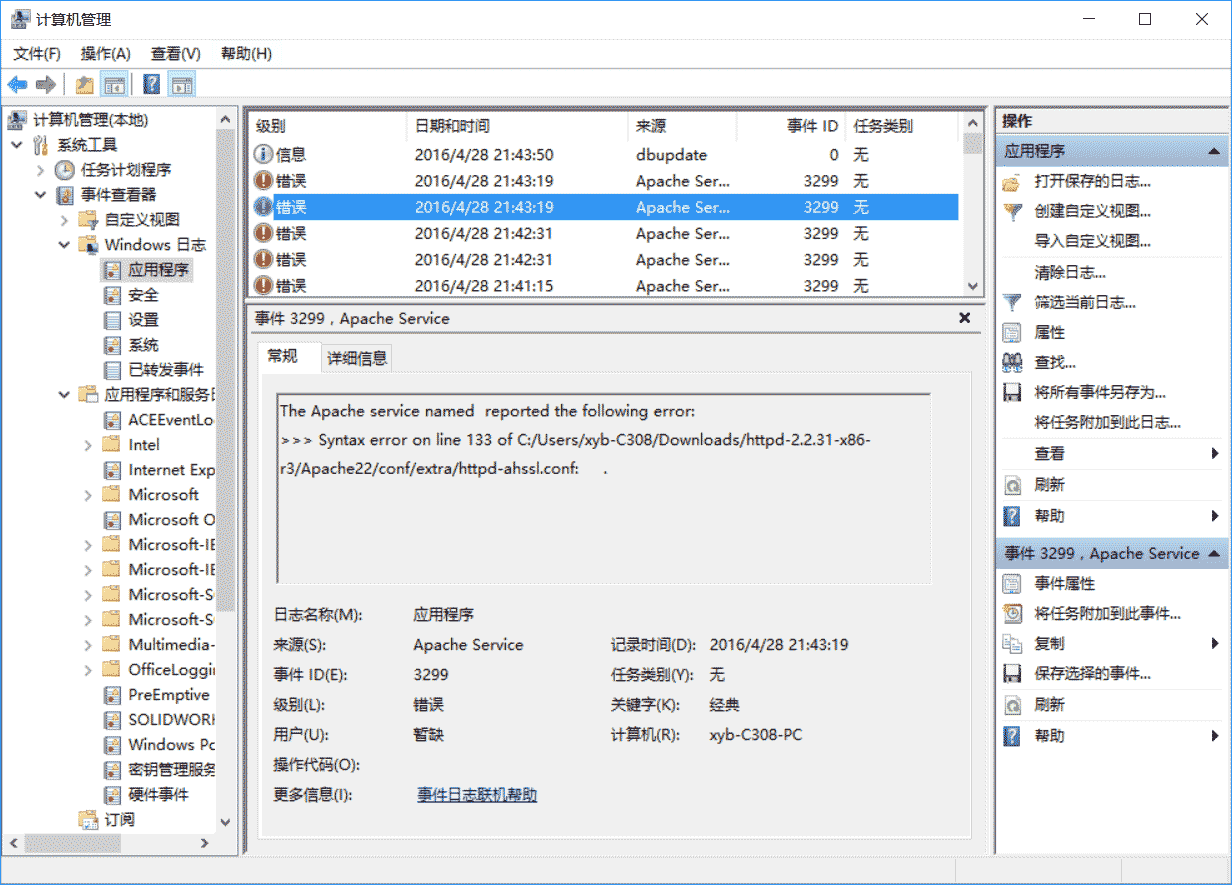

右鍵 計算機,點擊管理->Windows日志->應用程序,顯示如下


這是由于SSL配置不正確所產生的,下面說一下解決辦法。
打開Apache程序目錄下的conf/extra/httpd-ahssl.conf文件,配置VirtualHost選項,有三處名為VirtualHost的選項,均需修改。
第一個在107行左右。
在110行左右,將其中的SSLCertificateFile改為:Apache所在目錄/conf/ssl/server.crt
在111行左右,將SSLCertificateKeyFile改為:Apache所在目錄/conf/ssl/server.key
在112行左右,將DocumentRoot改為你的服務器根目錄

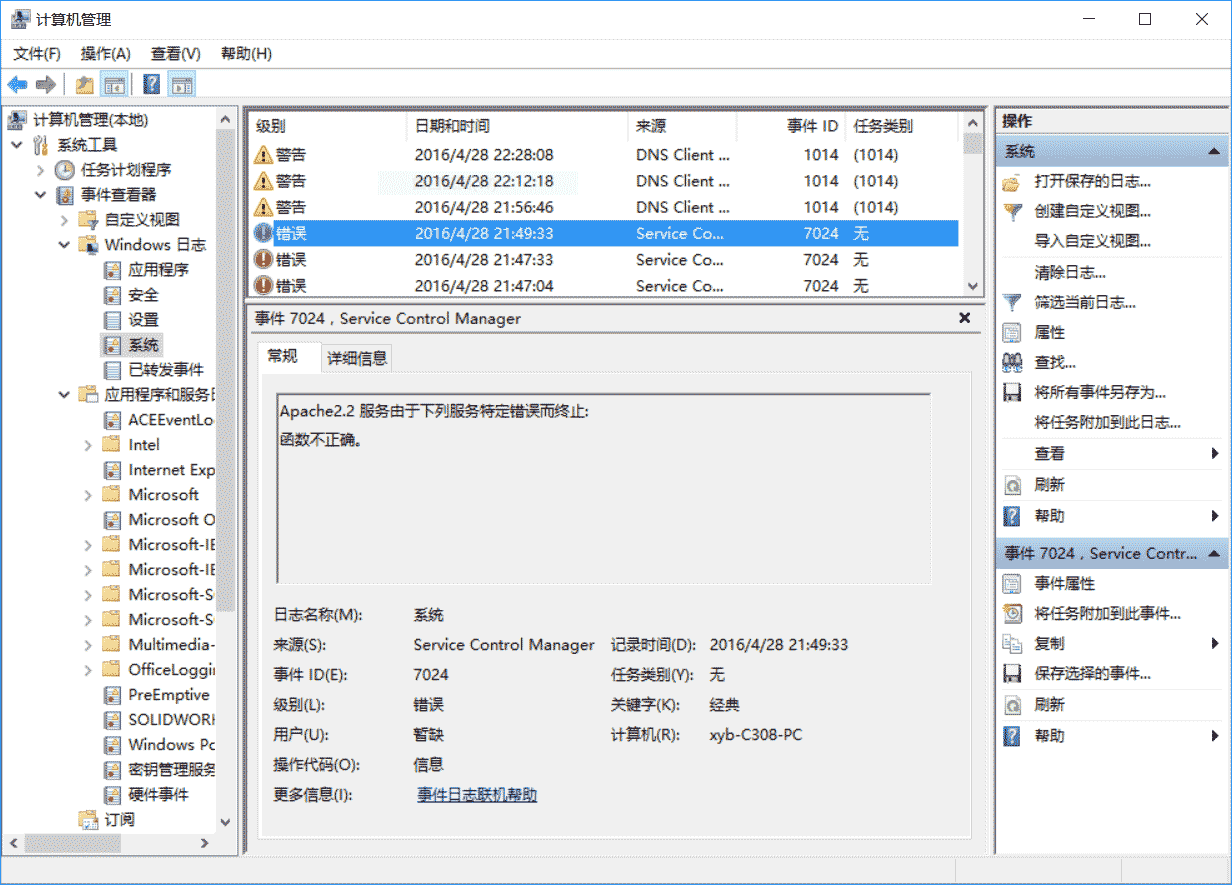

在126行左右,將CustomLog改為:Apache所在目錄/logs/ssl_request.log,這個不改的話也會錯。一般會出現如下錯誤:

Apache2.2服務由于下列服務特定錯誤而終止:函數不正確。
改成的效果:
<VirtualHost _default_:443>
SSLEngine on
ServerName localhost:443
SSLCertificateFile C:/Users/myPC/Downloads/httpd-2.2.31-x86-r3/Apache22/conf/ssl/server.crt
SSLCertificateKeyFile C:/Users/myPC/Downloads/httpd-2.2.31-x86-r3/Apache22/conf/ssl/server.key
DocumentRoot F:/
# openssl req -new > server.csr
# openssl rsa -in privkey.pem -out server.key
# openssl x509 -in server.csr -out server.crt -req -signkey server.key -days 2048
<FilesMatch "\.(cgi|shtml|phtml|php)$">
SSLOptions +StdEnvVars
</FilesMatch>
<Directory "/Apache22/cgi-bin">
SSLOptions +StdEnvVars
</Directory>
BrowserMatch "MSIE [2-5]" \
nokeepalive ssl-unclean-shutdown \
downgrade-1.0 force-response-1.0
CustomLog "C:/Users/myPC/Downloads/httpd-2.2.31-x86-r3/Apache22/logs/ssl_request.log" \
"%t %h %{SSL_PROTOCOL}x %{SSL_CIPHER}x \"%r\" %b"
</virtualhost>
主要改上文四處地方
在130行和152行還有另外兩個VirtualHost,均需修改上述的四個選項
例:
130行
<VirtualHost *:443>
SSLEngine on
ServerName serverone.tld:443
SSLCertificateFile C:/Users/myPC/Downloads/httpd-2.2.31-x86-r3/Apache22/conf/ssl/serverone.crt
SSLCertificateKeyFile C:/Users/myPC/Downloads/httpd-2.2.31-x86-r3/Apache22/conf/ssl/serverone.key
DocumentRoot F:/
# openssl req -new > serverone.csr
# openssl rsa -in privkey.pem -out serverone.key
# openssl x509 -in serverone.csr -out serverone.crt -req -signkey serverone.key -days 2048
<FilesMatch "\.(cgi|shtml|phtml|php)$">
SSLOptions +StdEnvVars
</FilesMatch>
<Directory "/Apache22/cgi-bin">
SSLOptions +StdEnvVars
</Directory>
BrowserMatch "MSIE [2-5]" \
nokeepalive ssl-unclean-shutdown \
downgrade-1.0 force-response-1.0
CustomLog "C:/Users/myPC/Downloads/httpd-2.2.31-x86-r3/Apache22/logs/ssl_request.log" \
"%t %h %{SSL_PROTOCOL}x %{SSL_CIPHER}x \"%r\" %b" env=HTTPS
</virtualhost>
第152行
<VirtualHost *:443>
SSLEngine on
ServerName servertwo.tld:443
SSLCertificateFile C:/Users/myPC/Downloads/httpd-2.2.31-x86-r3/Apache22/conf/ssl/servertwo.crt
SSLCertificateKeyFile C:/Users/myPC/Downloads/httpd-2.2.31-x86-r3/Apache22/conf/ssl/servertwo.key
DocumentRoot F:/
# openssl req -new > servertwo.csr
# openssl rsa -in privkey.pem -out servertwo.key
# openssl x509 -in servertwo.csr -out servertwo.crt -req -signkey servertwo.key -days 2048
<FilesMatch "\.(cgi|shtml|phtml|php)$">
SSLOptions +StdEnvVars
</FilesMatch>
<Directory "/Apache22/cgi-bin">
SSLOptions +StdEnvVars
</Directory>
BrowserMatch "MSIE [2-5]" \
nokeepalive ssl-unclean-shutdown \
downgrade-1.0 force-response-1.0
CustomLog "C:/Users/myPC/Downloads/httpd-2.2.31-x86-r3/Apache22/ssl_request.log" \
"%t %h %{SSL_PROTOCOL}x %{SSL_CIPHER}x \"%r\" %b"
</virtualhost>
上述的兩個VirtualHost均需修改四處
這樣,Apache就算配置完了,如果還有問題,可能還需配置./conf/extra/httpd-ssl.conf,配置方法和配置VirtualHost的相似
4,啟動Apache HTTP Server
使用Windows命令行以管理員身份進入Apache程序的文件夾下的bin文件夾,輸入httpd -k install,完成Apache服務的安裝。

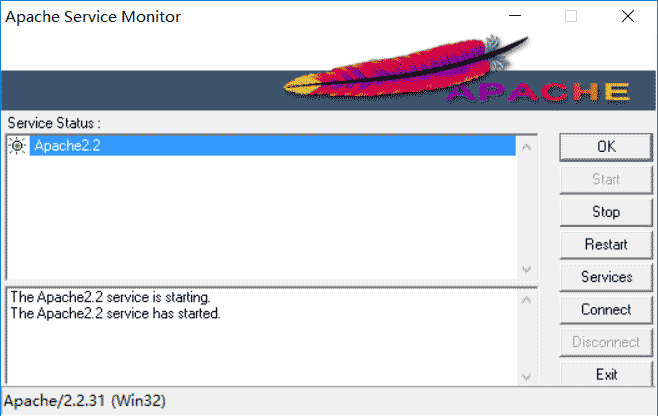

然后雙擊bin目錄下的ApacheMonitor.exe,點擊右邊的start啟動服務器,如果正常,如下圖:

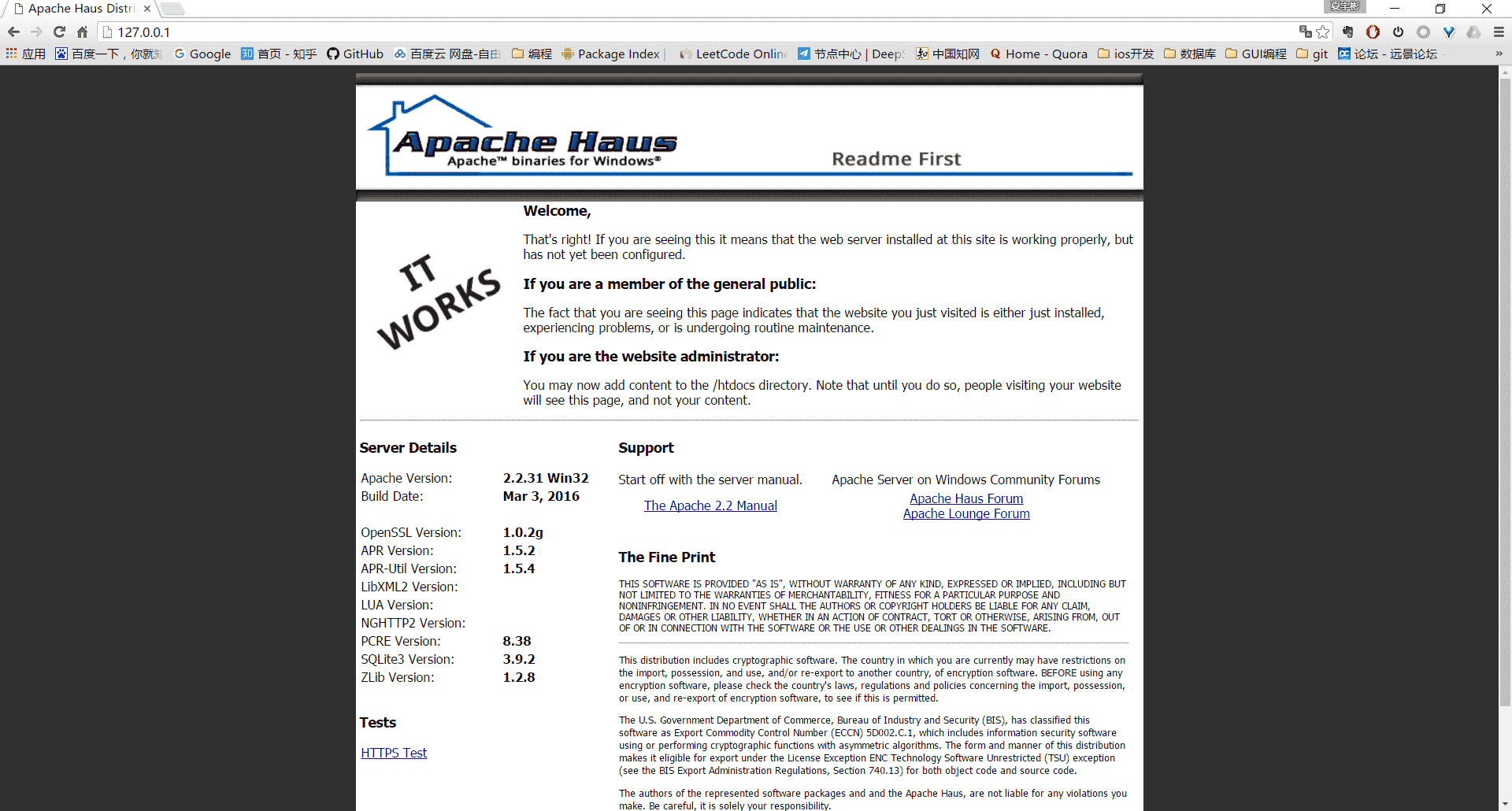

測試一下:

5,其它
卸載Apache HTTP Server:
管理員身份進入bin目錄,使用httpd -k uninstall 移除服務
使用httpd -w -n "Apache2" -k start命令啟動服務器 可以顯示啟動過程中的日志,便于分析錯誤。
