Docker+keepalived+nginx實現主從熱備的方法示例
為解決單點故障，我們需要配置主從熱備方案，服務器數量有限，故使用Docker模擬安裝配置。
本次配置默認已經安裝了Docker。
配置環境:centos7 64位
docker版本:Docker version 17.12.1-ce, build 7390fc6
1，拉取centos7鏡像
docker pull centos:7
2,創建容器
docker run -it -d --name centos1 -d centos:7
3,進入容器centos1
docker exec -it centos1 bash
4,安裝常用工具
yum updateyum install -y vimyum install -y wgetyum install -y gcc-c++ yum install -y pcre pcre-devel yum install -y zlib zlib-devel yum install -y openssl openssl--develyum install -y popt-develyum install -y initscripts yum install -y net-tools
5，將容器打包成新的鏡像，以后直接以該鏡像創建容器
docker commit -a 'cfh' -m 'centos with common tools' centos1 centos_base
6,刪除之前創建的centos1 容器，重新以基礎鏡像創建容器，安裝keepalived+nginx
docker rm -f centos1 #容器內需要使用systemctl服務，需要加上/usr/sbin/init docker run -it --name centos_temp -d --privileged centos_base /usr/sbin/init docker exec -it centos_temp bash 作者：江湖救急 鏈接：https://juejin.im/post/5dc517386fb9a04a9272110b 來源：掘金 著作權歸作者所有。商業轉載請聯系作者獲得授權，非商業轉載請注明出處。
7,安裝nginx
#使用yum安裝nginx需要包括Nginx的庫，安裝Nginx的庫 rpm -Uvh http://nginx.org/packages/centos/7/noarch/RPMS/nginx-release-centos-7-0.el7.ngx.noarch.rpm # 使用下面命令安裝nginx yum install -y nginx #啟動nginx systemctl start nginx.service #查看是否啟動成功,出現nginx歡迎界面表示安裝成功 curl 172.17.0.2
8,安裝keepalived
1.下載keepalived wget http://www.keepalived.org/software/keepalived-1.2.18.tar.gz
2.解壓安裝：tar -zxvf keepalived-1.2.18.tar.gz -C /usr/local/
3.下載插件openssl yum install -y openssl openssl-devel（需要安裝一個軟件包）
4.開始編譯keepalivedcd /usr/local/keepalived-1.2.18/ && ./configure --prefix=/usr/local/keepalived
5.make一下 make && make install
9,將keepalived 安裝成系統服務
mkdir /etc/keepalivedcp /usr/local/keepalived/etc/keepalived/keepalived.conf /etc/keepalived/然后復制keepalived腳本文件：cp /usr/local/keepalived/etc/rc.d/init.d/keepalived /etc/init.d/cp /usr/local/keepalived/etc/sysconfig/keepalived /etc/sysconfig/ln -s /usr/local/sbin/keepalived /usr/sbin/可以設置開機啟動：chkconfig keepalived on，到此我們安裝完畢! #若啟動報錯，則執行下面命令 cd /usr/sbin/ rm -f keepalived cp /usr/local/keepalived/sbin/keepalived /usr/sbin/ #常用命令 systemctl daemon-reload 重新加載systemctl enable keepalived.service 設置開機自動啟動systemctl disable keepalived.service 取消開機自動啟動systemctl start keepalived.service 啟動systemctl stop keepalived.service停止systemctl status keepalived.service 查看服務狀態
10,修改/etc/keepalived/keepalived.conf文件
#備份配置文件
cp /etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf.backup
rm -f keepalived.conf
vim keepalived.conf
#配置文件如下
vrrp_script chk_nginx {
script "/etc/keepalived/nginx_check.sh"
interval 2
weight -20
}
vrrp_instance VI_1 {
state MASTER
interface eth0
virtual_router_id 121
mcast_src_ip 172.17.0.6
priority 100
nopreempt
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
track_script {
chk_nginx
}
virtual_ipaddress {
172.17.0.100
}
}
11,添加心跳檢測文件
vim nginx_check.sh
#以下是腳本內容
#!/bin/bash
A=`ps -C nginx –no-header |wc -l`
if [ $A -eq 0 ];then
/usr/local/nginx/sbin/nginx
sleep 2
if [ `ps -C nginx --no-header |wc -l` -eq 0 ];then
killall keepalived
fi
fi
12,給腳本賦予執行權限
chmod +x nginx_check.sh
13,設置開機啟動
systemctl enable keepalived.service #開啟keepalived systemctl start keepalived.service
14,檢測虛擬IP是否成功,在宿主機里面執行下面命令，如果出現nginx歡迎界面表示成功
curl 172.17.0.100
15，將centos_temp 容器重新打包成鏡像，然后利用這個新鏡像再創建兩個容器，實現熱備效果
docker commit -a 'cfh' -m 'centos with keepalived nginx' centos_temp centos_kn
16,刪除所有容器
docker rm -f `docker ps -a -q`
17，用centos_kn 鏡像創建主服務器容器
docker run --privileged -tid --name centos_master --restart=always centos_kn /usr/sbin/init docker exec -it centos_master bash

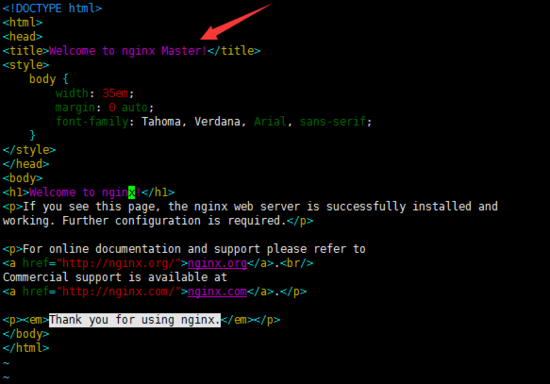

18，修改centos_master里面nginx 歡迎頁,
vim /usr/share/nginx/html/index.html
19,創建從服務器容器
docker run --privileged -tid --name centos_slave --restart=always centos_kn /usr/sbin/init
docker exec -it centos_slave bash
#修改keepalived.conf 配置文件,主要是state和priority兩個參數的調整，其中master節點的priority值一定要比slave大才行
vrrp_script chk_nginx {
script "/etc/keepalived/nginx_check.sh"
interval 2
weight -20
}
vrrp_instance VI_1 {
state SLAVE
interface eth0
virtual_router_id 121
mcast_src_ip 172.17.0.6
priority 80
nopreempt
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
track_script {
chk_nginx
}
virtual_ipaddress {
172.17.0.100
}
}
20,修改完成之后重新加載
systemctl daemon-reload systemctl restart keepalived.service

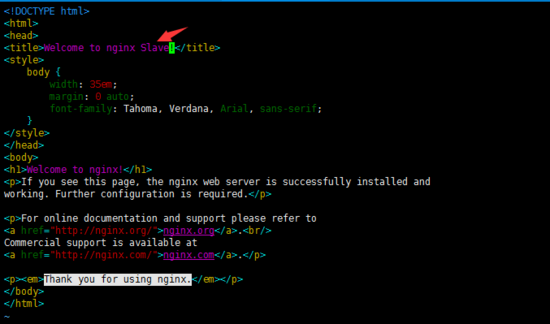

21,修改nginx歡迎頁（若nginx沒啟動則執行 systemctl start nginx.service）
vim /usr/share/nginx/html/index.html
22,測試
A> 分別在宿主機，centos_master,centos_slave中進行一下命令測試,如果顯示都為Master的歡迎頁面，說明配置成功1/3
curl 172.17.0.100
B> 此時停止centos_master容器( docker stop centos_master )，保留centos_slave容器，執行以下命令,若切換到Slave頁面，則說明keepalived配置成功2/3
curl 172.17.0.100
C> 重啟centos_master 容器，此時執行以下命令,看是從Slave切換到了Master,如果切換成功，說明我們配置到此成功了。
curl 172.17.0.100
說明，測試過程中，重啟容器之后，nginx沒有啟動，需要進入容器啟動一下，不然訪問不到Master頁面了，但是可以Ping通。
執行下面命令，配置nginx隨機啟動,這樣不用每次重啟容器還需要手動啟動nginx
chkconfig nginx on
以上就是整個配置過程，希望對大家的學習有所幫助，也希望大家多多支持本站。
