深入淺析Docker容器中的Patroni

發布日期：2022-01-29 11:23 | 文章來源：源碼中國

上一篇文章向大家介紹了Repmgr的搭建過程，實現了自動切換，今天將向大家介紹，如何搭建容器下的Patroni集群環境，Patroni作為開箱即用PG高可用工具，越來越多的被各個廠商用于云環境下使用。

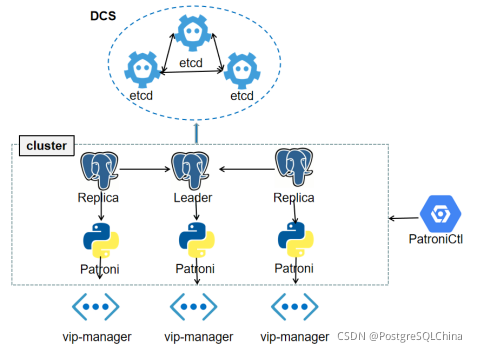

patroni基本架構如圖所示：

etcd作為分布式注冊中心、進行集群選主工作；vip-manager為主節點設置漂移IP；patroni負責引導集群的創建、運行和管理工作，并可以使用patronictl來進行終端訪問。

具體流程：
1、首先啟動etcd集群，本例中etcd數量為3個。
2、檢測etcd集群狀態健康后，啟動patroni并競爭選主，其他跟隨節點進行數據同步過程。
3、啟動vip-manager，通過訪問etcd集群中/ S E R V I C E N A M E / {SERVICE_NAME}/ SERVICEN​AME/{CLUSTER_NAME}/leader鍵中的具體值，判斷當前節點是否為主節點ip，如果是則為該節點設置vip，提供對外讀寫服務。
注：建議真實環境下將etcd部署到獨立容器上，對外提供服務。

創建鏡像

文件結構

其中Dockerfile為鏡像主文件，docker服務通過該文件在本地倉庫創建鏡像；entrypoint.sh為容器入口文件，負責業務邏輯的處理；function為執行業務方法的入口文件，負責啟動etcd，監控etcd集群狀態、啟動patroni和vip-manager；generatefile為整個容器生成對應的配置文件，包括etcd、patroni及vip-mananger。

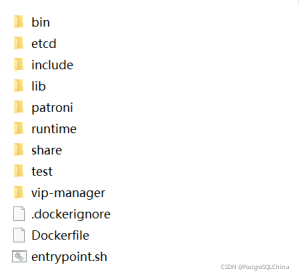

目錄結構大致如圖所示：

注：數據庫安裝包和patroni安裝包請自行構建。

DockerFile

FROM centos:7
MAINTAINER wangzhibin <wangzhibin>
ENV USER="postgresql" \
    PASSWORD=123456 \
    GROUP=postgresql

RUN useradd ${USER} \
       && chown -R ${USER}:${GROUP} /home/${USER} \
       && yum -y update && yum install -y iptables sudo net-tools iproute  openssh-server openssh-clients which vim sudo crontabs
#安裝etcd
COPY etcd/etcd /usr/sbin
COPY etcd/etcdctl /usr/sbin
#安裝database
COPY lib/ /home/${USER}/lib
COPY include/ /home/${USER}/include
COPY share/ /home/${USER}/share
COPY bin/ /home/${USER}/bin/
COPY patroni/ /home/${USER}/patroni
#安裝vip-manager
COPY vip-manager/vip-manager /usr/sbin
#安裝執行腳本
COPY runtime/ /home/${USER}/runtime
COPY entrypoint.sh /sbin/entrypoint.sh
#設置環境變量
ENV LD_LIBRARY_PATH /home/${USER}/lib
ENV PATH /home/${USER}/bin:$PATH
ENV ETCDCTL_API=3
#安裝Patroni
RUN yum -y install epel-release python-devel  && yum -y install python-pip \
    && pip install /home/${USER}/patroni/1/pip-20.3.3.tar.gz \
    && pip install /home/${USER}/patroni/1/psycopg2-2.8.6-cp27-cp27mu-linux_x86_64.whl \
    && pip install --no-index --find-links=/home/${USER}/patroni/2/ -r /home/${USER}/patroni/2/requirements.txt \
    && pip install /home/${USER}/patroni/3/patroni-2.0.1-py2-none-any.whl
#修改執行權限
RUN chmod 755 /sbin/entrypoint.sh \
&& mkdir /home/${USER}/etcddata \
&& chown -R ${USER}:${GROUP} /home/${USER} \
&& echo 'root:root123456' | chpasswd \
&& chmod 755 /sbin/etcd \
&& chmod 755 /sbin/etcdctl \
&& chmod 755 /sbin/vip-manager
#設置Sudo
RUN chmod 777 /etc/sudoers \
       && sed -i '/## Allow root to run any commands anywhere/a '${USER}' ALL=(ALL) NOPASSWD:ALL' /etc/sudoers \
       && chmod 440 /etc/sudoers
#切換用戶
USER ${USER}
#切換工作目錄
WORKDIR /home/${USER}
#啟動入口程序
CMD ["/bin/bash", "/sbin/entrypoint.sh"]

entrypoint.sh

#!/bin/bash
set -e
# shellcheck source=runtime/functions
source "/home/${USER}/runtime/function"
configure_patroni

function

#!/bin/bash
set -e
source /home/${USER}/runtime/env-defaults
source /home/${USER}/runtime/generatefile
PG_DATADIR=/home/${USER}/pgdata
PG_BINDIR=/home/${USER}/bin
configure_patroni()
{
    #生成配置文件
    generate_etcd_conf
    generate_patroni_conf
    generate_vip_conf
    #啟動etcd
    etcdcount=${ETCD_COUNT}
    count=0
    ip_temp=""
    array=(${HOSTLIST//,/ })
    for host in ${array[@]}
    do
        ip_temp+="http://${host}:2380,"
    done
    etcd --config-file=/home/${USER}/etcd.yml >/home/${USER}/etcddata/etcd.log 2>&1 &
    while [ $count -lt $etcdcount ]
    do
      line=(`etcdctl --endpoints=${ip_temp%?} endpoint health -w json`)
      count=`echo $line | awk -F"\"health\":true" '{print NF-1}'`
      echo "waiting etcd cluster"
      sleep 5
    done
    #啟動patroni
    patroni /home/${USER}/postgresql.yml >  /home/${USER}/patroni/patroni.log 2>&1 &
    #啟動vip-manager
    sudo vip-manager --config /home/${USER}/vip.yml
}

generatefile

#!/bin/bash
set -e
HOSTNAME="`hostname`"
hostip=`ping ${HOSTNAME} -c 1 -w 1 | sed '1{s/[^(]*(//;s/).*//;q}'`
#generate etcd
generate_etcd_conf()
{
    echo "name : ${HOSTNAME}" >> /home/${USER}/etcd.yml
    echo "data-dir: /home/${USER}/etcddata" >> /home/${USER}/etcd.yml
    echo "listen-client-urls: http://0.0.0.0:2379" >> /home/${USER}/etcd.yml
    echo "advertise-client-urls: http://${hostip}:2379" >> /home/${USER}/etcd.yml
    echo "listen-peer-urls: http://0.0.0.0:2380" >> /home/${USER}/etcd.yml
    echo "initial-advertise-peer-urls: http://${hostip}:2380" >> /home/${USER}/etcd.yml
    ip_temp="initial-cluster: "
    array=(${HOSTLIST//,/ })
    for host in ${array[@]}
    do
    	ip_temp+="${host}=http://${host}:2380,"
    done
    echo  ${ip_temp%?} >> /home/${USER}/etcd.yml
    echo "initial-cluster-token: etcd-cluster-token" >> /home/${USER}/etcd.yml
    echo "initial-cluster-state: new" >> /home/${USER}/etcd.yml
}
#generate patroni
generate_patroni_conf()
{
  echo "scope: ${CLUSTER_NAME}" >> /home/${USER}/postgresql.yml
  echo "namespace: /${SERVICE_NAME}/ " >> /home/${USER}/postgresql.yml
  echo "name: ${HOSTNAME} " >> /home/${USER}/postgresql.yml
  echo "restapi: " >> /home/${USER}/postgresql.yml
  echo "  listen: ${hostip}:8008 " >> /home/${USER}/postgresql.yml
  echo "  connect_address: ${hostip}:8008 " >> /home/${USER}/postgresql.yml
  echo "etcd: " >> /home/${USER}/postgresql.yml
  echo "  host: ${hostip}:2379 " >> /home/${USER}/postgresql.yml
  echo "  username: ${ETCD_USER} " >>  /home/${USER}/postgresql.yml
  echo "  password: ${ETCD_PASSWD} " >> /home/${USER}/postgresql.yml
  echo "bootstrap: " >> /home/${USER}/postgresql.yml
  echo "  dcs: " >> /home/${USER}/postgresql.yml
  echo "    ttl: 30 " >> /home/${USER}/postgresql.yml
  echo "    loop_wait: 10  " >> /home/${USER}/postgresql.yml
  echo "    retry_timeout: 10   " >> /home/${USER}/postgresql.yml
  echo "    maximum_lag_on_failover: 1048576 " >> /home/${USER}/postgresql.yml
  echo "    postgresql: " >>  /home/${USER}/postgresql.yml
  echo "      use_pg_rewind: true  " >>  /home/${USER}/postgresql.yml
  echo "      use_slots: true  " >>  /home/${USER}/postgresql.yml
  echo "      parameters:  " >>  /home/${USER}/postgresql.yml
  echo "  initdb:  " >>  /home/${USER}/postgresql.yml
  echo "  - encoding: UTF8  " >>  /home/${USER}/postgresql.yml
  echo "  - data-checksums  " >>  /home/${USER}/postgresql.yml
  echo "  pg_hba:   " >>  /home/${USER}/postgresql.yml
  echo "  - host replication ${USER} 0.0.0.0/0 md5  " >>  /home/${USER}/postgresql.yml
  echo "  - host all all 0.0.0.0/0 md5  " >>  /home/${USER}/postgresql.yml
  echo "postgresql:  " >>  /home/${USER}/postgresql.yml
  echo "  listen: 0.0.0.0:5432  " >>  /home/${USER}/postgresql.yml
  echo "  connect_address: ${hostip}:5432  " >>  /home/${USER}/postgresql.yml
  echo "  data_dir: ${PG_DATADIR}  " >>  /home/${USER}/postgresql.yml
  echo "  bin_dir: ${PG_BINDIR}  " >>  /home/${USER}/postgresql.yml
  echo "  pgpass: /tmp/pgpass  " >>  /home/${USER}/postgresql.yml
  echo "  authentication:  " >>  /home/${USER}/postgresql.yml
  echo "    replication:  " >>  /home/${USER}/postgresql.yml
  echo "      username: ${USER}  " >>  /home/${USER}/postgresql.yml
  echo "      password: ${PASSWD}  " >>  /home/${USER}/postgresql.yml
  echo "    superuser:  " >>  /home/${USER}/postgresql.yml
  echo "      username: ${USER}  " >>  /home/${USER}/postgresql.yml
  echo "      password: ${PASSWD}  " >>  /home/${USER}/postgresql.yml
  echo "    rewind:  " >>  /home/${USER}/postgresql.yml
  echo "      username: ${USER}  " >>  /home/${USER}/postgresql.yml
  echo "      password: ${PASSWD}  " >>  /home/${USER}/postgresql.yml
  echo "  parameters:  " >>  /home/${USER}/postgresql.yml
  echo "    unix_socket_directories: '.'  " >>  /home/${USER}/postgresql.yml
  echo "    wal_level: hot_standby  " >>  /home/${USER}/postgresql.yml
  echo "    max_wal_senders: 10  " >>  /home/${USER}/postgresql.yml
  echo "    max_replication_slots: 10  " >>  /home/${USER}/postgresql.yml
  echo "tags:  " >>  /home/${USER}/postgresql.yml
  echo "    nofailover: false  " >>  /home/${USER}/postgresql.yml
  echo "    noloadbalance: false  " >>  /home/${USER}/postgresql.yml
  echo "    clonefrom: false  " >>  /home/${USER}/postgresql.yml
  echo "    nosync: false  " >>  /home/${USER}/postgresql.yml
}
#........ 省略部分內容

構建鏡像

docker build -t patroni .

運行鏡像

運行容器節點1：
docker run --privileged --name patroni1 -itd --hostname patroni1 --net my_net3 --restart always --env ‘CLUSTER_NAME=patronicluster' --env ‘SERVICE_NAME=service' --env ‘ETCD_USER=etcduser' --env ‘ETCD_PASSWD=etcdpasswd' --env ‘PASSWD=zalando' --env ‘HOSTLIST=patroni1,patroni2,patroni3' --env ‘VIP=172.22.1.88' --env ‘NET_DEVICE=eth0' --env ‘ETCD_COUNT=3' patroni
運行容器節點2：
docker run --privileged --name patroni2 -itd --hostname patroni2 --net my_net3 --restart always --env ‘CLUSTER_NAME=patronicluster' --env ‘SERVICE_NAME=service' --env ‘ETCD_USER=etcduser' --env ‘ETCD_PASSWD=etcdpasswd' --env ‘PASSWD=zalando' --env ‘HOSTLIST=patroni1,patroni2,patroni3' --env ‘VIP=172.22.1.88' --env ‘NET_DEVICE=eth0' --env ‘ETCD_COUNT=3' patroni
運行容器節點3：
docker run --privileged --name patroni3 -itd --hostname patroni3 --net my_net3 --restart always --env ‘CLUSTER_NAME=patronicluster' --env ‘SERVICE_NAME=service' --env ‘ETCD_USER=etcduser' --env ‘ETCD_PASSWD=etcdpasswd' --env ‘PASSWD=zalando' --env ‘HOSTLIST=patroni1,patroni2,patroni3' --env ‘VIP=172.22.1.88' --env ‘NET_DEVICE=eth0' --env ‘ETCD_COUNT=3' patroni

總結

本操作過程僅限于試驗環境，為了演示etcd+patroni+vipmanager整體的容器化搭建。在真實環境下，etcd應該部署在不同容器下，形成獨立的分布式集群，并且PG的存儲應該映射到本地磁盤或網絡磁盤，另外容器集群的搭建盡量使用編排工具，例如docker-compose、docker-warm或者Kubernetes等。

附圖

etcd集群狀態如圖：

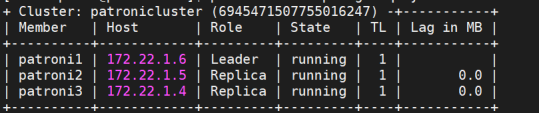

patroni集群狀態如圖：

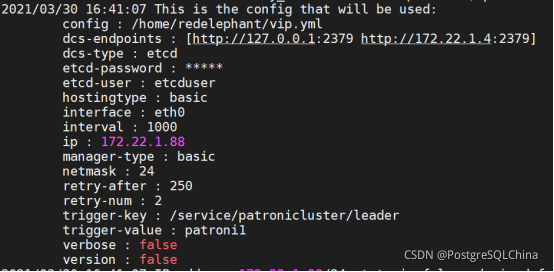

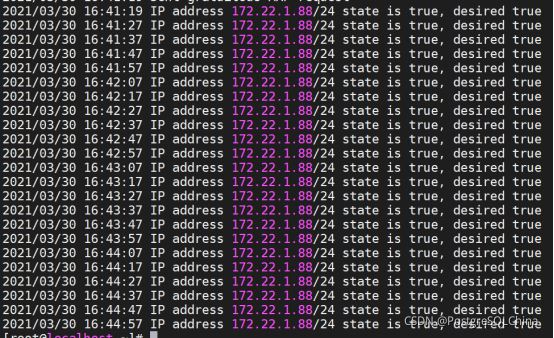

vip-manager狀態如圖：

到此這篇關于深入淺析Docker容器中的Patroni的文章就介紹到這了,更多相關Docker容器Patroni內容請搜索本站以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持本站！
