教你利用Nginx 服務搭建子域環境提升二維地圖加載性能的步驟
發布日期：2022-01-28 11:25 | 文章來源：gibhub
一、背景
最近有小伙伴遇到了大數據量地圖加載慢的情況，觀察iServer性能并未發揮到極致，所以通過搭建子域的方式成功實現了瀏覽速度的提升。
子域能對加載速度進行提升是因為瀏覽器對同一個域名服務的并發請求數量有限制，通過 Nginx 服務部署多個子域名，加大向 iServer 發送數據請求的并發量，從而達到提升加載速度的目的。
二、Nginx配置步驟
1.修改Nginx 配置nginx.conf，監控多個端口
server {
listen 8881;
listen 8882;
listen 8883;
listen 8884;
listen 8885;
server_name 127.0.0.1,172.16.15.124;
location / {
root html;
index index.html index.htm;
}
location /iserver {
proxy_pass http://172.16.15.124:8090;
proxy_redirect off;
proxy_buffering off;
proxy_set_header Host $host:$server_port;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
三、前端對接

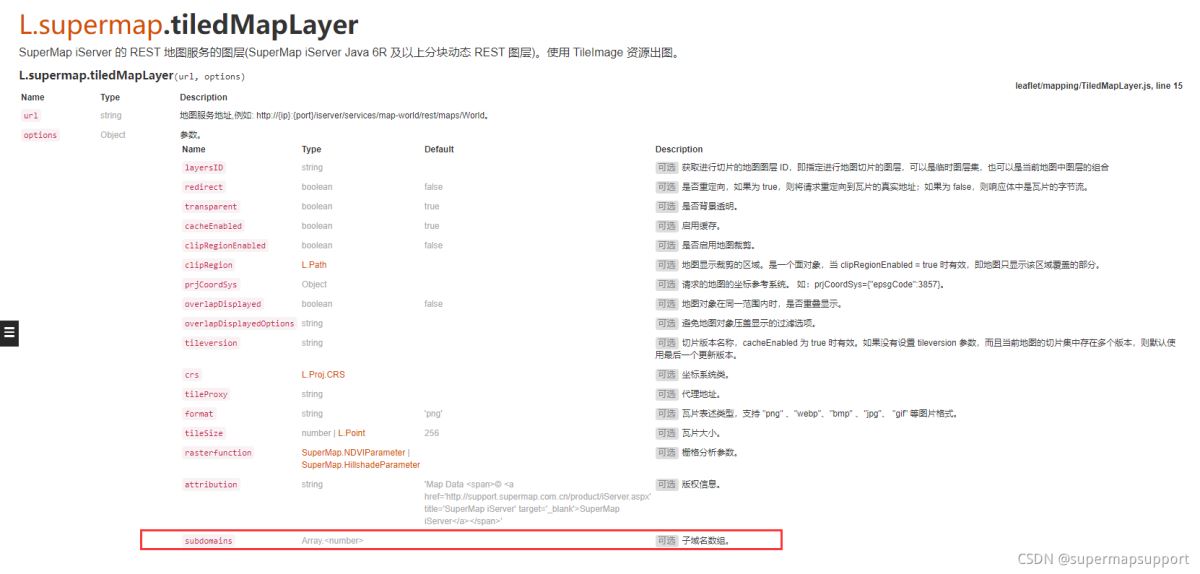

1.Leaflet使用subdomains參數，url中加入{s}占位符
代碼如下：
var map= "";
map = L.map('map', {
crs: L.CRS.EPSG4326,
center: [0, 0],
maxZoom: 18,
zoom: 1
});
L.supermap.tiledMapLayer("http://127.0.0.1:{s}/iserver/services/map-world/rest/maps/World",{subdomains:[8881,8882,8883,8884]}).addTo(map);

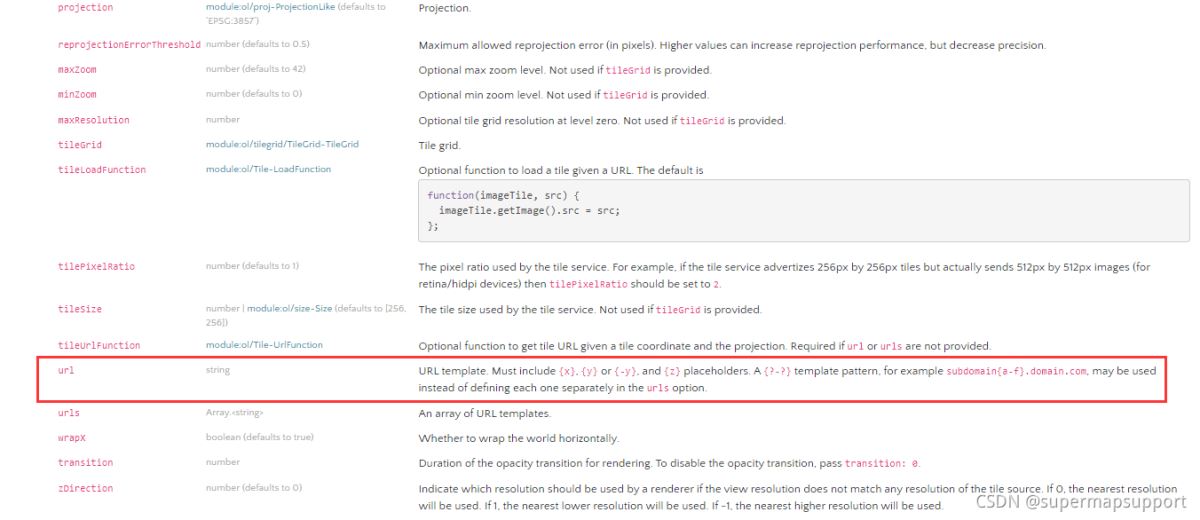

2.OpenLayer通過設置url參數{?-?}，并通過XYZ方式對接
代碼如下：
var map, url = "http://127.0.0.1:888{1-4}/iserver/services/map-world/rest/maps/World/zxyTileImage.png?z={z}&x={x}&y={y}";
map = new ol.Map({
target: 'map',
controls: ol.control.defaults({attributionOptions: {collapsed: false}})
.extend([new ol.supermap.control.Logo()]),
view: new ol.View({
center: [0, 0],
zoom: 2,
projection: 'EPSG:3857',
multiWorld: true
})
});
var layer = new ol.layer.Tile({
source: new ol.source.XYZ({
url: url,
wrapX: true
}),
projection: 'EPSG:3857'
});
map.addLayer(layer);
map.addControl(new ol.supermap.control.ScaleLine());

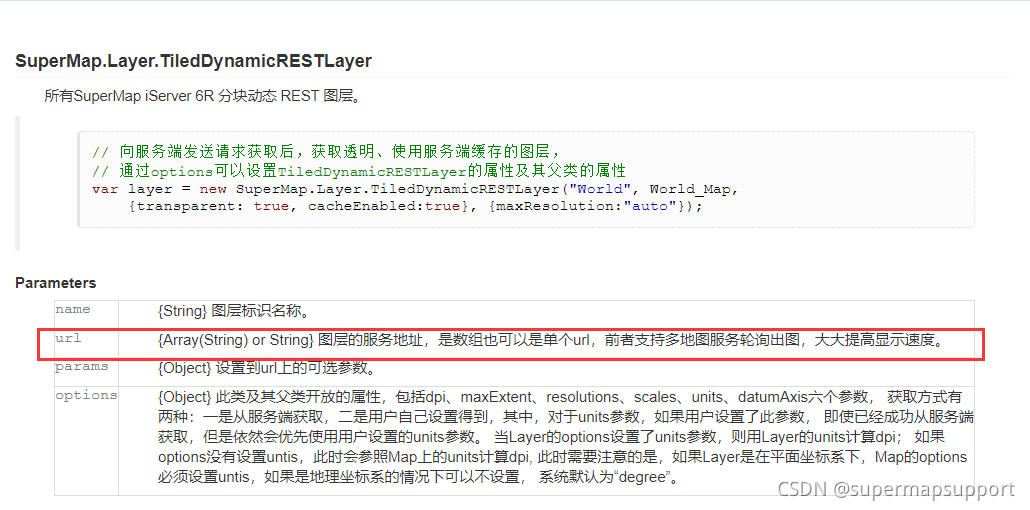

3.Classic直接傳遞url數組
代碼如下：
var map, layer,
host = window.isLocal ? window.server : "https://iserver.supermap.io",
url = host + "/iserver/services/map-world/rest/maps/World";
//初始化地圖
map = new SuperMap.Map("map", {
controls: [
new SuperMap.Control.Navigation(),
new SuperMap.Control.Zoom()]
});
map.addControl(new SuperMap.Control.MousePosition());
//初始化圖層
layer = new SuperMap.Layer.TiledDynamicRESTLayer("World", ["http://127.0.0.1:8881/iserver/services/map-world/rest/maps/World","http://127.0.0.1:8882/iserver/services/map-world/rest/maps/World","http://127.0.0.1:8883/iserver/services/map-world/rest/maps/World"], null, {maxResolution: "auto"});
//監聽圖層信息加載完成事件
layer.events.on({"layerInitialized": addLayer});
function addLayer() {
map.addLayer(layer);
//顯示地圖范圍
map.setCenter(new SuperMap.LonLat(0, 0), 0);

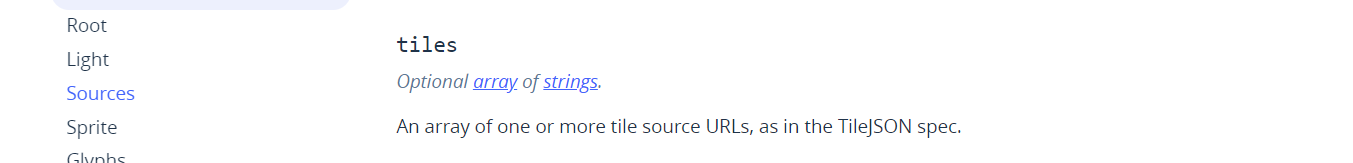

4.MapboxGL直接傳遞tiles參數
代碼如下：
var host = window.isLocal ? window.server : 'https://iserver.supermap.io';
var map = new mapboxgl.Map({
container: 'map', // container id
style: {
version: 8,
sources: {'raster-tiles': {
type: 'raster',
tileSize: 256,
tiles: ["http://127.0.0.1:8881/iserver/services/map-world/rest/maps/World","http://127.0.0.1:8882/iserver/services/map-world/rest/maps/World","http://127.0.0.1:8883/iserver/services/map-world/rest/maps/World"],
rasterSource: 'iserver'}
},
layers: [{
id: 'simple-tiles',
type: 'raster',
source: 'raster-tiles',
minzoom: 0,
maxzoom: 22}
]
},
crs: 'EPSG:4326', // 或者 mapboxgl.CRS.EPSG4326 或者 new mapboxgl.CRS('EPSG:4326',[-180,-90,180,90]);
center: [0, 0],
zoom: 2
});
到此這篇關于利用 Nginx 服務搭建子域環境提升二維地圖加載性能的文章就介紹到這了,更多相關Nginx 服務內容請搜索本站以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持本站！
