nginx實現動靜分離的方法示例
發布日期：2022-01-26 11:25 | 文章來源：腳本之家
本文主要介紹了nginx實現動靜分離的方法示例，具有一定的學習價值，具體如下
環境：
| 系統/主機名 | IP地址 | 服務 |
|---|---|---|
| Redhat8 ：server1 | 192.168.244.131 | nginx |
| Redhat8：server2 | 192.168.244.133 | lnmp |
| Content7：node3 | 192.168.244.142 | httpd |
在三臺主機上關閉防火墻
[root@server1 ~]# systemctl stop firewalld [root@server1 ~]# systemctl disable firewalld [root@server1 ~]# vim /etc/selinux/config SELINUX=disabled
在server1上部署nginx
[root@server1 opt]# cat nginx.sh
#!/bin/bash
if [ $UID -ne 0 ];then
echo "Please use administrator accou
查看端口
[root@server1 ~]# ss -antl State Recv-Q Send-Q Local Address:Port Peer Address:Port LISTEN 0 128 0.0.0.0:220.0.0.0:* LISTEN 0 128 0.0.0.0:800.0.0.0:* LISTEN 0 128 [::]:22 [::]:*

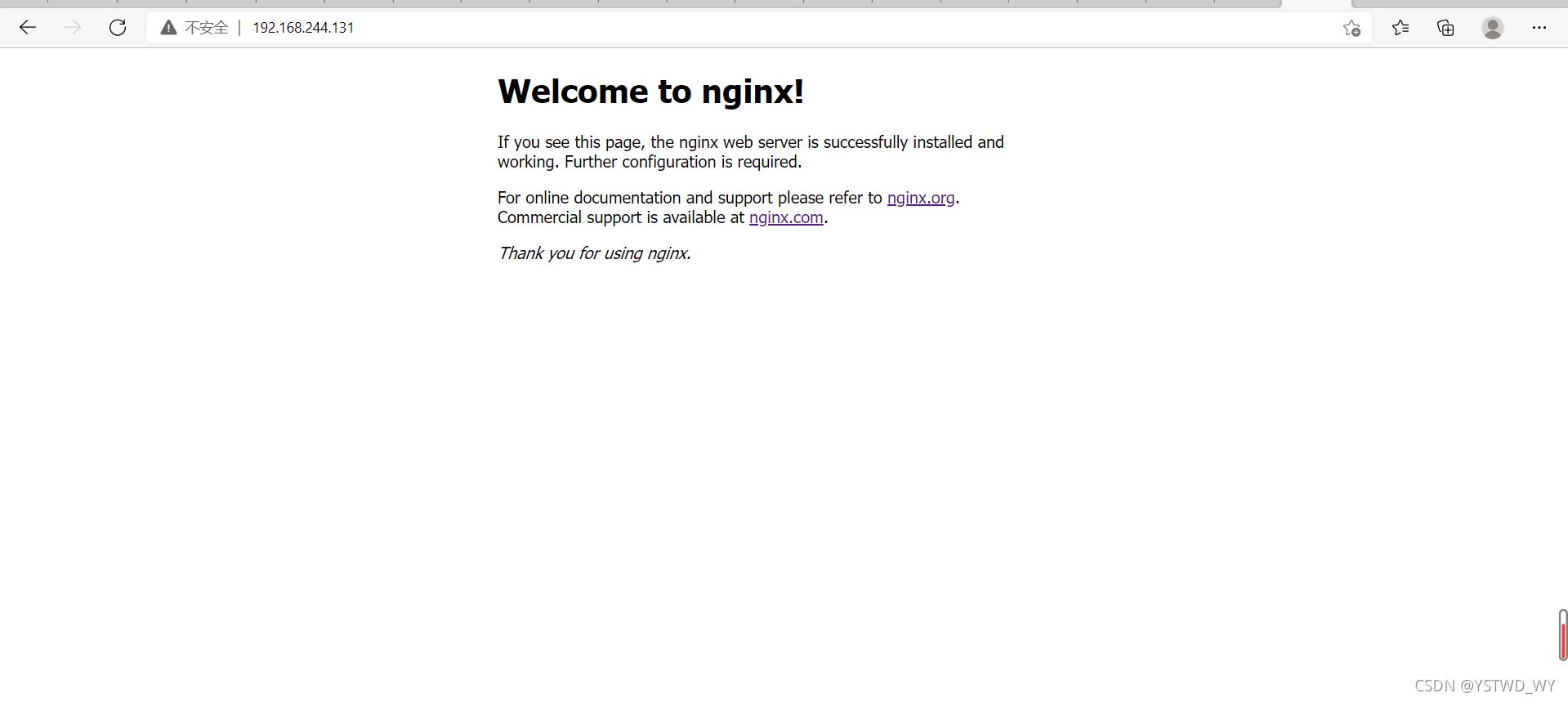

訪問頁面
在server上部署lnmp
部署nginx
[root@server2 lnmp]# cat install.sh
#!/bin/bash
if [ $UID -ne 0 ];then
echo "Please use administrator accou
部署mysql
[root@server2 lnmp]# cat mysql.sh
#!/bin/bash
if [ $UID -ne 0 ];then
echo "root?"
exit
fi
dir_a=/usr/local
dir_b=/opt/data
app_a=mysql-5.7.34-linux-glibc2.12-x86_64.tar.gz
app_b=mysql-5.7.34-linux-glibc2.12-x86_64
id mysql &>/dev/null
if [ $? -ne 0 ];then
useradd -r -M -s /sbin/nologin mysql
fi
yum -y install ncurses-compat-libs ncurses-devel openssl-devel openssl cmake mariadb-devel
if [ ! -d $dir_a/$app_b ];then
tar xf bag/$app_a -C $dir_a
fi
if [ ! -d $dir_a/mysql ];then
ln -sv $dir_a/$app_b $dir_a/mysql
fi
chown -R mysql:mysql $dir_a/mysql*
echo "export PATH=$dir_a/mysql/bin:\$PATH" > /etc/profile.d/mysql.sh
source /etc/profile.d/mysql.sh
if [ ! -d /$dir_b ];then
mkdir -p /$dir_b
chown -R mysql.mysql /$dir_b
fi
content=$(ls $dir_b | wc -l)
if [ $content -eq 0 ];then
mysqld --initialize-insecure --user mysql --datadir $dir_b
fi
cat > /etc/my.cnf <<EOF
[mysqld]
basedir = $dir_a/mysql
datadir = $dir_b
socket = /tmp/mysql.sock
port = 3306
pid-file = $dir_b/mysql.pid
user = mysql
skip-name-resolve
EOF
sed -ri "s#^(basedir=).*#\1$dir_a/mysql#g" $dir_a/mysql/support-files/mysql.server
sed -ri "s#^(datadir=).*#\1$dir_b#g" $dir_a/mysql/support-files/mysql.server
cat > /usr/lib/systemd/system/mysqld.service <<EOF
[Unit]
Description=mysql server daemon
After=network.target
[Service]
Type=forking
ExecStart=$dir_a/mysql/support-files/mysql.server start
ExecStop=$dir_a/mysql/support-files/mysql.server stop
ExecReload=/bin/kill -HUP $MAINPID
[Install]
WantedBy=multi-user.target
EOF
systemctl daemon-reload
systemctl enable --now mysqld
部署php
https://www.php.net/distributions/php-8.0.10.tar.xz
解壓
[root@server2 ~]# tar -xf php-8.0.10.tar.gz -C /usr/local/
安裝依賴包
[root@server2 ~]# wget http://mirrors.aliyun.com/repo/epel-7.repo [root@server1 ~]# yum -y install libxml2 libxml2-devel openssl openssl-devel bzip2 bzip2-devel libcurl libcurl-devel libicu-devel libjpeg libjpeg-devel libpng libpng-devel openldap-devel pcre-devel freetype freetype-devel gmp gmp-devel libmcrypt libmcrypt-devel readline readline-devel libxslt libxslt-devel mhash mhash-devel php-mysqlnd libsqlite3x-devel libzip-devel [root@server2 ~]# yum -y install http://mirror.centos.org/centos/8-stream/PowerTools/x86_64/os/Packages/oniguruma-devel-6.8.2-2.el8.x86_64.rpm
編譯安裝
[root@server2 ~]# cd /usr/local/php-8.0.10/ [root@server2 php-8.0.10]# ./configure --prefix=/usr/local/php8 --with-config-file-path=/etc --enable-fpm --disable-debug --disable-rpath --enable-shared --enable-soap --with-openssl --enable-bcmath --with-iconv --with-bz2 --enable-calendar --with-curl --enable-exif --enable-ftp --enable-gd --with-jpeg --with-zlib-dir --with-freetype --with-gettext --enable-mbstring --enable-pdo --with-mysqli=mysqlnd --with-pdo-mysql=mysqlnd --with-readline --enable-shmop --enable-simplexml --enable-sockets --with-zip --enable-mysqlnd-compression-support --with-pear --enable-pcntl --enable-posix ...... ...... ...... config.status: creating ext/phar/phar.phar.1 config.status: creating main/php_config.h config.status: executing default commands +--------------------------------------------------------------------+ | License: | | This software is subject to the PHP License, available in this | | distribution in the file LICENSE. By continuing this installation | | process, you are bound by the terms of this license agreement. | | If you do not agree with the terms of this license, you must abort | | the installation process at this point.| +--------------------------------------------------------------------+ Thank you for using PHP. [root@server2 php-8.0.10]# make ....... ....... ....... invertedregexiterator.inc pharcommand.inc phar.inc Build complete. Don't forget to run 'make test'. [root@server2 php-8.0.10]# make install ...... ...... /root/php-8.0.10/build/shtool install -c ext/phar/phar.phar /usr/local/php8/bin/phar.phar ln -s -f phar.phar /usr/local/php8/bin/phar Installing PDO headers: /usr/local/php8/include/php/ext/pdo/
配置php-fpm
[root@server2 php-8.0.10]# cp /etc/php.ini /opt/ [root@server2 php-8.0.10]# cp php.ini-production /etc/php.ini cp: overwrite '/etc/php.ini'? y [root@server2 php-8.0.10]# cp sapi/fpm/init.d.php-fpm /etc/init.d/php-fpm [root@server2 php-8.0.10]# chmod +x /etc/init.d/php-fpm [root@server2 php-8.0.10]# cd .. [root@server2 local]# cd php8/ [root@server2 php8]# cd etc/ [root@server2 etc]# cp php-fpm.conf.default php-fpm.conf [root@server2 etc]# cp php-fpm.d/www.conf.default php-fpm.d/www.conf [root@server2 etc]# cd php-fpm.d [root@server2 php-fpm.d]# ls www.conf www.conf.default
配置環境變量
[root@server2 ~]# echo 'export PATH=/usr/local/php8/bin:$PATH' > /etc/profile.d/php.sh [root@server2 ~]# cat /etc/profile.d/php.sh export PATH=/usr/local/php8/bin:$PATH [root@server2 ~]# source /etc/profile.d/php.sh [root@server2 ~]# which php /usr/local/php8/bin/php
編寫service文件
[root@server2 ~]# cat /usr/lib/systemd/system/php-fpm.service [Unit] Description=php-fpm server daemon After=network.target [Service] Type=forking ExecStart=/etc/init.d/php-fpm start ExecStop=/etc/init.d/php-fpm stop ExecReload=/bin/kill -HUP $MAINPID [Install] [root@server2 ]# systemctl daemon-reload
啟動php
[root@server2 ~]# systemctl start php-fpm [root@server2 ~]# ss -antl State Recv-Q Send-Q Local Address:Port Peer Address:Port LISTEN 0 128 127.0.0.1:9000 0.0.0.0:* LISTEN 0 128 0.0.0.0:800.0.0.0:* LISTEN 0 128 0.0.0.0:220.0.0.0:* LISTEN 0 80 *:3306 *:* LISTEN 0 128 [::]:22 [::]:*
在nginx.conf里配置虛擬主機
[root@server2 ~]# cd /usr/local/nginx/html/
[root@server2 html]# ls
50x.html index.html
[root@server2 html]# vim index.php
[root@server2 html]# cat index.php
<?php
phpinfo();
?>
[root@server2 conf]# pwd
/usr/local/nginx/conf
[root@server2 conf]# vim nginx.conf
........
http {
include mime.types;
default_type application/octet-stream;
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_age

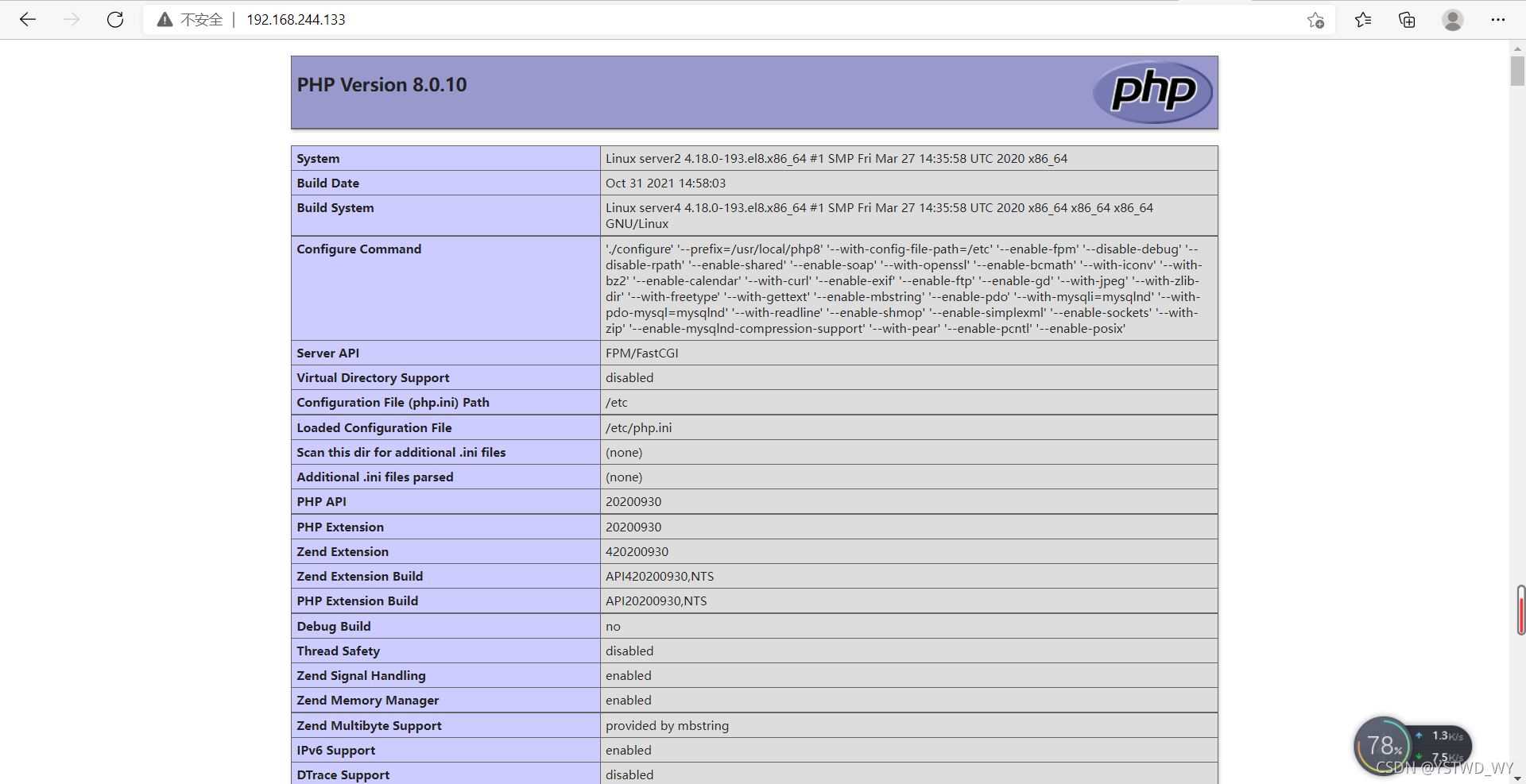

訪問
node3部署httpd
[root@node3 ~]# yum -y install httpd
啟動
[root@node3 ~]# systemctl start httpd [root@node3 ~]# ss -antl State Recv-Q Send-Q Local Address:Port Peer Address:Port LISTEN 0 128 *:22 *:* LISTEN 0 100 127.0.0.1:25 *:* LISTEN 0 128 :::80 :::* LISTEN 0 128 :::22 :::* LISTEN 0 100 ::1:25 :::*

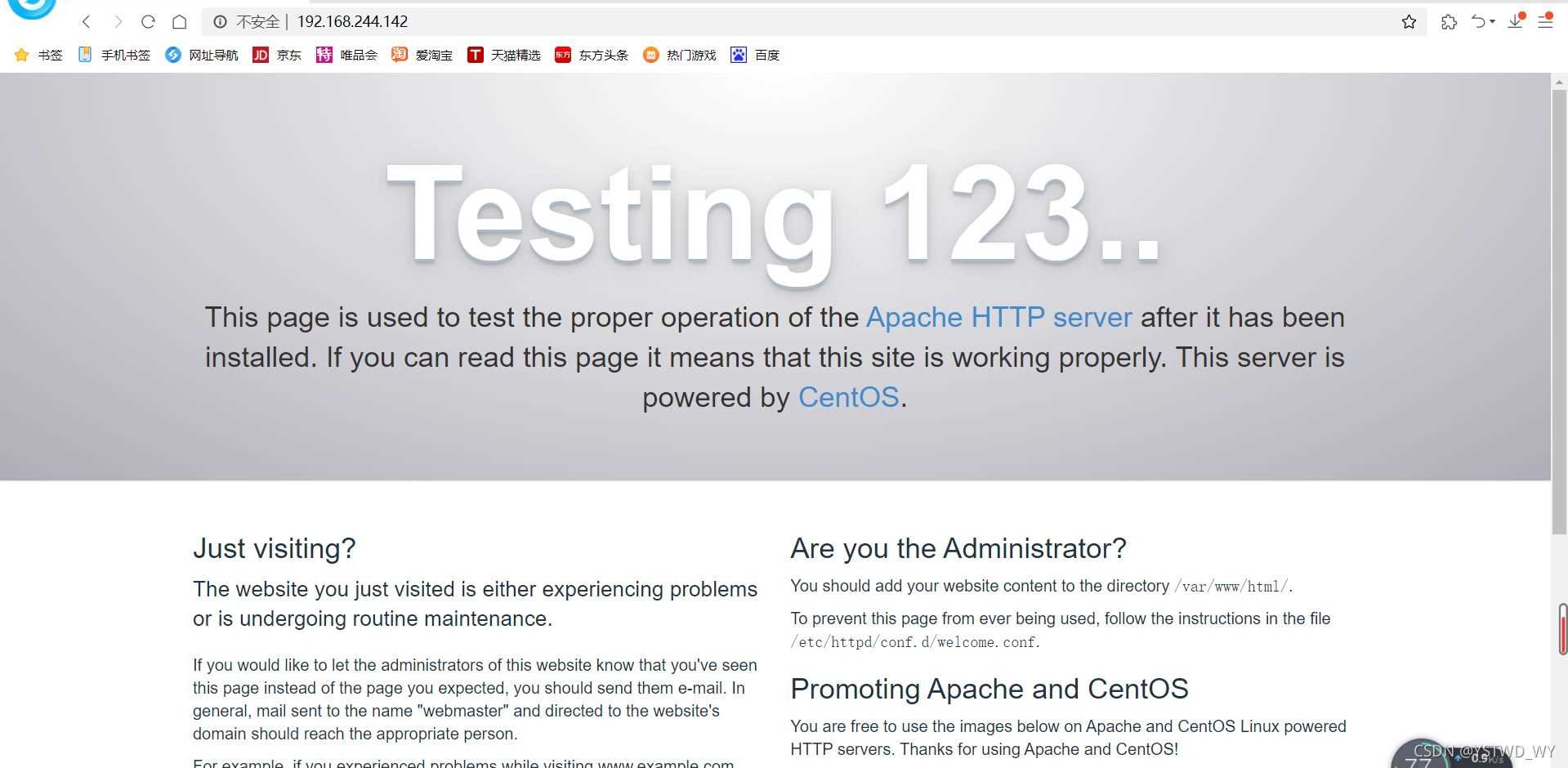

訪問
實現分離部署
在server1上的nginx.conf上配置
[root@server1 ~]# cat /usr/local/nginx/conf/nginx.conf
#user nobody;
worker_processes 1;
#error_log logs/error.log;
#error_log logs/error.log notice;
#error_log logs/error.log info;
#pid logs/nginx.pid;
events {
worker_connections 1024;
}
http {
include mime.types;
default_type application/octet-stream;
#log_format main '$remote_addr - $remote_user [$time_local] "$request" '
# '$status $body_bytes_sent "$http_referer" '
# '"$http_user_age

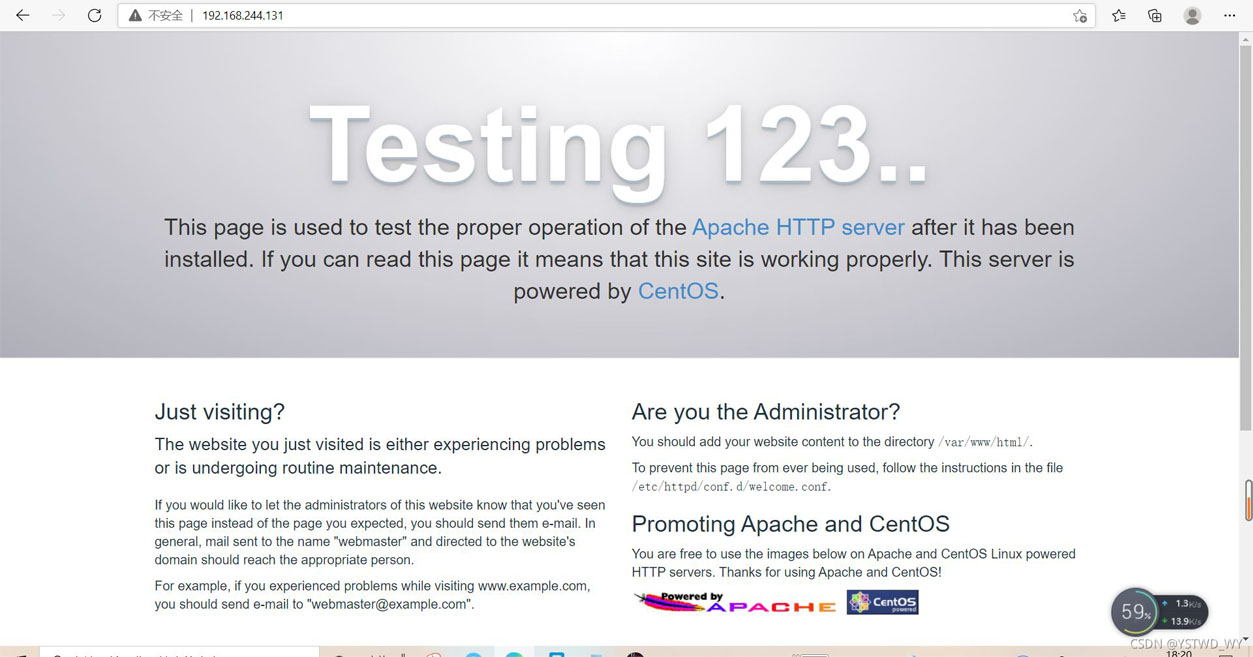

訪問 192.168.244.131

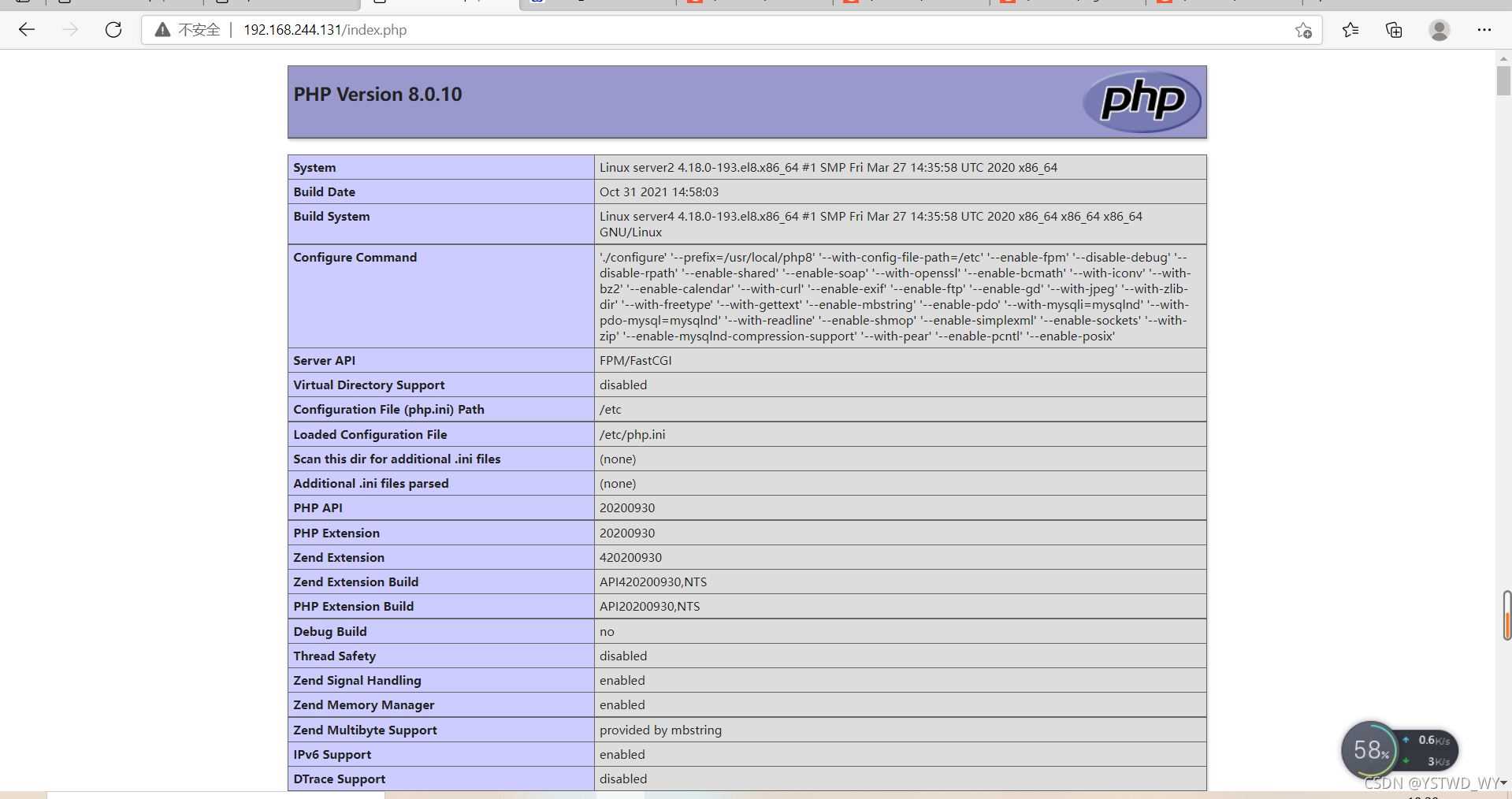

在訪問 192.168.244.131/index.php
到此這篇關于nginx實現動靜分離的方法示例的文章就介紹到這了,更多相關nginx 動靜分離內容請搜索本站以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持本站！
