1、組件及實現的功能

Keepalived：實現對Haproxy服務的高可用，并采用雙主模型配置;

Haproxy：實現對Nginx的負載均衡和讀寫分離;

Nginx：實現對HTTP請求的高速處理;

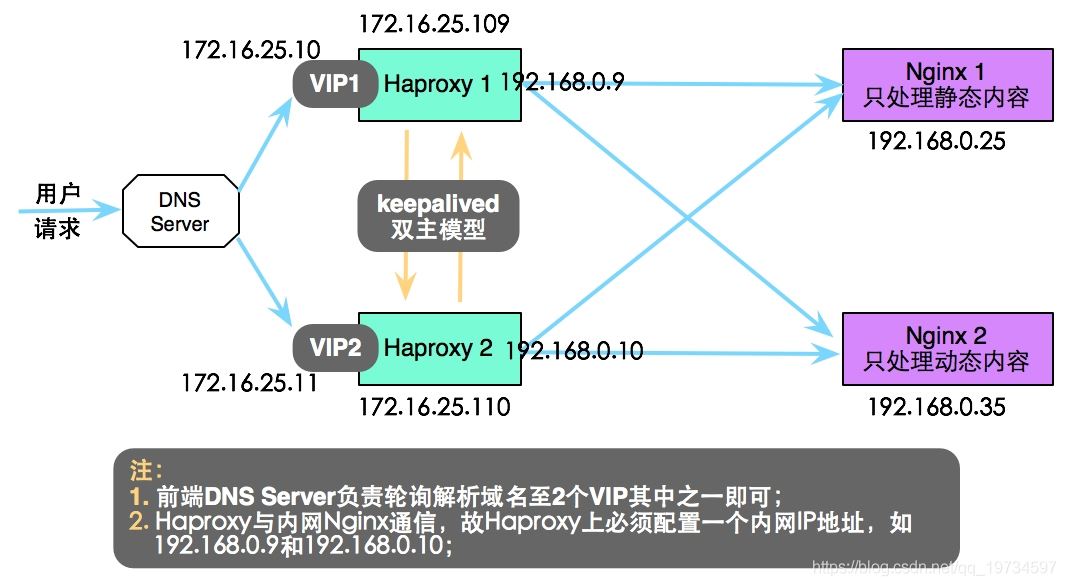

2、架構設計圖

3、Keepalived部署

在兩個節點上都需要執行安裝keepalived，命令如下：

$ yum -y install keepalived

修改172.16.25.109 節點上 keepalived.conf 文件配置，命令如下

$ vim /etc/keepalived/keepalived.conf

修改后的內容如下：

! Configuration File for keepalived
global_defs {
   notification_email {
         root@localhost
   }
   notification_email_from admin@lnmmp.com
   smtp_connect_timeout 3
   smtp_server 127.0.0.1
   router_id LVS_DEVEL
}
vrrp_script chk_maintaince_down {
   script "[[ -f /etc/keepalived/down ]] && exit 1 || exit 0"
   interval 1
   weight 2
}
vrrp_script chk_haproxy {
    script "killall -0 haproxy"
    interval 1
    weight 2
}
vrrp_instance VI_1 {
    interface eth0
    state MASTER
    priority 100
    virtual_router_id 125
    garp_master_delay 1
    authentication {
        auth_type PASS
        auth_pass 1e3459f77aba4ded
    }
    track_interface {
       eth0
    }
    virtual_ipaddress {
        172.16.25.10/16 dev eth0 label eth0:0
    }
    track_script {
        chk_haproxy
    }
    notify_master "/etc/keepalived/notify.sh master 172.16.25.10"
    notify_backup "/etc/keepalived/notify.sh backup 172.16.25.10"
    notify_fault "/etc/keepalived/notify.sh fault 172.16.25.10"
}
vrrp_instance VI_2 {
    interface eth0
    state BACKUP
    priority 99
    virtual_router_id 126
    garp_master_delay 1
    authentication {
        auth_type PASS
        auth_pass 7615c4b7f518cede
    }
    track_interface {
       eth0
    }
    virtual_ipaddress {
        172.16.25.11/16 dev eth0 label eth0:1
    }
    track_script {
        chk_haproxy
chk_maintaince_down
    }
    notify_master "/etc/keepalived/notify.sh master 172.16.25.11"
    notify_backup "/etc/keepalived/notify.sh backup 172.16.25.11"
    notify_fault "/etc/keepalived/notify.sh fault 172.16.25.11"
}

同理修改172.16.25.110節點上 keepalived.conf 配置，內容如下：

! Configuration File for keepalived
global_defs {
   notification_email {
         root@localhost
   }
   notification_email_from admin@lnmmp.com
   smtp_connect_timeout 3
   smtp_server 127.0.0.1
   router_id LVS_DEVEL
}
vrrp_script chk_maintaince_down {
   script "[[ -f /etc/keepalived/down ]] && exit 1 || exit 0"
   interval 1
   weight 2
}
vrrp_script chk_haproxy {
    script "killall -0 haproxy"
    interval 1
    weight 2
}
vrrp_instance VI_1 {
    interface eth0
    state BACKUP
    priority 99
    virtual_router_id 125
    garp_master_delay 1
    authentication {
        auth_type PASS
        auth_pass 1e3459f77aba4ded
    }
    track_interface {
       eth0
    }
    virtual_ipaddress {
        172.16.25.10/16 dev eth0 label eth0:0
    }
    track_script {
        chk_haproxy
chk_maintaince_down
    }
    notify_master "/etc/keepalived/notify.sh master 172.16.25.10"
    notify_backup "/etc/keepalived/notify.sh backup 172.16.25.10"
    notify_fault "/etc/keepalived/notify.sh fault 172.16.25.10"
}
vrrp_instance VI_2 {
    interface eth0
    state MASTER
    priority 100
    virtual_router_id 126
    garp_master_delay 1
    authentication {
        auth_type PASS
        auth_pass 7615c4b7f518cede
    }
    track_interface {
       eth0
    }
    virtual_ipaddress {
        172.16.25.11/16 dev eth0 label eth0:1
    }
    track_script {
        chk_haproxy
    }
    notify_master "/etc/keepalived/notify.sh master 172.16.25.11"
    notify_backup "/etc/keepalived/notify.sh backup 172.16.25.11"
    notify_fault "/etc/keepalived/notify.sh fault 172.16.25.11"
}
# vi /etc/keepalived/notify.sh
#!/bin/bash
# Author: Jason.Yu <admin@lnmmp.com>
# description: An example of notify script
#
contact='root@localhost'
notify() {
    mailsubject="`hostname` to be $1: $2 floating"
    mailbody="`date '+%F %H:%M:%S'`: vrrp transition, `hostname` changed to be $1"
    echo $mailbody | mail -s "$mailsubject" $contact
}
case "$1" in
    master)
        notify master $2
        /etc/rc.d/init.d/haproxy restart
        exit 0
    ;;
    backup)
        notify backup $2 # 在節點切換成backup狀態時，無需刻意停止haproxy服務，防止chk_maintaince和chk_haproxy多次對haproxy服務操作；
        exit 0
    ;;
    fault)
        notify fault $2 # 同上
        exit 0
    ;;
    *)
        echo 'Usage: `basename $0` {master|backup|fault}'
        exit 1
    ;;
esac

在兩個節點上執行 keepalived 啟動命令，命令如下：

  $ service keepalived start

4、Haproxy部署

在兩個節點上都需要執行安裝 HAProxy，命令如下：

 $ yum -y install haproxy

修改172.16.25.109 和172.16.25.110節點上 haproxy.cfg文件配置（兩節點配置文件內容一致），命令如下：

 $ vim /etc/haproxy/haproxy.cfg

配置文件內容如下：

global
    log         127.0.0.1 local2
    chroot      /var/lib/haproxy
    pidfile     /var/run/haproxy.pid
    maxconn     4000
    user         haproxy
    group       haproxy
    daemon # 以后臺程序運行；
defaults
    mode                   http # 選擇HTTP模式，即可進行7層過濾；
    log                     global
    option                  httplog # 可以得到更加豐富的日志輸出；
    option                  dontlognull
    option http-server-close # server端可關閉HTTP連接的功能；
    option forwardfor except 127.0.0.0/8 # 傳遞client端的IP地址給server端，并寫入“X-Forward_for”首部中；
    option                  redispatch
    retries                 3
    timeout http-request    10s
    timeout queue           1m
    timeout connect         10s
    timeout client          1m
    timeout server          1m
    timeout http-keep-alive 10s
    timeout check           10s
    maxconn                 30000
listen stats
    mode http
    bind 0.0.0.0:1080 # 統計頁面綁定1080端口；
    stats enable # 開啟統計頁面功能；
    stats hide-version # 隱藏Haproxy版本號；
    stats uri     /haproxyadmin?stats # 自定義統計頁面的訪問uri；
    stats realm   Haproxy\ Statistics # 統計頁面密碼驗證時的提示信息；
    stats auth    admin:admin # 為統計頁面開啟登錄驗證功能；
    stats admin if TRUE # 若登錄用戶驗證通過，則賦予管理功能；
frontend http-in
    bind *:80
    mode http
    log global
    option httpclose
    option logasap
    option dontlognull
    capture request  header Host len 20
    capture request  header Referer len 60
    acl url_static       path_beg       -i /static /p_w_picpaths /javascript /stylesheets
    acl url_static       path_end       -i .jpg .jpeg .gif .png .css .js .html
    use_backend static_servers if url_static # 符合ACL規則的，請求轉入后端靜態服務器
    default_backend dynamic_servers # 默認請求轉入后端動態服務器
backend static_servers
    balance roundrobin
    server imgsrv1 192.168.0.25:80 check maxconn 6000 # 靜態服務器，可配置多臺，還可設置權重weight；
backend dynamic_servers
    balance source # 對于動態請求利用source調度算法，可一定程度上實現session保持；但最好利用cookie綁定的方式實現session保持
    server websrv1 192.168.0.35:80 check maxconn 1000 # 動態服務器，可配置多臺，還可設置權重weight；

兩個節點執行啟動服務，命令如下：

$ service haproxy start

5、Nginx部署

yum -y groupinstall “Development tools”
yum -y groupinstall “Server Platform Development”
yum install gcc openssl-devel pcre-devel zlib-devel
groupadd -r nginx
useradd -r -g nginx -s /sbin/nologin -M nginx
tar xf nginx-1.4.7.tar.gz
cd nginx-1.4.7
mkdir -pv /var/tmp/nginx
./configure \
  --prefix=/usr \
  --sbin-path=/usr/sbin/nginx \
  --conf-path=/etc/nginx/nginx.conf \
  --error-log-path=/var/log/nginx/error.log \
  --http-log-path=/var/log/nginx/access.log \
  --pid-path=/var/run/nginx/nginx.pid  \
  --lock-path=/var/lock/nginx.lock \
  --user=nginx \
  --group=nginx \
  --with-http_ssl_module \
  --with-http_flv_module \
  --with-http_stub_status_module \
  --with-http_gzip_static_module \
  --http-client-body-temp-path=/var/tmp/nginx/client/ \
  --http-proxy-temp-path=/var/tmp/nginx/proxy/ \
  --http-fastcgi-temp-path=/var/tmp/nginx/fcgi/ \
  --http-uwsgi-temp-path=/var/tmp/nginx/uwsgi \
  --http-scgi-temp-path=/var/tmp/nginx/scgi \
  --with-pcre
make && make install

配置服務腳本

vi /etc/init.d/nginx # 配置服務腳本
#!/bin/sh
#
# nginx - this script starts and stops the nginx daemon
#
# chkconfig:   - 85 15
# description:  Nginx is an HTTP(S) server, HTTP(S) reverse \
#               proxy and IMAP/POP3 proxy server
# processname: nginx
# config:      /etc/nginx/nginx.conf
# config:      /etc/sysconfig/nginx
# pidfile:     /var/run/nginx.pid
# Source function library.
. /etc/rc.d/init.d/functions
# Source networking configuration.
. /etc/sysconfig/network
# Check that networking is up.
[ "$NETWORKING" = "no" ] && exit 0
nginx="/usr/sbin/nginx"
prog=$(basename $nginx)
NGINX_CONF_FILE="/etc/nginx/nginx.conf"
[ -f /etc/sysconfig/nginx ] && . /etc/sysconfig/nginx
lockfile=/var/lock/subsys/nginx
make_dirs() {
   # make required directories
   user=`nginx -V 2>&1 | grep "configure arguments:" | sed 's/[^*]*--user=\([^ ]*\).*/\1/g' -`
   options=`$nginx -V 2>&1 | grep 'configure arguments:'`
   for opt in $options; do
       if [ `echo $opt | grep '.*-temp-path'` ]; then
           value=`echo $opt | cut -d "=" -f 2`
           if [ ! -d "$value" ]; then
               # echo "creating" $value
               mkdir -p $value && chown -R $user $value
           fi
       fi
   done
}
start() {
    [ -x $nginx ] || exit 5
    [ -f $NGINX_CONF_FILE ] || exit 6
    make_dirs
    echo -n $"Starting $prog: "
    daemon $nginx -c $NGINX_CONF_FILE
    retval=$?
    echo
    [ $retval -eq 0 ] && touch $lockfile
    return $retval
}
stop() {
    echo -n $"Stopping $prog: "
    killproc $prog -QUIT
    retval=$?
    echo
    [ $retval -eq 0 ] && rm -f $lockfile
    return $retval
}
restart() {
    configtest || return $?
    stop
    sleep 1
    start
}
reload() {
    configtest || return $?
    echo -n $"Reloading $prog: "
    killproc $nginx -HUP
    RETVAL=$?
    echo
}
force_reload() {
    restart
}
configtest() {
  $nginx -t -c $NGINX_CONF_FILE
}
rh_status() {
    status $prog
}
rh_status_q() {
    rh_status >/dev/null 2>&1
}
case "$1" in
    start)
        rh_status_q && exit 0
        $1
        ;;
    stop)
        rh_status_q || exit 0
        $1
        ;;
    restart|configtest)
        $1
        ;;
    reload)
        rh_status_q || exit 7
        $1
        ;;
    force-reload)
        force_reload
        ;;
    status)
        rh_status
        ;;
    condrestart|try-restart)
        rh_status_q || exit 0
            ;;
    *)
        echo $"Usage: $0 {start|stop|status|restart|condrestart|try-restart|reload|force-reload|configtest}"
        exit 2
esac
chmod +x /etc/init.d/nginx # 復***務腳本執行權限
vi /etc/nginx/nginx.conf # 編輯主配置文件
worker_processes  2;
error_log  /var/log/nginx/nginx.error.log;
pid        /var/run/nginx.pid;
events {
    worker_connections  1024;
}
http {
    include       mime.types;
    default_type  application/octet-stream;
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_age

啟動服務

service nginx configtest # 服務啟動前先驗證配置文件是否正確
service nginx start
ps -ef |grep nginx # 檢查nginx進程，尤其是worker進程是否與worker_processes值一致
ss -antupl |grep 80 # 檢查服務端口是否啟動

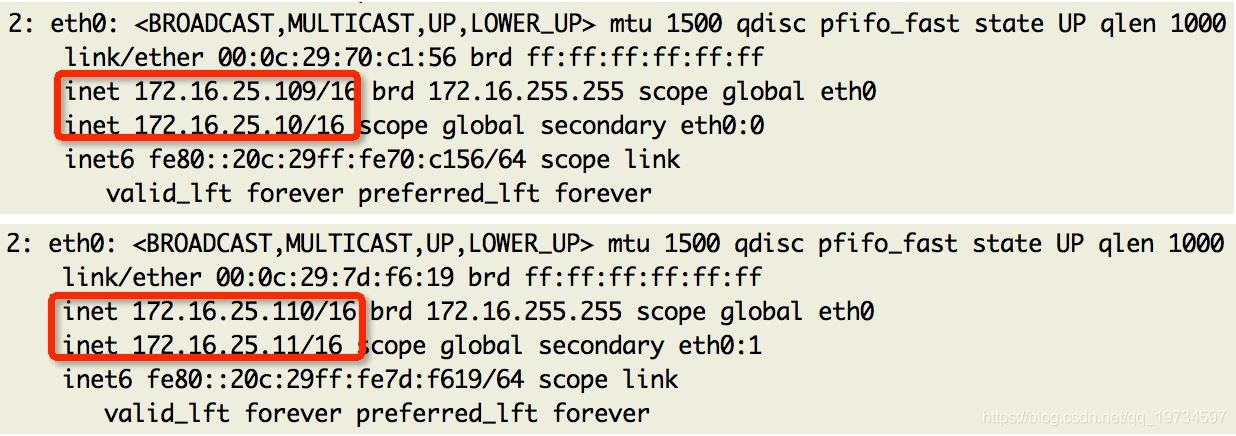

6、訪問驗證

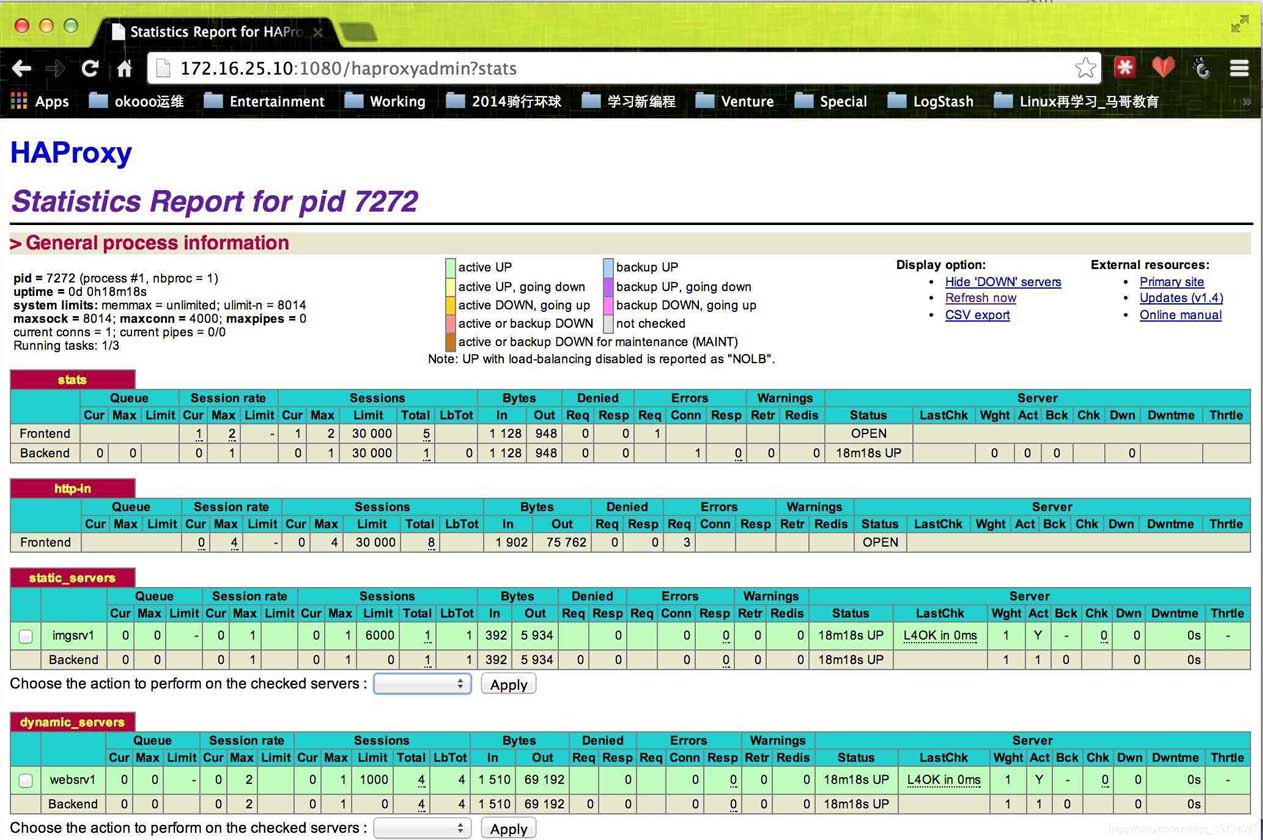

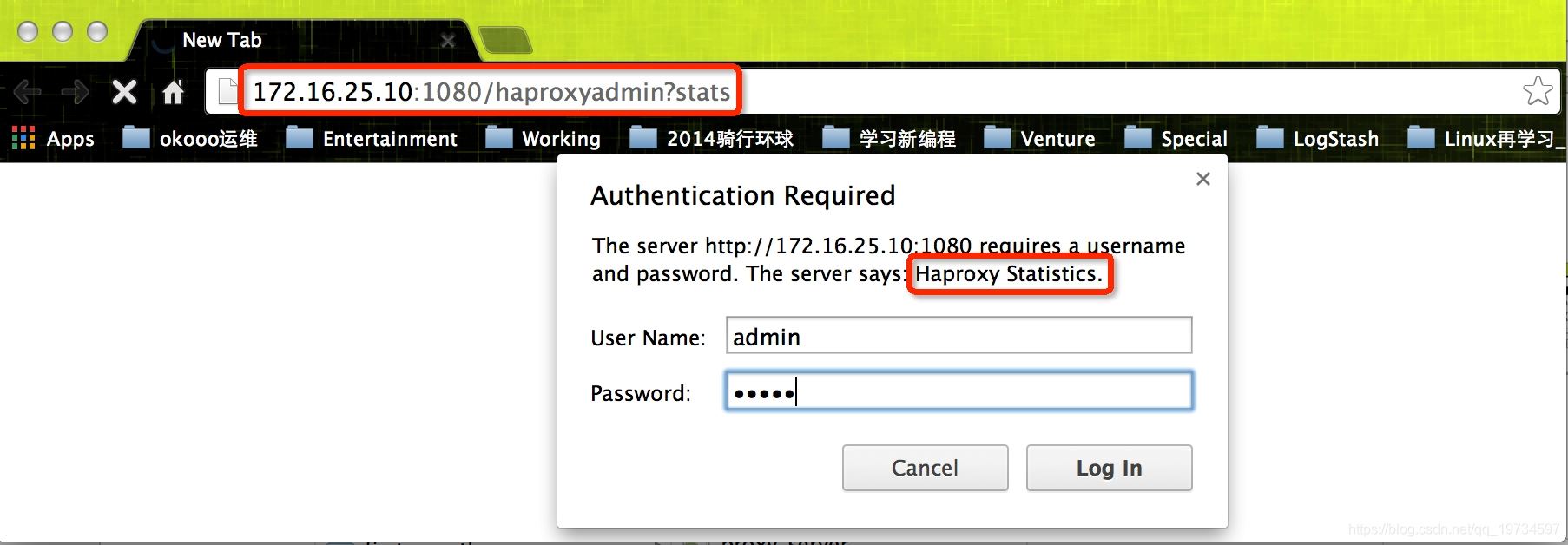

Haproxy 統計頁面測試

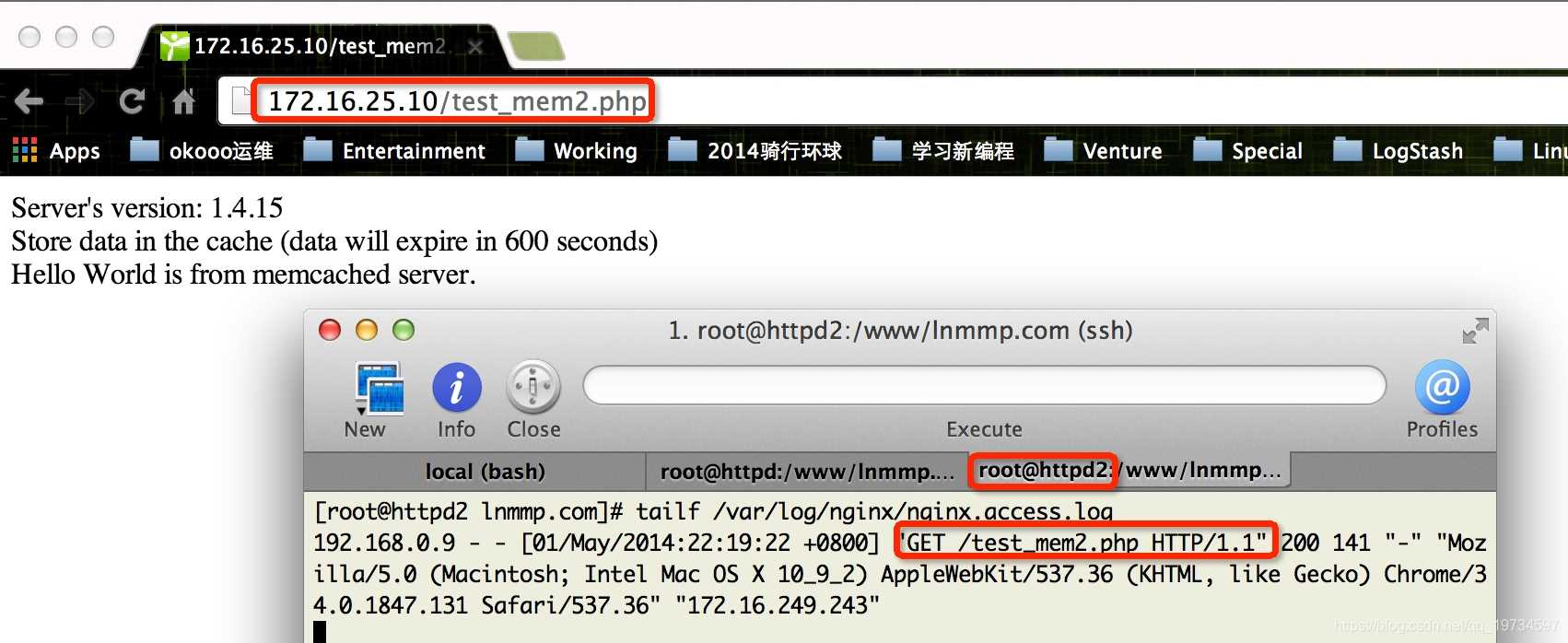

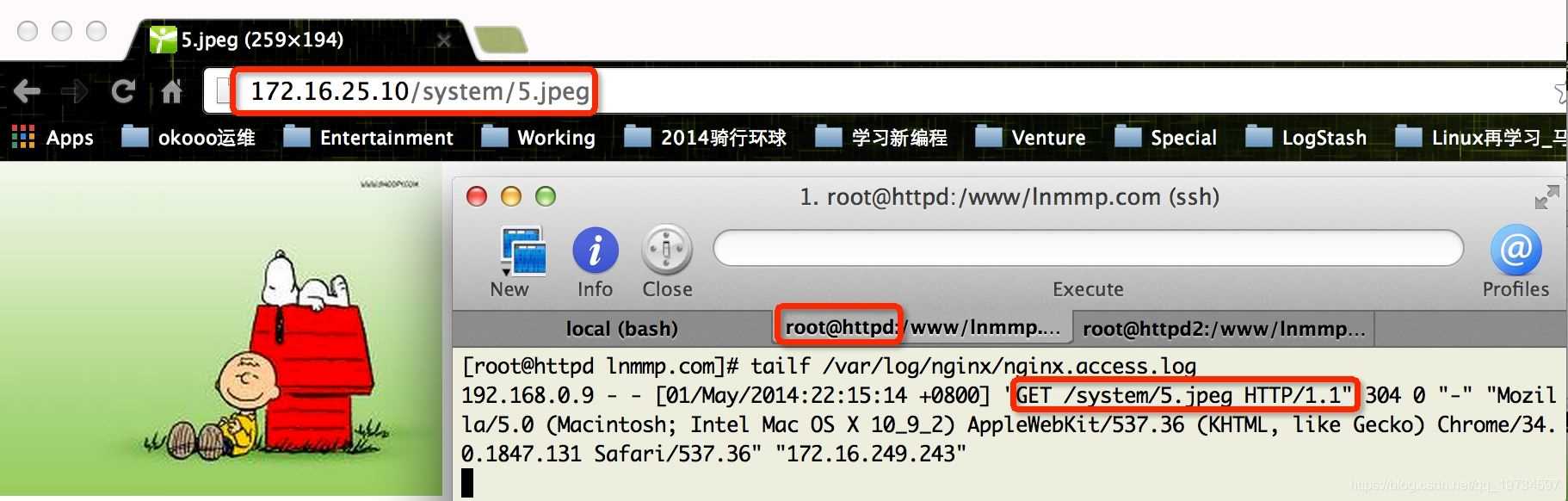

動靜分離測試

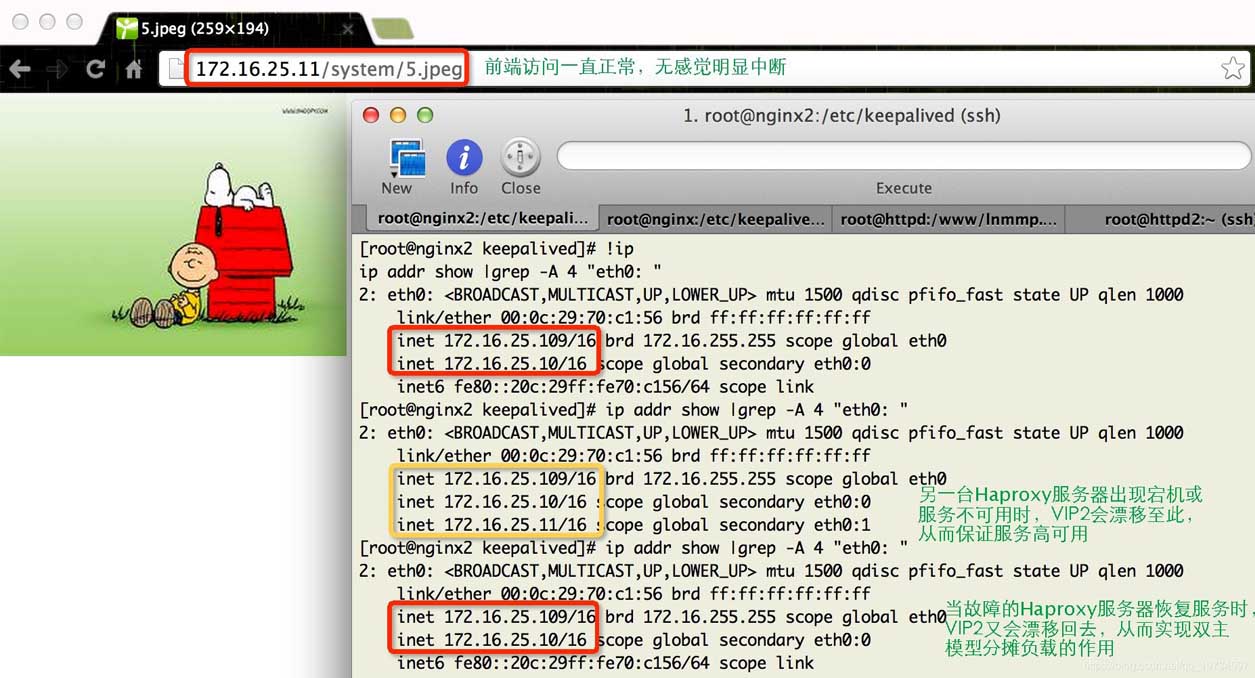

高可用測試

到此Nginx高可用集群構建（Keepalived+Haproxy+Nginx）介紹完成。
