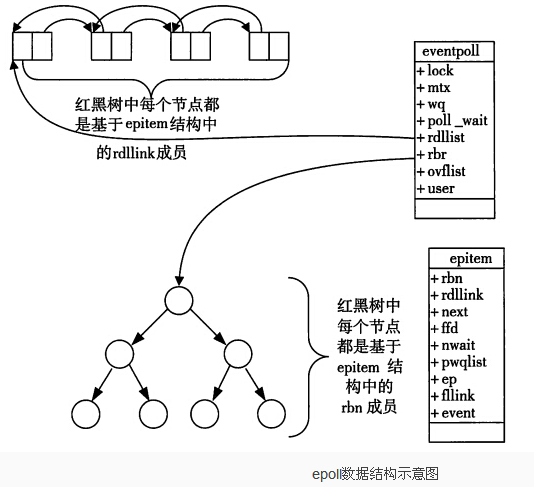

struct eventpoll{
 ....
 /*紅黑樹的根節點，這顆樹中存儲著所有添加到epoll中的需要監控的事件*/
 struct rb_root rbr;
 /*雙鏈表中則存放著將要通過epoll_wait返回給用戶的滿足條件的事件*/
 struct list_head rdlist;
 ....
};

struct epitem{
 struct rb_node rbn;//紅黑樹節點
 struct list_head rdllink;//雙向鏈表節點
 struct epoll_filefd ffd; //事件句柄信息
 struct eventpoll *ep; //指向其所屬的eventpoll對象
 struct epoll_event event; //期待發生的事件類型
}

typedef union epoll_data {
void *ptr;
int fd;
__uint32_t u32;
__uint64_t u64;
} epoll_data_t;
struct epoll_event {
__uint32_t events; /* Epoll events */
epoll_data_t data; /* User data variable */
};

struct epoll_event ev;
//設置與要處理的事件相關的文件描述符
ev.data.fd=listenfd;
//設置要處理的事件類型
ev.events=EPOLLIN|EPOLLET;
//注冊epoll事件
epoll_ctl(epfd,EPOLL_CTL_ADD,listenfd,&ev);

/*
* file epollTest.c
*/
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <errno.h>
#include <sys/socket.h>
#include <netdb.h>
#include <fcntl.h>
#include <sys/epoll.h>
#include <string.h>
#define MAXEVENTS 64
//函數:
//功能:創建和綁定一個TCP socket
//參數:端口
//返回值:創建的socket
static int
create_and_bind (char *port)
{
 struct addrinfo hints;
 struct addrinfo *result, *rp;
 int s, sfd;
 memset (&hints, 0, sizeof (struct addrinfo));
 hints.ai_family = AF_UNSPEC;  /* Return IPv4 and IPv6 choices */
 hints.ai_socktype = SOCK_STREAM; /* We want a TCP socket */
 hints.ai_flags = AI_PASSIVE;  /* All interfaces */
 s = getaddrinfo (NULL, port, &hints, &result);
 if (s != 0)
 {
  fprintf (stderr, "getaddrinfo: %s\n", gai_strerror (s));
  return -1;
 }
 for (rp = result; rp != NULL; rp = rp->ai_next)
 {
  sfd = socket (rp->ai_family, rp->ai_socktype, rp->ai_protocol);
  if (sfd == -1)
  continue;
  s = bind (sfd, rp->ai_addr, rp->ai_addrlen);
  if (s == 0)
  {
   /* We managed to bind successfully! */
   break;
  }
  close (sfd);
 }
 if (rp == NULL)
 {
  fprintf (stderr, "Could not bind\n");
  return -1;
 }
 freeaddrinfo (result);
 return sfd;
}

//函數
//功能:設置socket為非阻塞的
static int
make_socket_non_blocking (int sfd)
{
 int flags, s;
 //得到文件狀態標志
 flags = fcntl (sfd, F_GETFL, 0);
 if (flags == -1)
 {
  perror ("fcntl");
  return -1;
 }
 //設置文件狀態標志
 flags |= O_NONBLOCK;
 s = fcntl (sfd, F_SETFL, flags);
 if (s == -1)
 {
  perror ("fcntl");
  return -1;
 }
 return 0;
}
//端口由參數argv[1]指定
int
main (int argc, char *argv[])
{
 int sfd, s;
 int efd;
 struct epoll_event event;
 struct epoll_event *events;
 if (argc != 2)
 {
  fprintf (stderr, "Usage: %s [port]\n", argv[0]);
  exit (EXIT_FAILURE);
 }
 sfd = create_and_bind (argv[1]);
 if (sfd == -1)
 abort ();
 s = make_socket_non_blocking (sfd);
 if (s == -1)
 abort ();
 s = listen (sfd, SOMAXCONN);
 if (s == -1)
 {
  perror ("listen");
  abort ();
 }
 //除了參數size被忽略外,此函數和epoll_create完全相同
 efd = epoll_create1 (0);
 if (efd == -1)
 {
  perror ("epoll_create");
  abort ();
 }
 event.data.fd = sfd;
 event.events = EPOLLIN | EPOLLET;//讀入,邊緣觸發方式
 s = epoll_ctl (efd, EPOLL_CTL_ADD, sfd, &event);
 if (s == -1)
 {
  perror ("epoll_ctl");
  abort ();
 }
 /* Buffer where events are returned */
 events = calloc (MAXEVENTS, sizeof event);
 /* The event loop */
 while (1)
 {
  int n, i;
  n = epoll_wait (efd, events, MAXEVENTS, -1);
  for (i = 0; i < n; i++)
  {
   if ((events[i].events & EPOLLERR) ||
    (events[i].events & EPOLLHUP) ||
    (!(events[i].events & EPOLLIN)))
   {
    /* An error has occured on this fd, or the socket is not
     ready for reading (why were we notified then?) */
    fprintf (stderr, "epoll error\n");
    close (events[i].data.fd);
    continue;
   }
   else if (sfd == events[i].data.fd)
   {
    /* We have a notification on the listening socket, which
     means one or more incoming connections. */
    while (1)
    {
     struct sockaddr in_addr;
     socklen_t in_len;
     int infd;
     char hbuf[NI_MAXHOST], sbuf[NI_MAXSERV];
     in_len = sizeof in_addr;
     infd = accept (sfd, &in_addr, &in_len);
     if (infd == -1)
     {
      if ((errno == EAGAIN) ||
       (errno == EWOULDBLOCK))
      {
       /* We have processed all incoming
        connections. */
       break;
      }
      else
      {
       perror ("accept");
       break;
      }
     }
         //將地址轉化為主機名或者服務名
     s = getnameinfo (&in_addr, in_len,
         hbuf, sizeof hbuf,
         sbuf, sizeof sbuf,
         NI_NUMERICHOST | NI_NUMERICSERV);//flag參數:以數字名返回
         //主機地址和服務地址
     if (s == 0)
     {
      printf("Accepted connection on descriptor %d "
        "(host=%s, port=%s)\n", infd, hbuf, sbuf);
     }
     /* Make the incoming socket non-blocking and add it to the
      list of fds to monitor. */
     s = make_socket_non_blocking (infd);
     if (s == -1)
     abort ();
     event.data.fd = infd;
     event.events = EPOLLIN | EPOLLET;
     s = epoll_ctl (efd, EPOLL_CTL_ADD, infd, &event);
     if (s == -1)
     {
      perror ("epoll_ctl");
      abort ();
     }
    }
    continue;
   }
   else
   {
    /* We have data on the fd waiting to be read. Read and
     display it. We must read whatever data is available
     completely, as we are running in edge-triggered mode
     and won't get a notification again for the same
     data. */
    int done = 0;
    while (1)
    {
     ssize_t count;
     char buf[512];
     count = read (events[i].data.fd, buf, sizeof(buf));
     if (count == -1)
     {
      /* If errno == EAGAIN, that means we have read all
       data. So go back to the main loop. */
      if (errno != EAGAIN)
      {
       perror ("read");
       done = 1;
      }
      break;
     }
     else if (count == 0)
     {
      /* End of file. The remote has closed the
       connection. */
      done = 1;
      break;
     }
     /* Write the buffer to standard output */
     s = write (1, buf, count);
     if (s == -1)
     {
      perror ("write");
      abort ();
     }
    }
    if (done)
    {
     printf ("Closed connection on descriptor %d\n",
       events[i].data.fd);
     /* Closing the descriptor will make epoll remove it
      from the set of descriptors which are monitored. */
     close (events[i].data.fd);
    }
   }
  }
 }
 free (events);
 close (sfd);
 return EXIT_SUCCESS;
}
