Docker-compose部署gitlab的方法步驟
發布日期：2022-03-19 08:21 | 文章來源：源碼之家
Docker-compose部署gitlab
1、安裝Docker
安裝必要工具
復制代碼 代碼如下:
[root@vm_10_14_centos ~]# yum -y install yum-utils device-mapper-persistent-data lvm2
添加Docker-ce鏡像源并安裝
[root@vm_10_14_centos ~]# yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo [root@vm_10_14_centos ~]# yum makecache fast [root@vm_10_14_centos ~]# yum -y install docker-ce[root@gitlab ~]# yum makecache fast [root@vm_10_14_centos ~]# yum -y install docker-ce [root@vm_10_14_centos ~]# systemctl start docker [root@vm_10_14_centos ~]# systemctl enable docker Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service.
添加Docker鏡像加速
[root@vm_10_14_centos ~]# vim /etc/docker/daemon.json
{
"registry-mirrors": ["https://9w1hl6qt.mirror.aliyuncs.com"]
}
[root@vm_10_14_centos ~]# systemctl daemon-reload
[root@vm_10_14_centos ~]# systemctl restart docker
[root@vm_10_14_centos ~]# rpm -qa docker
[root@vm_10_14_centos ~]# rpm -qa docker-ce
docker-ce-18.09.0-3.el7.x86_64
[root@vm_10_14_centos ~]# docker --version
Docker version 18.09.0, build 4d60db4
[root@vm_10_14_centos ~]# docker version
Client:
Version: 18.09.0
API version: 1.39
Go version: go1.10.4
Git commit: 4d60db4
Built: Wed Nov 7 00:48:22 2018
OS/Arch: linux/amd64
Experimental: false
Server: Docker Engine - Community
Engine:
Version: 18.09.0
API version: 1.39 (minimum version 1.12)
Go version: go1.10.4
Git commit: 4d60db4
Built: Wed Nov 7 00:19:08 2018
OS/Arch: linux/amd64
Experimental: false
2、安裝Docker-compose
下載Docker-compose二進制文件并添加執行權限
[root@vm_10_14_centos ~]# curl -L https://github.com/docker/compose/releases/download/1.23.2/docker-compose-`uname -s`-`uname -m` -o /usr/local/bin/docker-compose
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 617 0 617 0 0 959 0 --:--:-- --:--:-- --:--:-- 958
100 11.2M 100 11.2M 0 0 1824k 0 0:00:06 0:00:06 --:--:-- 2422k
[root@vm_10_14_centos ~]# chmod +x /usr/local/bin/docker-compose
[root@vm_10_14_centos ~]# docker-compose --version
docker-compose version 1.23.2, build 1110ad01
3、安裝Gitlab
（1）編輯docker-compose的yml文件
[root@vm_10_14_centos ~]# mkdir gitlab [root@vm_10_14_centos ~]# cd gitlab/ [root@vm_10_14_centos gitlab]# vim docker-compose.yml version: '2' services: gitlab: image: 'twang2218/gitlab-ce-zh:11.1.4' container_name: "gitlab" restart: unless-stopped privileged: true hostname: 'gitlab' environment: TZ: 'Asia/Shanghai' GITLAB_OMNIBUS_CONFIG: | external_url 'http://129.204.133.242' gitlab_rails['time_zone'] = 'Asia/Shanghai' gitlab_rails['smtp_enable'] = true gitlab_rails['smtp_address'] = "smtp.aliyun.com" gitlab_rails['smtp_port'] = 465 gitlab_rails['smtp_user_name'] = "kimasd102419@aliyun.com" #用自己的aliyun郵箱 gitlab_rails['smtp_password'] = "axbc1kof" gitlab_rails['smtp_domain'] = "aliyun.com" gitlab_rails['smtp_authentication'] = "login" gitlab_rails['smtp_enable_starttls_auto'] = true gitlab_rails['smtp_tls'] = true gitlab_rails['gitlab_email_from'] = 'kimasd102419@aliyun.com' gitlab_rails['gitlab_shell_ssh_port'] = 22 ports: - '80:80' - '443:443' - '22:22' volumes: - /opt/gitlab/config:/etc/gitlab - /opt/gitlab/data:/var/opt/gitlab - /opt/gitlab/logs:/var/log/gitlab
（2）創建相關目錄
[root@vm_10_14_centos gitlab]# mkdir /opt/gitlab/{config,data,logs} -p
[root@vm_10_14_centos gitlab]# ls -l /opt/gitlab/
total 12
drwxr-xr-x 2 root root 4096 Dec 8 11:35 config
drwxr-xr-x 2 root root 4096 Dec 8 11:35 data
drwxr-xr-x 2 root root 4096 Dec 8 11:35 logs
（3）拉取gitlab中文版鏡像
[root@vm_10_14_centos gitlab]# docker pull twang2218/gitlab-ce-zh:11.1.4 11.1.4: Pulling from twang2218/gitlab-ce-zh 8ee29e426c26: Pull complete 6e83b260b73b: Pull complete e26b65fd1143: Pull complete 40dca07f8222: Pull complete b420ae9e10b3: Pull complete a218309dd589: Pull complete 5c60fd7ba0ce: Pull complete 659c2144b5a3: Pull complete 8289bbac0d0e: Pull complete 31bbd150e8a7: Pull complete 9114e78243fa: Pull complete 0b97fa2153bc: Pull complete 308c7e15be6a: Pull complete b7f31b8e487d: Pull complete cbbb6dec5000: Pull complete 0241c9ad6a16: Pull complete 7fa6f0b53edd: Pull complete 1c2861e152b2: Pull complete 0536f3466f66: Pull complete Digest: sha256:3c2372e3285e6d6933ddebb5ee3ae0c4bbf7cb235084e54d33d7f0ddf4813c4a Status: Downloaded newer image for twang2218/gitlab-ce-zh:11.1.4 [root@vm_10_14_centos gitlab]# docker image ls REPOSITORY TAG IMAGE ID CREATED SIZE twang2218/gitlab-ce-zh 11.1.4 1935cc9f8798 4 months ago 1.61GB
（4）啟動gitlab的容器
[root@vm_10_14_centos gitlab]# docker-compose up -d Creating network "gitlab_default" with the default driver Creating gitlab ... error ERROR: for gitlab Cannot start service gitlab: b'driver failed programming external connectivity on endpoint gitlab (9308ca74b8491c556263eac9fb9b0abcb25258d9e2df5733fc4d9143d6b18dcc): Error starting userland proxy: listen tcp 0.0.0.0:22: bind: address already in use' ERROR: for gitlab Cannot start service gitlab: b'driver failed programming external connectivity on endpoint gitlab (9308ca74b8491c556263eac9fb9b0abcb25258d9e2df5733fc4d9143d6b18dcc): Error starting userland proxy: listen tcp 0.0.0.0:22: bind: address already in use' ERROR: Encountered errors while bringing up the project. [root@vm_10_14_centos gitlab]# vim /etc/ssh/sshd_config [root@vm_10_14_centos gitlab]# systemctl restart sshd [root@vm_10_14_centos gitlab]# netstat -tulnp |grep 22 tcp 0 0 0.0.0.0:60022 0.0.0.0:* LISTEN 4044/sshd
這里需要注意的是，由于gitlab容器需要用到22端口，不能與宿主機沖突，這里需要修改宿主機的sshd服務的監聽端口
[root@vm_10_14_centos gitlab]# docker-compose ps Name Command State Ports ------------------------------------------------------------------------------ ------------------------ gitlab /assets/wrapper Up (healthy) 0.0.0.0:22->22/tcp, 0.0.0.0:443- >443/tcp, 0.0.0.0:80->80/tcp
（5）gitlab設置開機啟動
[root@vm_10_14_centos gitlab]# chmod +x /etc/rc.local [root@vm_10_14_centos gitlab]# ls -l /etc/rc.local lrwxrwxrwx. 1 root root 13 Jul 7 16:43 /etc/rc.local -> rc.d/rc.local [root@vm_10_14_centos gitlab]# echo "cd /root/gitlab && docker-compose up -d" >> /etc/rc.local [root@gitlab gitlab]# tail -1 /etc/rc.local cd /root/gitlab && docker-compose up -d

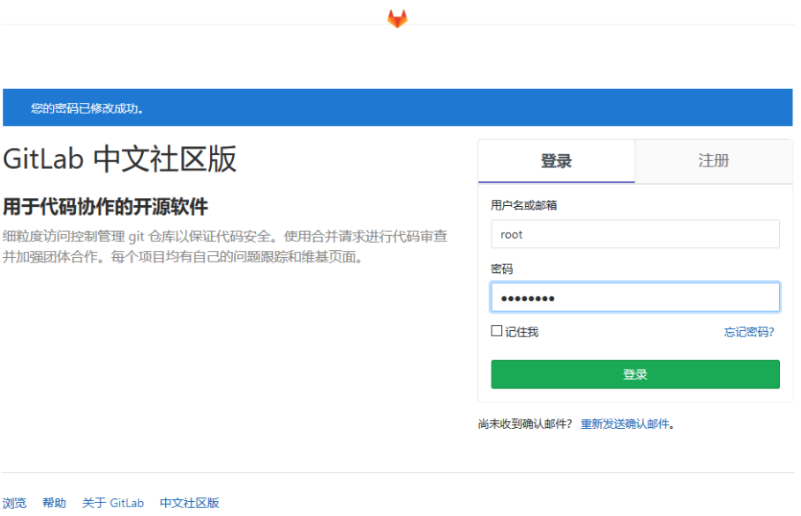

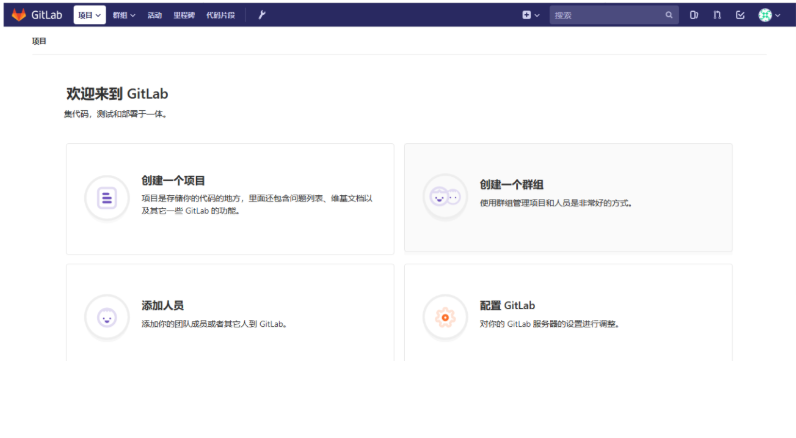

（6）gitlab管理界面
地址：http://129.204.133.242
賬號：root

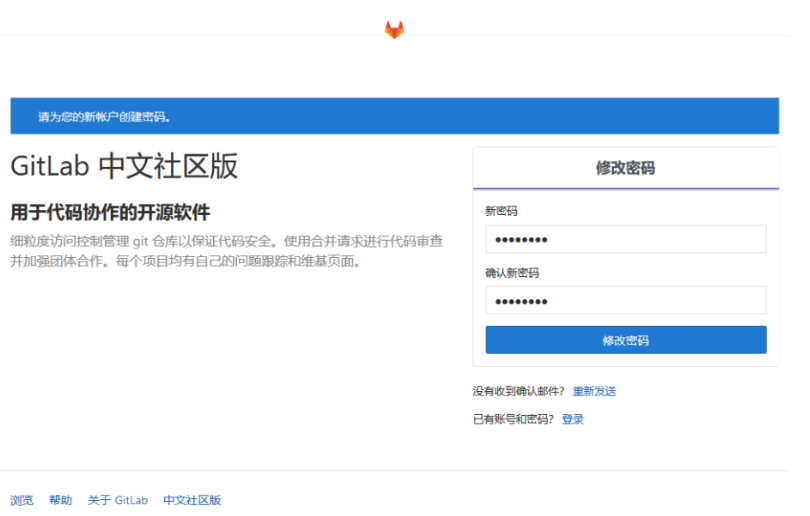

密碼：首次登陸設置
