docker私庫Harbor的架構與組件說明
發布日期：2022-03-18 08:38 | 文章來源：源碼中國
這篇文章來了解一下harbor架構的組成和運行時各個組件的使用方式。

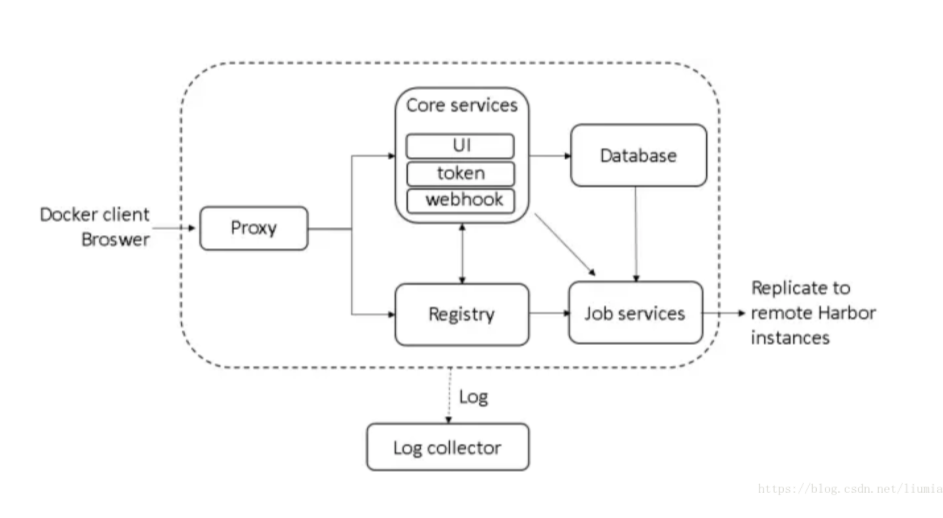

架構
容器信息
[root@liumiao harbor]# docker-compose ps
Name Command State Ports
------------------------------------------------------------------------------------------------------------------------------
harbor-adminserver /harbor/start.sh Up
harbor-db /usr/local/bin/docker-entr ... Up 3306/tcp
harbor-jobservice /harbor/start.sh Up
harbor-log /bin/sh -c /usr/local/bin/ ... Up 127.0.0.1:1514->10514/tcp
harbor-ui /harbor/start.sh Up
nginx nginx -g daemon off; Up 0.0.0.0:443->443/tcp, 0.0.0.0:4443->4443/tcp, 0.0.0.0:80->80/tcp
redis docker-entrypoint.sh redis ... Up 6379/tcp
registry /entrypoint.sh serve /etc/ ... Up 5000/tcp [root@liumiao harbor]#

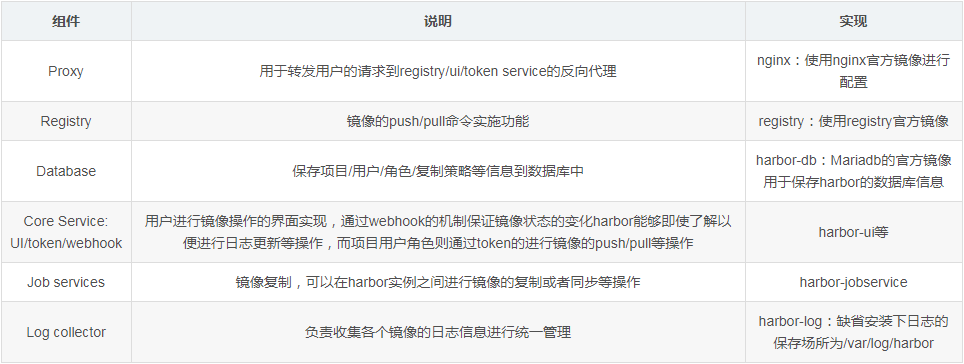

具體說明
proxy
proxy就是使用nginx作為反向代理，而整個的核心則在于nginx的設定文件，通過如下的設定文件可以清楚的看到harbor所解釋的將各個其他組件集成在一起的說明內容，而實際的實現也基本上就是靠nginx的設定。
[root@liumiao harbor]# ls
LICENSE common docker-compose.notary.yml ha harbor.v1.5.2.tar.gz open_source_license
NOTICE docker-compose.clair.yml docker-compose.yml harbor.cfg install.sh prepare
[root@liumiao harbor]# cat common/config/nginx/nginx.conf
worker_processes auto;
events {
worker_connections 1024;
use epoll;
multi_accept on;
}
http {
tcp_nodelay on;
# this is necessary for us to be able to disable request buffering in all cases
proxy_http_version 1.1;
upstream registry {
server registry:5000;
}
upstream ui {
server ui:8080;
}
log_format timed_combined '$remote_addr - '
'"$request" $status $body_bytes_sent '
'"$http_referer" "$http_user_age
database
可以看到使用的是MariaDB 10.2.14, harbor的數據庫名稱為registry
[root@liumiao harbor]# docker exec -it harbor-db sh sh-4.3# mysql -uroot -pliumiaopw Welcome to the MariaDB monitor. Commands end with ; or \g. Your MariaDB connection id is 21 Server version: 10.2.14-MariaDB Source distribution Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. MariaDB [(none)]> show databases; +--------------------+ | Database | +--------------------+ | information_schema | | mysql | | performance_schema | | registry | +--------------------+ 4 rows in set (0.00 sec) MariaDB [(none)]>
數據庫表的信息進行確認后可以看到，當前版本的這種使用方式下，數據庫的表有如下 20張表左右
MariaDB [(none)]> use registry; Reading table information for completion of table and column names You can turn off this feature to get a quicker startup with -A Database changed MariaDB [registry]> show tables; +-------------------------------+ | Tables_in_registry | +-------------------------------+ | access | | access_log | | alembic_version | | clair_vuln_timestamp | | harbor_label | | harbor_resource_label | | img_scan_job | | img_scan_overview | | project | | project_member | | project_metadata | | properties | | replication_immediate_trigger | | replication_job | | replication_policy | | replication_target | | repository | | role | | user | | user_group | +-------------------------------+ 20 rows in set (0.00 sec) MariaDB [registry]>
Log collector
harbor中的日志缺省會在如下目錄下進行匯集和管理
[root@liumiao harbor]# ls /var/log/harbor adminserver.log jobservice.log mysql.log proxy.log redis.log registry.log ui.log [root@liumiao harbor]#
docker-compose.yml
[root@liumiao harbor]# cat docker-compose.yml
version: '2'
services:
log:
image: vmware/harbor-log:v1.5.2
container_name: harbor-log
restart: always
volumes:
- /var/log/harbor/:/var/log/docker/:z
- ./common/config/log/:/etc/logrotate.d/:z
ports:
- 127.0.0.1:1514:10514
networks:
- harbor
registry:
image: vmware/registry-photon:v2.6.2-v1.5.2
container_name: registry
restart: always
volumes:
- /data/registry:/storage:z
- ./common/config/registry/:/etc/registry/:z
networks:
- harbor
environment:
- GODEBUG=netdns=cgo
command:
["serve", "/etc/registry/config.yml"]
depends_on:
- log
logging:
driver: "syslog"
options:
syslog-address: "tcp://127.0.0.1:1514"
tag: "registry"
mysql:
image: vmware/harbor-db:v1.5.2
container_name: harbor-db
restart: always
volumes:
- /data/database:/var/lib/mysql:z
networks:
- harbor
env_file:
- ./common/config/db/env
depends_on:
- log
logging:
driver: "syslog"
options:
syslog-address: "tcp://127.0.0.1:1514"
tag: "mysql"
adminserver:
image: vmware/harbor-adminserver:v1.5.2
container_name: harbor-adminserver
env_file:
- ./common/config/adminserver/env
restart: always
volumes:
- /data/config/:/etc/adminserver/config/:z
- /data/secretkey:/etc/adminserver/key:z
- /data/:/data/:z
networks:
- harbor
depends_on:
- log
logging:
driver: "syslog"
options:
syslog-address: "tcp://127.0.0.1:1514"
tag: "adminserver"
ui:
image: vmware/harbor-ui:v1.5.2
container_name: harbor-ui
env_file:
- ./common/config/ui/env
restart: always
volumes:
- ./common/config/ui/app.conf:/etc/ui/app.conf:z
- ./common/config/ui/private_key.pem:/etc/ui/private_key.pem:z
- ./common/config/ui/certificates/:/etc/ui/certificates/:z
- /data/secretkey:/etc/ui/key:z
- /data/ca_download/:/etc/ui/ca/:z
- /data/psc/:/etc/ui/token/:z
networks:
- harbor
depends_on:
- log
- adminserver
- registry
logging:
driver: "syslog"
options:
syslog-address: "tcp://127.0.0.1:1514"
tag: "ui"
jobservice:
image: vmware/harbor-jobservice:v1.5.2
container_name: harbor-jobservice
env_file:
- ./common/config/jobservice/env
restart: always
volumes:
- /data/job_logs:/var/log/jobs:z
- ./common/config/jobservice/config.yml:/etc/jobservice/config.yml:z
networks:
- harbor
depends_on:
- redis
- ui
- adminserver
logging:
driver: "syslog"
options:
syslog-address: "tcp://127.0.0.1:1514"
tag: "jobservice"
redis:
image: vmware/redis-photon:v1.5.2
container_name: redis
restart: always
volumes:
- /data/redis:/data
networks:
- harbor
depends_on:
- log
logging:
driver: "syslog"
options:
syslog-address: "tcp://127.0.0.1:1514"
tag: "redis"
proxy:
image: vmware/nginx-photon:v1.5.2
container_name: nginx
restart: always
volumes:
- ./common/config/nginx:/etc/nginx:z
networks:
- harbor
ports:
- 80:80
- 443:443
- 4443:4443
depends_on:
- mysql
- registry
- ui
- log
logging:
driver: "syslog"
options:
syslog-address: "tcp://127.0.0.1:1514"
tag: "proxy"
networks:
harbor:
external: false
[root@liumiao harbor]#
使用注意事項：自定義端口號

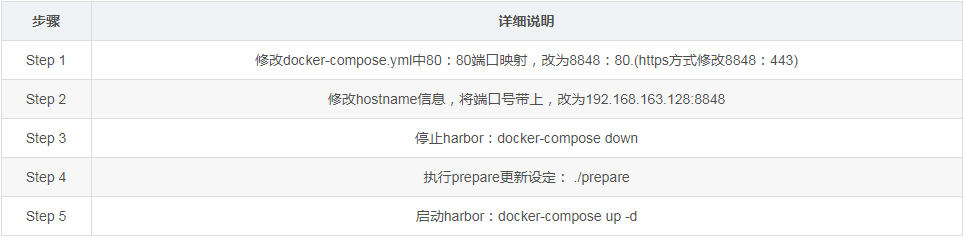

在前一篇文章的例子中我們使用默認的80口作為harbor的端口，如果希望進行更改（比如改為8848），按照如下步驟進行修改即可
設定內容
可以通過查看數據庫的properties或者api/systeminfo來確認harbor設定項目的詳細信息
properties
[root@liumiao harbor]# docker exec -it harbor-db sh sh-4.3# mysql -uroot -pliumiaopw Welcome to the MariaDB monitor. Commands end with ; or \g. Your MariaDB connection id is 153 Server version: 10.2.14-MariaDB Source distribution Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. MariaDB [(none)]> use registry Reading table information for completion of table and column names You can turn off this feature to get a quicker startup with -A Database changed MariaDB [registry]> select * from properties; +----+--------------------------------+----------------------------------------------+ | id | k | v | +----+--------------------------------+----------------------------------------------+ | 1 | cfg_expiration | 5 | | 2 | project_creation_restriction | everyone | | 3 | uaa_client_secret | <enc-v1>cBvRPcG+p3oNVnJh8VM+SjvlcEsKYg== | | 4 | clair_db_host | postgres | | 5 | token_service_url | http://ui:8080/service/token | | 6 | mysql_password | <enc-v1>HDqd+PbHcG9EWK9DF3RzM43fTtPvCjdvyQ== | | 7 | uaa_endpoint | uaa.mydomain.org | | 8 | max_job_workers | 50 | | 9 | sqlite_file | | | 10 | email_from | admin <sample_admin@mydomain.com> | | 11 | ldap_base_dn | ou=people,dc=mydomain,dc=com | | 12 | clair_db_port | 5432 | | 13 | mysql_port | 3306 | | 14 | ldap_search_dn | | | 15 | clair_db_username | postgres | | 16 | email_insecure | false | | 17 | database_type | mysql | | 18 | ldap_filter | | | 19 | with_notary | false | | 20 | admin_initial_password | <enc-v1>4ZEvd/GfBYSdF9I6PfeI/XIvfGhPITaD3w== | | 21 | notary_url | http://notary-server:4443 | | 22 | auth_mode | db_auth | | 23 | ldap_group_search_scope | 2 | | 24 | ldap_uid | uid | | 25 | email_username | sample_admin@mydomain.com | | 26 | mysql_database | registry | | 27 | reload_key | | | 28 | clair_url | http://clair:6060 | | 29 | ldap_group_search_filter | objectclass=group | | 30 | email_password | <enc-v1>h18ptbUM5oJwtKOzjJ4X5LOiPw== | | 31 | email_ssl | false | | 32 | ldap_timeout | 5 | | 33 | uaa_client_id | id | | 34 | registry_storage_provider_name | filesystem | | 35 | self_registration | true | | 36 | email_port | 25 | | 37 | ui_url | http://ui:8080 | | 38 | token_expiration | 30 | | 39 | email_identity | | | 40 | clair_db | postgres | | 41 | uaa_verify_cert | true | | 42 | ldap_verify_cert | true | | 43 | ldap_group_attribute_name | cn | | 44 | mysql_host | mysql | | 45 | read_only | false | | 46 | ldap_url | ldaps://ldap.mydomain.com | | 47 | ext_endpoint | http://192.168.163.128 | | 48 | ldap_group_base_dn | ou=group,dc=mydomain,dc=com | | 49 | with_clair | false | | 50 | admiral_url | NA | | 51 | ldap_scope | 2 | | 52 | registry_url | http://registry:5000 | | 53 | jobservice_url | http://jobservice:8080 | | 54 | email_host | smtp.mydomain.com | | 55 | ldap_search_password | <enc-v1>F2QZkeEPTQPsJ9KNsBWcXA== | | 56 | mysql_username | root | | 57 | clair_db_password | <enc-v1>IGBg3NxvT7qCYGIB+zizax+GojoM7ao2VQ== | +----+--------------------------------+----------------------------------------------+ 57 rows in set (0.00 sec) MariaDB [registry]>
api/systeminfo
[root@liumiao harbor]# curl http://localhost/api/systeminfo
{
"with_notary": false,
"with_clair": false,
"with_admiral": false,
"admiral_endpoi
總結
