import torch
import matplotlib.pyplot as  plt
def plot_curve(data):
 fig=plt.figure()
 plt.plot(range(len(data)),data,color="blue")
 plt.legend(["value"],loc="upper right")
 plt.xlabel("step")
 plt.ylabel("value")
 plt.show()

def plot_image(img,label,name):
 fig=plt.figure()
 for i in range(6):
  plt.subplot(2,3,i+1)
  plt.tight_layout()
  plt.imshow(img[i][0]*0.3081+0.1307,cmap="gray",interpolation="none")
  plt.title("{}:{}".format(name, label[i].item()))
  plt.xticks([])
  plt.yticks([])
 plt.show()
def one_hot(label,depth=10):
 out=torch.zeros(label.size(0),depth)
 idx=torch.LongTensor(label).view(-1,1)
 out.scatter_(dim=1,index=idx,value=1)
 return out

batch_size=512
import torch
from torch import nn #完成神經網絡的構建包
from torch.nn import functional as F#包含常用的函數包
from torch import optim #優化工具包
import torchvision#視覺工具包
import  matplotlib.pyplot as plt
from utils import plot_curve,plot_image,one_hot
#step1 load dataset加載數據包
train_loader=torch.utils.data.DataLoader(
 torchvision.datasets.MNIST("minist_data",train=True,download=True,transform=torchvision.transforms.Compose(
  [torchvision.transforms.ToTensor(),torchvision.transforms.Normalize((0.1307,),(0.3081,))
])),
 batch_size=batch_size,shuffle=True)
test_loader=torch.utils.data.DataLoader(
 torchvision.datasets.MNIST("minist_data",train=True,download=False,transform=torchvision.transforms.Compose(
  [torchvision.transforms.ToTensor(),torchvision.transforms.Normalize((0.1307,),(0.3081,))
])),
 batch_size=batch_size,shuffle=False)

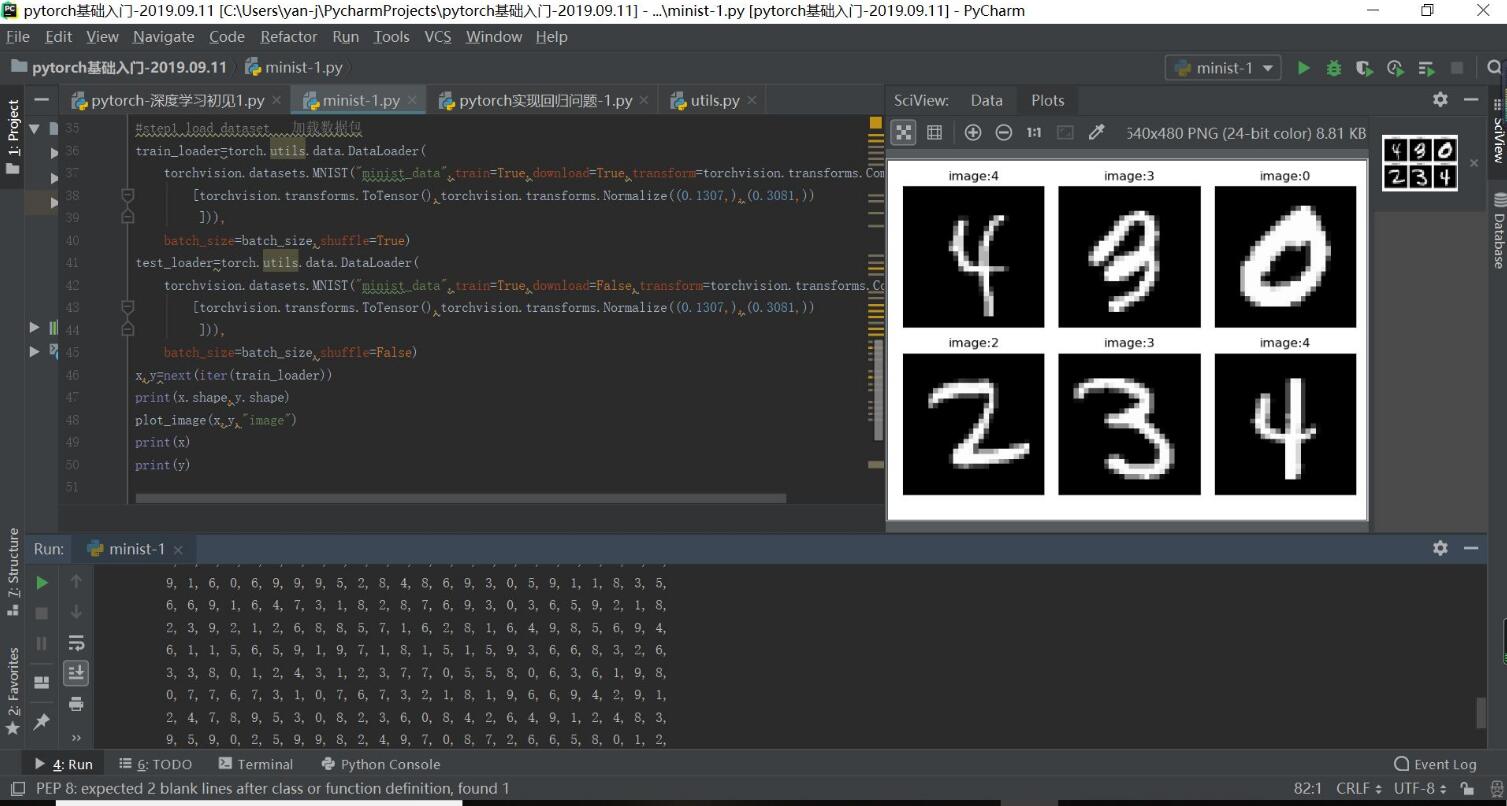

x,y=next(iter(train_loader))
print(x.shape,y.shape)
plot_image(x,y,"image")
print(x)
print(y)

import torch
import torch.nn.functional as F  # 激勵函數都在這

x = torch.unsqueeze(torch.linspace(-1, 1, 100), dim=1)  # x data (tensor), shape=(100, 1)
y = x.pow(2) + 0.2 * torch.rand(x.size())  # noisy y data (tensor), shape=(100, 1)

class Net(torch.nn.Module):  # 繼承 torch 的 Module（固定）
 def __init__(self, n_feature, n_hidden, n_output):  # 定義層的信息，n_feature多少個輸入, n_hidden每層神經元, n_output多少個輸出
  super(Net, self).__init__()  # 繼承 __init__ 功能（固定）
  # 定義每層用什么樣的形式
  self.hidden = torch.nn.Linear(n_feature, n_hidden)  # 定義隱藏層，線性輸出
  self.predict = torch.nn.Linear(n_hidden, n_output)  # 定義輸出層線性輸出

 def forward(self, x):  # x是輸入信息就是data，同時也是 Module 中的 forward 功能，定義神經網絡前向傳遞的過程，把__init__中的層信息一個一個的組合起來
  # 正向傳播輸入值, 神經網絡分析出輸出值
  x = F.relu(self.hidden(x))  # 定義激勵函數(隱藏層的線性值)
  x = self.predict(x)  # 輸出層，輸出值
  return x

net = Net(n_feature=1, n_hidden=10, n_output=1)
print(net)  # net 的結構
"""
Net (
  (hidden): Linear (1 -> 10)
  (predict): Linear (10 -> 1)
)
"""
# optimizer 是訓練的工具
optimizer = torch.optim.SGD(net.parameters(), lr=0.2)  # 傳入 net 的所有參數, 學習率
loss_func = torch.nn.MSELoss()  # 預測值和真實值的誤差計算公式 (均方差)

for t in range(100):  # 訓練的步數100步
 prediction = net(x)  # 喂給 net 訓練數據 x, 每迭代一步，輸出預測值

 loss = loss_func(prediction, y)  # 計算兩者的誤差

 # 優化步驟：
 optimizer.zero_grad()  # 清空上一步的殘余更新參數值
 loss.backward()  # 誤差反向傳播, 計算參數更新值
 optimizer.step()  # 將參數更新值施加到 net 的 parameters 上

import matplotlib.pyplot as plt
plt.ion()  # 實時畫圖something about plotting
for t in range(200):
 prediction = net(x)  # input x and predict based on x
 loss = loss_func(prediction, y)  # must be (1. nn output, 2. target)
 optimizer.zero_grad()  # clear gradients for next train
 loss.backward()  # backpropagation, compute gradients
 optimizer.step()  # apply gradients

 if t % 5 == 0:  # 每五步繪一次圖
  # plot and show learning process
  plt.cla()
  plt.scatter(x.data.numpy(), y.data.numpy())
  plt.plot(x.data.numpy(), prediction.data.numpy(), 'r-', lw=5)
  plt.text(0.5, 0, 'Loss=%.4f' % loss.data.numpy(), fontdict={'size': 20, 'color': 'red'})
  plt.pause(0.1)

plt.ioff()
plt.show()
