使用python+pygame開發消消樂游戲附完整源碼
發布日期：2022-03-13 19:05 | 文章來源：腳本之家

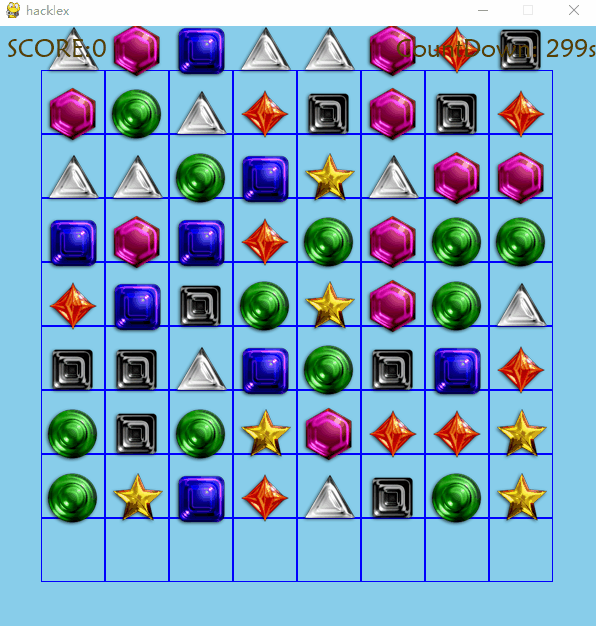

效果是這樣的 ↓ ↓ ↓
一、環境要求
windows系統，python3.6+ pip21+
開發環境搭建地址
一起來學pygame吧 游戲開發30例（開篇詞）——環境搭建+游戲效果展示
安裝游戲依賴模塊
pip install pygame
二、游戲簡介
消消樂應該大家都玩過，或者看過。這個花里胡哨的小游戲
用python的pygame來實現，很簡單。
今天帶大家，用Python來實現一下這個花里胡哨的小游戲。
三、完整開發流程
1、項目主結構

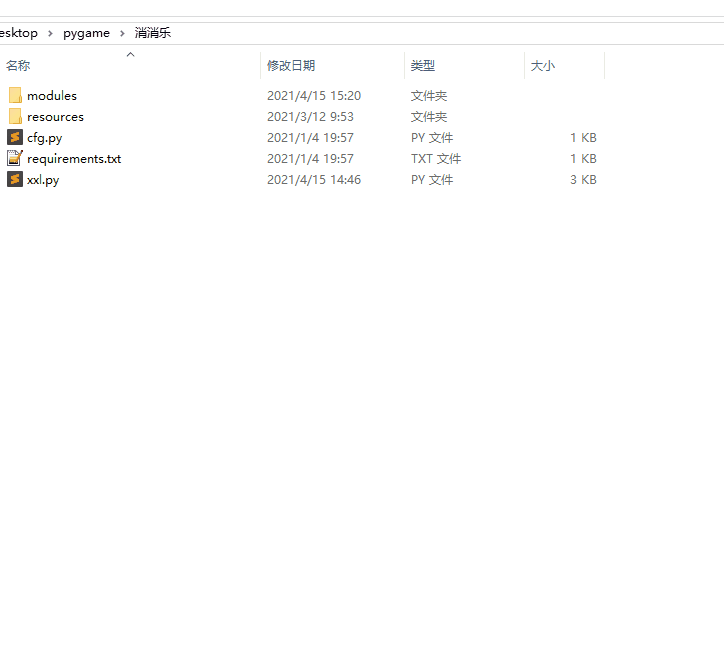

首先，先整理一下項目的主結構，其實看一下主結構，基本就清晰了
modules：相關定義的Python類位置 ——game.py:主模塊 res：存放引用到的圖片、音頻等等 ——audios:音頻資源 ——imgs:圖片資源 ——fonts：字體 cfg.py：為主配置文件 xxls.py：主程序文件 requirements.txt：需要引入的python依賴包
2、詳細配置
cfg.py
配置文件中，需要引入os模塊，并且配置打開游戲的屏幕大小。
'''主配置文件''' import os '''屏幕設置大小''' SCREENSIZE = (700, 700) '''元素尺寸''' NUMGRID = 8 GRIDSIZE = 64 XMARGIN = (SCREENSIZE[0] - GRIDSIZE * NUMGRID) // 2 YMARGIN = (SCREENSIZE[1] - GRIDSIZE * NUMGRID) // 2 '''獲取根目錄''' ROOTDIR = os.getcwd() '''FPS''' FPS = 30
3、消消樂所有圖形加載
game.py：第一部分
把整個項目放在一整個game.py模塊下了，把這個代碼文件拆開解讀一下。
拼圖精靈類：首先通過配置文件中，獲取方塊精靈的路徑，加載到游戲里。
定義move()移動模塊的函數，這個移動比較簡單。模塊之間，只有相鄰的可以相互移動。
'''
Function:
主游戲
'''
import sys
import time
import random
import pygame
'''拼圖精靈類'''
class pacerSprite(pygame.sprite.Sprite):
def __init__(self, img_path, size, position, downlen, **kwargs):
pygame.sprite.Sprite.__init__(self)
self.image = pygame.image.load(img_path)
self.image = pygame.transform.smoothscale(self.image, size)
self.rect = self.image.get_rect()
self.rect.left, self.rect.top = position
self.downlen = downlen
self.target_x = position[0]
self.target_y = position[1] + downlen
self.type = img_path.split('/')[-1].split('.')[0]
self.fixed = False
self.speed_x = 9
self.speed_y = 9
self.direction = 'down'
def move(self):
#下移
if self.direction == 'down':
self.rect.top = min(self.target_y, self.rect.top+self.speed_y)
if self.target_y == self.rect.top:
self.fixed = True
#上移
elif self.direction == 'up':
self.rect.top = max(self.target_y, self.rect.top-self.speed_y)
if self.target_y == self.rect.top:
self.fixed = True
#左移
elif self.direction == 'left':
self.rect.left = max(self.target_x, self.rect.left-self.speed_x)
if self.target_x == self.rect.left:
self.fixed = True
#右移
elif self.direction == 'right':
self.rect.left = min(self.target_x, self.rect.left+self.speed_x)
if self.target_x == self.rect.left:
self.fixed = True
'''獲取當前坐標'''
def getPosition(self):
return self.rect.left, self.rect.top
'''設置星星坐標'''
def setPosition(self, position):
self.rect.left, self.rect.top = position
4、隨機生成初始布局、相鄰消除、自動下落
game.py 第二部分
設置游戲主窗口啟動的標題，設置啟動游戲的主方法。
'''主游戲類''' class pacerGame(): def __init__(self, screen, sounds, font, pacer_imgs, cfg, **kwargs): self.info = 'pacer' self.screen = screen self.sounds = sounds self.font = font self.pacer_imgs = pacer_imgs self.cfg = cfg self.reset() '''開始游戲''' def start(self): clock = pygame.time.Clock() # 遍歷整個游戲界面更新位置 overall_moving = True # 指定某些對象個體更新位置 individual_moving = False # 定義一些必要的變量 pacer_selected_xy = None pacer_selected_xy2 = None swap_again = False add_score = 0 add_score_showtimes = 10 time_pre = int(time.time()) # 游戲主循環 while True: for event in pygame.event.get(): if event.type == pygame.QUIT or (event.type == pygame.KEYUP and event.key == pygame.K_ESCAPE): pygame.quit() sys.exit() elif event.type == pygame.MOUSEBUTTONUP: if (not overall_moving) and (not individual_moving) and (not add_score):position = pygame.mouse.get_pos()if pacer_selected_xy is None: pacer_selected_xy = self.checkSelected(position)else: pacer_selected_xy2 = self.checkSelected(position) if pacer_selected_xy2: if self.swappacer(pacer_selected_xy, pacer_selected_xy2): individual_moving = True swap_again = False else: pacer_selected_xy = None if overall_moving: overall_moving = not self.droppacers(0, 0) # 移動一次可能可以拼出多個3連塊 if not overall_moving: res_match = self.isMatch() add_score = self.removeMatched(res_match) if add_score > 0:overall_moving = True if individual_moving: pacer1 = self.getpacerByPos(*pacer_selected_xy) pacer2 = self.getpacerByPos(*pacer_selected_xy2) pacer1.move() pacer2.move() if pacer1.fixed and pacer2.fixed: res_match = self.isMatch() if res_match[0] == 0 and not swap_again:swap_again = Trueself.swappacer(pacer_selected_xy, pacer_selected_xy2)self.sounds['mismatch'].play() else:add_score = self.removeMatched(res_match)overall_moving = Trueindividual_moving = Falsepacer_selected_xy = Nonepacer_selected_xy2 = None self.screen.fill((135, 206, 235)) self.drawGrids() self.pacers_group.draw(self.screen) if pacer_selected_xy: self.drawBlock(self.getpacerByPos(*pacer_selected_xy).rect) if add_score: if add_score_showtimes == 10: random.choice(self.sounds['match']).play() self.drawAddScore(add_score) add_score_showtimes -= 1 if add_score_showtimes < 1: add_score_showtimes = 10 add_score = 0 self.remaining_time -= (int(time.time()) - time_pre) time_pre = int(time.time()) self.showRemainingTime() self.drawScore() if self.remaining_time <= 0: return self.score pygame.display.update() clock.tick(self.cfg.FPS)
5、隨機初始化消消樂的主圖內容
game.py 第三部分
詳細注釋，都寫在代碼里了。大家一定要看一遍，不要跑起來，就不管了哦
'''初始化'''
def reset(self):
# 隨機生成各個塊(即初始化游戲地圖各個元素)
while True:
self.all_pacers = []
self.pacers_group = pygame.sprite.Group()
for x in range(self.cfg.NUMGRID):
self.all_pacers.append([])
for y in range(self.cfg.NUMGRID):
pacer = pacerSprite(img_path=random.choice(self.pacer_imgs), size=(self.cfg.GRIDSIZE, self.cfg.GRIDSIZE), position=[self.cfg.XMARGIN+x*self.cfg.GRIDSIZE, self.cfg.YMARGIN+y*self.cfg.GRIDSIZE-self.cfg.NUMGRID*self.cfg.GRIDSIZE], downlen=self.cfg.NUMGRID*self.cfg.GRIDSIZE)
self.all_pacers[x].append(pacer)
self.pacers_group.add(pacer)
if self.isMatch()[0] == 0:
break
# 得分
self.score = 0
# 拼出一個的獎勵
self.reward = 10
# 時間
self.remaining_time = 300
'''顯示剩余時間'''
def showRemainingTime(self):
remaining_time_render = self.font.render('CountDown: %ss' % str(self.remaining_time), 1, (85, 65, 0))
rect = remaining_time_render.get_rect()
rect.left, rect.top = (self.cfg.SCREENSIZE[0]-201, 6)
self.screen.blit(remaining_time_render, rect)
'''顯示得分'''
def drawScore(self):
score_render = self.font.render('SCORE:'+str(self.score), 1, (85, 65, 0))
rect = score_render.get_rect()
rect.left, rect.top = (10, 6)
self.screen.blit(score_render, rect)
'''顯示加分'''
def drawAddScore(self, add_score):
score_render = self.font.render('+'+str(add_score), 1, (255, 100, 100))
rect = score_render.get_rect()
rect.left, rect.top = (250, 250)
self.screen.blit(score_render, rect)
'''生成新的拼圖塊'''
def generateNewpacers(self, res_match):
if res_match[0] == 1:
start = res_match[2]
while start > -2:
for each in [res_match[1], res_match[1]+1, res_match[1]+2]:
pacer = self.getpacerByPos(*[each, start])
if start == res_match[2]:self.pacers_group.remove(pacer)self.all_pacers[each][start] = None
elif start >= 0:pacer.target_y += self.cfg.GRIDSIZEpacer.fixed = Falsepacer.direction = 'down'self.all_pacers[each][start+1] = pacer
else:pacer = pacerSprite(img_path=random.choice(self.pacer_imgs), size=(self.cfg.GRIDSIZE, self.cfg.GRIDSIZE), position=[self.cfg.XMARGIN+each*self.cfg.GRIDSIZE, self.cfg.YMARGIN-self.cfg.GRIDSIZE], downlen=self.cfg.GRIDSIZE)self.pacers_group.add(pacer)self.all_pacers[each][start+1] = pacer
start -= 1
elif res_match[0] == 2:
start = res_match[2]
while start > -4:
if start == res_match[2]:
for each in range(0, 3):pacer = self.getpacerByPos(*[res_match[1], start+each])self.pacers_group.remove(pacer)self.all_pacers[res_match[1]][start+each] = None
elif start >= 0:
pacer = self.getpacerByPos(*[res_match[1], start])
pacer.target_y += self.cfg.GRIDSIZE * 3
pacer.fixed = False
pacer.direction = 'down'
self.all_pacers[res_match[1]][start+3] = pacer
else:
pacer = pacerSprite(img_path=random.choice(self.pacer_imgs), size=(self.cfg.GRIDSIZE, self.cfg.GRIDSIZE), position=[self.cfg.XMARGIN+res_match[1]*self.cfg.GRIDSIZE, self.cfg.YMARGIN+start*self.cfg.GRIDSIZE], downlen=self.cfg.GRIDSIZE*3)
self.pacers_group.add(pacer)
self.all_pacers[res_match[1]][start+3] = pacer
start -= 1
'''移除匹配的pacer'''
def removeMatched(self, res_match):
if res_match[0] > 0:
self.generateNewpacers(res_match)
self.score += self.reward
return self.reward
return 0
'''游戲界面的網格繪制'''
def drawGrids(self):
for x in range(self.cfg.NUMGRID):
for y in range(self.cfg.NUMGRID):
rect = pygame.Rect((self.cfg.XMARGIN+x*self.cfg.GRIDSIZE, self.cfg.YMARGIN+y*self.cfg.GRIDSIZE, self.cfg.GRIDSIZE, self.cfg.GRIDSIZE))
self.drawBlock(rect, color=(0, 0, 255), size=1)
'''畫矩形block框'''
def drawBlock(self, block, color=(255, 0, 255), size=4):
pygame.draw.rect(self.screen, color, block, size)
'''下落特效'''
def droppacers(self, x, y):
if not self.getpacerByPos(x, y).fixed:
self.getpacerByPos(x, y).move()
if x < self.cfg.NUMGRID - 1:
x += 1
return self.droppacers(x, y)
elif y < self.cfg.NUMGRID - 1:
x = 0
y += 1
return self.droppacers(x, y)
else:
return self.isFull()
'''是否每個位置都有拼圖塊了'''
def isFull(self):
for x in range(self.cfg.NUMGRID):
for y in range(self.cfg.NUMGRID):
if not self.getpacerByPos(x, y).fixed:
return False
return True
'''檢查有無拼圖塊被選中'''
def checkSelected(self, position):
for x in range(self.cfg.NUMGRID):
for y in range(self.cfg.NUMGRID):
if self.getpacerByPos(x, y).rect.collidepoint(*position):
return [x, y]
return None
'''是否有連續一樣的三個塊(無--返回0/水平--返回1/豎直--返回2)'''
def isMatch(self):
for x in range(self.cfg.NUMGRID):
for y in range(self.cfg.NUMGRID):
if x + 2 < self.cfg.NUMGRID:
if self.getpacerByPos(x, y).type == self.getpacerByPos(x+1, y).type == self.getpacerByPos(x+2, y).type:return [1, x, y]
if y + 2 < self.cfg.NUMGRID:
if self.getpacerByPos(x, y).type == self.getpacerByPos(x, y+1).type == self.getpacerByPos(x, y+2).type:return [2, x, y]
return [0, x, y]
'''根據坐標獲取對應位置的拼圖對象'''
def getpacerByPos(self, x, y):
return self.all_pacers[x][y]
'''交換拼圖'''
def swappacer(self, pacer1_pos, pacer2_pos):
margin = pacer1_pos[0] - pacer2_pos[0] + pacer1_pos[1] - pacer2_pos[1]
if abs(margin) != 1:
return False
pacer1 = self.getpacerByPos(*pacer1_pos)
pacer2 = self.getpacerByPos(*pacer2_pos)
if pacer1_pos[0] - pacer2_pos[0] == 1:
pacer1.direction = 'left'
pacer2.direction = 'right'
elif pacer1_pos[0] - pacer2_pos[0] == -1:
pacer2.direction = 'left'
pacer1.direction = 'right'
elif pacer1_pos[1] - pacer2_pos[1] == 1:
pacer1.direction = 'up'
pacer2.direction = 'down'
elif pacer1_pos[1] - pacer2_pos[1] == -1:
pacer2.direction = 'up'
pacer1.direction = 'down'
pacer1.target_x = pacer2.rect.left
pacer1.target_y = pacer2.rect.top
pacer1.fixed = False
pacer2.target_x = pacer1.rect.left
pacer2.target_y = pacer1.rect.top
pacer2.fixed = False
self.all_pacers[pacer2_pos[0]][pacer2_pos[1]] = pacer1
self.all_pacers[pacer1_pos[0]][pacer1_pos[1]] = pacer2
return True
'''信息顯示'''
def __repr__(self):
return self.info
5、資源相關
包括游戲背景音頻、圖片和字體設計
res主資源目錄
audios：加載游戲背景音樂
fonts：記分牌相關字體
imgs：這里存放的是我們的各種小星星的圖形，是關鍵了的哦。如果這個加載不了，
我們的消消樂 就沒有任何圖形了
6、啟動主程序
xxls.py
在主程序中，通過讀取配置文件，引入項目資源：包括圖片、音頻等，并從我們的modules里引入所有我們的模塊。
'''
Function:
消消樂
'''
import os
import sys
import cfg
import pygame
from modules import *
'''主程序'''
def main():
pygame.init()
screen = pygame.display.set_mode(cfg.SCREENSIZE)
pygame.display.set_caption('hacklex')
# 加載背景音樂
pygame.mixer.init()
pygame.mixer.music.load(os.path.join(cfg.ROOTDIR, "res/audios/bg.mp3"))
pygame.mixer.music.set_volume(0.6)
pygame.mixer.music.play(-1)
# 加載音效
sounds = {}
sounds['mismatch'] = pygame.mixer.Sound(os.path.join(cfg.ROOTDIR, 'res/audios/badswap.wav'))
sounds['match'] = []
for i in range(6):
sounds['match'].append(pygame.mixer.Sound(os.path.join(cfg.ROOTDIR, 'res/audios/match%s.wav' % i)))
# 字體顯示
font = pygame.font.Font(os.path.join(cfg.ROOTDIR, 'res/font/font.TTF'), 25)
# 星星
pacer_imgs = []
for i in range(1, 8):
pacer_imgs.append(os.path.join(cfg.ROOTDIR, 'res/imgs/pacer%s.png' % i))
# 循環
game = pacerGame(screen, sounds, font, pacer_imgs, cfg)
while True:
score = game.start()
flag = False
# 給出選擇，玩家選擇重玩或者退出
while True:
for event in pygame.event.get():
if event.type == pygame.QUIT or (event.type == pygame.KEYUP and event.key == pygame.K_ESCAPE):
pygame.quit()
sys.exit()
elif event.type == pygame.KEYUP and event.key == pygame.K_r:
flag = True
if flag:
break
screen.fill((136, 207, 236))
text0 = 'Final score: %s' % score
text1 = 'Press <R> to restart the game.'
text2 = 'Press <Esc> to quit the game.'
y = 150
for idx, text in enumerate([text0, text1, text2]):
text_render = font.render(text, 1, (85, 65, 0))
rect = text_render.get_rect()
if idx == 0:
rect.left, rect.top = (223, y)
elif idx == 1:
rect.left, rect.top = (133.5, y)
else:
rect.left, rect.top = (126.5, y)
y += 99
screen.blit(text_render, rect)
pygame.display.update()
game.reset()
'''游戲運行'''
if __name__ == '__main__':
main()
四、如何啟動游戲呢？

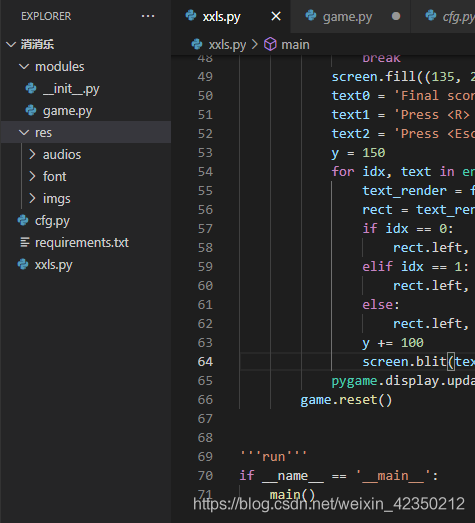

1、使用開發工具IDE啟動
如果的開發工具IDE的環境
例如：VScode、sublimeText、notepad+
pycharm什么的配置了Python環境
可以直接在工具中，運行該游戲。
2、命令行啟動
如下圖所示
以上就是使用python開發消消樂游戲流程分析 附完整源碼的詳細內容，更多關于python消消樂游戲的資料請關注本站其它相關文章！
