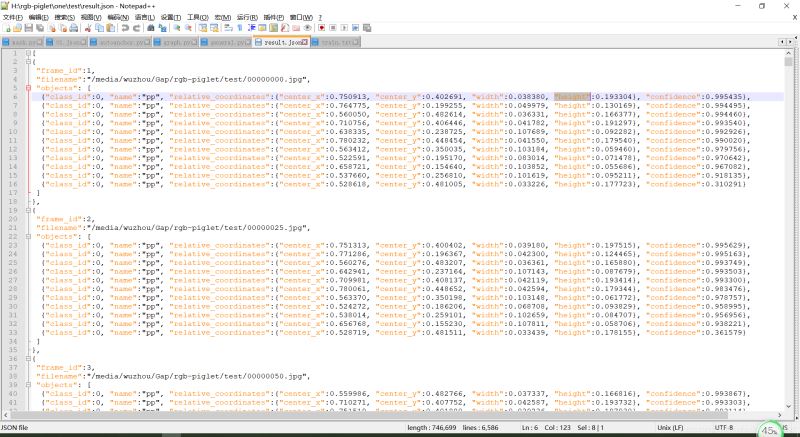

 "frame_id":1, #圖片的序號
 "filename":"/media/wuzhou/Gap/rgb-piglet/test/00000000.jpg", #圖片的路徑
 "objects": [ #該圖中所有的目標：目標類別、目標名稱、歸一化的框的坐標（xywh格式）、置信度
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.750913, "center_y":0.402691, "width":0.038380, "height":0.193304}, "confidence":0.995435},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.764775, "center_y":0.199255, "width":0.049979, "height":0.130169}, "confidence":0.994495},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.560050, "center_y":0.482614, "width":0.036331, "height":0.166377}, "confidence":0.994460},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.710756, "center_y":0.406446, "width":0.041782, "height":0.191297}, "confidence":0.993540},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.638335, "center_y":0.238725, "width":0.107689, "height":0.092282}, "confidence":0.992926},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.780232, "center_y":0.448454, "width":0.041550, "height":0.179540}, "confidence":0.990020},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.563412, "center_y":0.350035, "width":0.103184, "height":0.059460}, "confidence":0.979756},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.522591, "center_y":0.195170, "width":0.083014, "height":0.071478}, "confidence":0.970642},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.658721, "center_y":0.154640, "width":0.103852, "height":0.055686}, "confidence":0.967082},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.537660, "center_y":0.256810, "width":0.101619, "height":0.095211}, "confidence":0.918135},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.528618, "center_y":0.481005, "width":0.033226, "height":0.177723}, "confidence":0.310291}
 ]
},

import json
import time
import os
from PIL import Image
import cv2
import numpy as np
'''人為構造xml文件的格式'''
out0 ='''<annotation>
 <folder>%(folder)s</folder>
 <filename>%(name)s</filename>
 <path>%(path)s</path>
 <source>
  <database>None</database>
 </source>
 <size>
  <width>%(width)d</width>
  <height>%(height)d</height>
  <depth>3</depth>
 </size>
 <segmented>0</segmented>
'''
out1 = ''' <object>
  <name>%(class)s</name>
  <pose>Unspecified</pose>
  <truncated>0</truncated>
  <difficult>0</difficult>
  <bndbox>
<xmin>%(xmin)d</xmin>
<ymin>%(ymin)d</ymin>
<xmax>%(xmax)d</xmax>
<ymax>%(ymax)d</ymax>
  </bndbox>
 </object>
'''
out2 = '''</annotation>
'''
def read_json(json_dir):
 with open(json_dir,"r") as f:
  data = json.load(f)
  print(type(data),len(data),type(data[0]),data[0]['frame_id'])
 return data

'''txt轉xml函數'''
def translate(fdir,lists):
 source = {}
 label = {}
 data = read_json(fdir+"/result.json")
 k = 0
 for jpg in lists:
  print(jpg)
  if jpg[-4:] == '.jpg':
image= cv2.imread(jpg)#路徑不能有中文
h,w,_ = image.shape #圖片大小

fxml = jpg.replace('.jpg','.xml')
fxml = open(fxml, 'w');
imgfile = jpg.split('/')[-1]
source['name'] = imgfile
source['path'] = jpg
source['folder'] = os.path.basename(fdir)
source['width'] = w
source['height'] = h

fxml.write(out0 % source)

for obj in data[k]["objects"]:
 label['class'] = obj["class_id"]
 box = obj["relative_coordinates"]

 '''把txt上的數字（歸一化）轉成xml上框的坐標'''
 xmin = float(box["center_x"] - 0.5*box["width"])*w
 ymin = float(box["center_y"] - 0.5*box["height"])*h
 xmax = float(xmin + box["width"]*w)
 ymax = float(ymin + box["height"]*h)

 label['xmin'] = xmin
 label['ymin'] = ymin
 label['xmax'] = xmax
 label['ymax'] = ymax

 fxml.write(out1 % label)

k = k+1
fxml.write(out2)
if __name__ == '__main__':
 file_dir = "H:/rgb-piglet/five/test"
 lists=[]
 for i in os.listdir(file_dir):
  if i[-3:]=='jpg':
lists.append(file_dir+'/'+i)
 #print(lists)
 translate(file_dir,lists)
 print('---------------Done!!!--------------')
