[server default]
manager_workdir=/var/log/masterha/app1.log  //設置manager的工作目錄
manager_log=/var/log/masterha/app1/manager.log //設置manager的日志
master_binlog_dir=/data/mysql //設置master 保存binlog的位置，以便MHA可以找到master的日志，我這里的也就是mysql的數據目錄
master_ip_failover_script= /usr/local/bin/appxxx_master_ip_failover //設置自動failover時候的切換腳本
master_ip_online_change_script= /usr/local/bin/appxxx_master_ip_online_change  //設置手動切換時候的切換腳本
password=用戶密碼//設置mysql中root用戶的密碼，這個密碼是前文中創建監控用戶的那個密碼
user=root設置監控用戶root
ping_interval=1//設置監控主庫，發送ping包的時間間隔，默認是3秒，嘗試三次沒有回應的時候自動進行railover
remote_workdir=/tmp  //設置遠端mysql在發生切換時binlog的保存位置
repl_password=用戶密碼 //設置復制用戶的密碼
repl_user=repl //設置復制環境中的復制用戶名
report_script=/usr/local/send_report //設置發生切換后發送的報警的腳本
shutdown_script=""http://設置故障發生后關閉故障主機腳本（該腳本的主要作用是關閉主機放在發生腦裂,這里沒有使用）
ssh_user=root  //設置ssh的登錄用戶名
[server1]
hostname=110.110.110.50
port=3306
[server2]
hostname=110.110.110.60
port=3306
candidate_master=1//設置為候選master，如果設置該參數以后，發生主從切換以后將會將此從庫提升為主庫，即使這個主庫不是集群中事件最新的slave
check_repl_delay=0//默認情況下如果一個slave落后master 100M的relay logs的話，MHA將不會選擇該slave作為一個新的master，因?yàn)閷?duì)于這個slave的恢復需要花費很長時間，通過設置check_repl_delay=0,MHA觸發切換在選擇一個新的master的時候?qū)?huì)忽略復制延時，這個參數對于設置了candidate_master=1的主機非常有用，因?yàn)檫@個候選主在切換的過程中一定是新的master
[server3]
hostname=110.110.110.70
port=3306

create table `mysqldb_mha_info` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
mha_manager_ip varchar(50) NOT NULL DEFAULT '' COMMENT 'MHA管理節點所在集群的IP',
mha_name varchar(50) NOT NULL DEFAULT '' COMMENT 'MHA的名字，類似于副本集',
mha_file_name varchar(250) NOT NULL DEFAULT '' COMMENT 'MHA .cnf 配置文件名字',
mha_name_path varchar(250) NOT NULL DEFAULT '' COMMENT 'MHA .cnf 配置文件路徑和名字',
  `cnf_server1_ip` varchar(50) NOT NULL DEFAULT '' COMMENT 'MHA cnf 配置文件中的節點1',
  `cnf_server2_ip` varchar(50) NOT NULL DEFAULT '' COMMENT 'MHA cnf 配置文件中的節點2',
  `cnf_server3_ip` varchar(50) NOT NULL DEFAULT '' COMMENT 'MHA cnf 配置文件中的節點3',
failover_script varchar(250) NOT NULL DEFAULT '' COMMENT 'MHA failover scripts的文件',
failover_script_vip varchar(50) NOT NULL DEFAULT '' COMMENT 'MHA failover scripts 中定義的VIP',
online_script varchar(250) NOT NULL DEFAULT '' COMMENT 'MHA online change scripts的文件',
online_script_vip varchar(50) NOT NULL DEFAULT '' COMMENT 'MHA online change scripts 中定義的VIP',
script_remark varchar(1500) NOT NULL DEFAULT '' COMMENT 'MHA scripts VIP 檢查結果',
masterha_status varchar(10) NOT NULL DEFAULT '' COMMENT 'MHA 檢查是否開啟,來自于 masterha_check_status 檢查結果',
master_serverip varchar(50) NOT NULL DEFAULT '' COMMENT 'MHA 檢查是否開啟,來自于 masterha_check_status 檢查結果',
  `current_master_ip` varchar(50) NOT NULL DEFAULT '' COMMENT 'MHA 當前主節點,來自check_repl',
  `mha_current_vip` varchar(50) NOT NULL DEFAULT '' COMMENT 'MHA 當前VIP ,來自check_repl',
 `slave1_ip` varchar(50) NOT NULL DEFAULT '' COMMENT 'MHA 當前從節點1,來自check_repl',
  `slave2_ip` varchar(50) NOT NULL DEFAULT '' COMMENT 'MHA 當前從節點2 ,來自check_repl',
  mha_cnf_remark varchar(1500) NOT NULL DEFAULT '' COMMENT 'MHA check conf/cnf 檢查結果',
  check_repl_remark varchar(1500) NOT NULL DEFAULT '' COMMENT 'MHA check repl檢查結果',
  remark varchar(1500) NOT NULL DEFAULT '' COMMENT 'MHA 檢查結果',
  `creator` varchar(50) NOT NULL DEFAULT '',
  `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
  `operator` varchar(50) NOT NULL DEFAULT '',
  `modify_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
 PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8mb4

#!/usr/bin/python3
# -*- coding: UTF-8 -*-
##import MySQLdb 安裝模塊麻煩
import mysql.connector
db = mysql.connector.connect(user='nideuid', password='nidepwd',host='nideseverip',database='DBname',port=XXXX)

#!/usr/bin/python
# -*- coding: UTF-8 -*-
import os
import io
import re
import ConfigParser
import socket
import db_conn
mysqldb = db_conn.db
cursor = mysqldb.cursor()

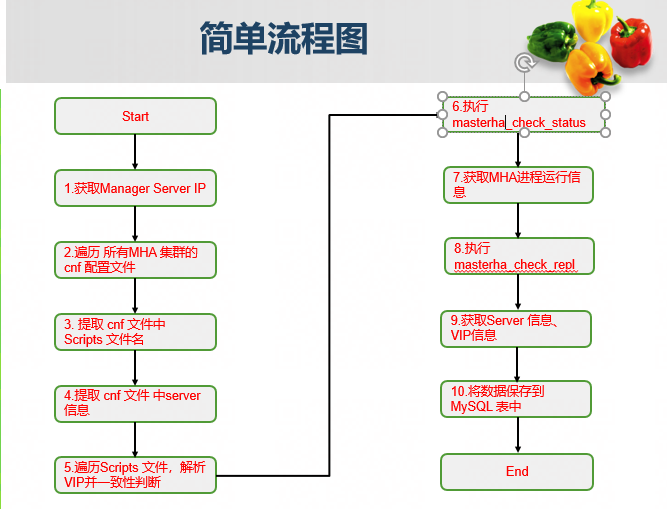

## 第1部分 獲取本機IP
try:
  s=socket.socket(socket.AF_INET,socket.SOCK_DGRAM)
  s.connect(('8.8.8.8',80))
  mha_manager_ip=s.getsockname()[0]
  print('mha manager 所在主機的IP如下:')
  print(mha_manager_ip)
finally:
  s.close()
###
##第2部分: 循環遍歷mha cnf 所在的文件夾，取出 cnf 進行判斷和檢查
Path='/date/funcation/python/mha_conf'
#fout=open('輸出文件名','w')
for Name in os.listdir(Path) :
  Pathname= os.path.join(Path,Name)
 ## print(Pathname)
 ## print(Name)
  mha_name = Name.replace(".cnf", "").replace(".conf", "") ###為MHA集群啟個名字
  ##print(mha_name)
  ##注意此處為r,不能為w,否則報錯:IOError: File not open for reading
  with open(Pathname,'r') as f:
 filecontent=f.read()
 #print(filecontent)
 remark = ''
 ####調整為ConfigParser,注意python2 和 python 的模塊名字是不一樣的.ConfigParser與configparser
 config =ConfigParser.ConfigParser()
 try:
config.read(Pathname)
server_item = config.sections()
##print(server_item)
### start 獲取 MHA 切換時的scripts 文件名字
mha_failover_script = ''
mha_online_change_script =''
mha_cnf_remark =''
if 'server default' in server_item:
  mha_failover_script = config.get('server default','master_ip_failover_script')
  ###
  mha_failover_script=mha_failover_script.replace(" --ssh_user=root", "")
  ##print(mha_failover_script)
else:
  mha_cnf_remark = mha_cnf_remark + 'mha_failover_script 未配置;'
if 'server default' in server_item:
  mha_online_change_script = config.get('server default','master_ip_online_change_script')
  ##print(mha_online_change_script)
else:
  mha_cnf_remark = mha_cnf_remark + 'mha_online_change_script 未配置;'
###1.1 end  獲取結束
##1.2 start 獲取MHA配置文件中的節點信息
server1_host = ''  ##MHA cnf 配置文件中的節點1
server2_host = ''  ##MHA cnf 配置文件中的節點2
server3_host = ''  ##MHA cnf 配置文件中的節點3
if 'server1' in server_item:
  server1_host = config.get('server1','hostname')
  print(server1_host)
else:
server1_host = ''
mha_cnf_remark = mha_cnf_remark + 'Server1未配置;'
print(server1_host)
if 'server2' in server_item:
  server2_host = config.get('server2','hostname')
  print(server2_host)
else:
  server2_host = ''
  mha_cnf_remark = mha_cnf_remark + 'Server2未配置;'
  print(server2_host)
if 'server3' in server_item:
  server3_host = config.get('server3','hostname')
  print(server3_host)
##else:
  ##server3_host = ''
  ##mha_cnf_remark = mha_cnf_remark + 'Server3未配置;'
  ##print(server3_host)
##1.2 獲取server節點信息結束
print(mha_cnf_remark)
 except Exception as e:
print(e)
 #####第3部分 start 從 mha scripts 中提取 配置的VIP
 mha_remark = ''
 mha_failover_my_vip = ''
 mha_failover_flush_vip = ''
 mha_onlinechange_my_vip = ''
 mha_onlinechange_flush_vip =''
 if len(mha_failover_script) <> 0 and len(mha_online_change_script) <> 0 :
##3.1 先來處置 failover_script，解析其中的VIP
with open(mha_failover_script,'r') as f:
  failscript_lines=f.readlines()
  for failscript_line in failscript_lines:
 failscript_ip=re.findall(r"\b(?:(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)\.){3}(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)\b", failscript_line)
 if failscript_ip:
if 'my $vip =' in failscript_line:
  mha_failover_my_vip = failscript_ip[0]
  print('解析出mha_failover_my_vip:')
  print(mha_failover_my_vip)
if  'my $ssh_flush_vip' in failscript_line:
  mha_failover_flush_vip = failscript_ip[0]
  print('解析出mha_failover_flush_vip:')
  print(mha_failover_flush_vip)
  ##文件讀取完畢，對讀取結果進行判斷，判斷兩種情況
  ## 一種是否未定義
  if mha_failover_my_vip =='':
 mha_remark = mha_remark + 'MHA failover  未提取到VIP的設置，請檢查；'
  ## 另外一種，，定義了，但是值不相等
  if mha_failover_my_vip <> mha_failover_flush_vip:
 mha_remark = mha_remark + 'MHA failover scripts文件中設置的兩處VIP不一致，請檢查；'
## 3.2 處理online change scripts ,解析提取其中的VIP信息
with open(mha_online_change_script,'r') as f:
  onlinescript_lines=f.readlines()
  for onlinescript_line in onlinescript_lines:
 onlinescript_ip=re.findall(r"\b(?:(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)\.){3}(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)\b", onlinescript_line)
 if onlinescript_ip:
if 'my $vip =' in onlinescript_line:
  mha_onlinechange_my_vip = onlinescript_ip[0]
  print('解析出mha_onlinechange_my_vip:')
  print(mha_onlinechange_my_vip)
if  'my $ssh_flush_vip' in onlinescript_line:
  mha_onlinechange_flush_vip = onlinescript_ip[0]
  print('解析出mha_onlinechange_flush_vip:')
  print(mha_onlinechange_flush_vip)
  #### online change 文件讀完了，判斷定義的VIP是否符合要求
  if mha_onlinechange_my_vip =='':
 mha_remark = mha_remark + 'MHA online change scripts未提取到VIP的設置，請檢查；'
  if mha_onlinechange_my_vip <> mha_onlinechange_flush_vip:
 mha_remark = mha_remark + 'MHA online change scripts文件中設置的兩處VIP不一致，請檢查；'
#### 兩個文件都讀取了，判斷兩個文件中定義的VIP是否一致
if mha_onlinechange_my_vip <> mha_failover_my_vip:
  mha_remark = mha_remark + 'MHA online change script  和 failover script 中的VIP不一致,請檢查。'
 else:
mha_remark = mha_remark + 'MHA init 的配置文件未正確定義切換的scripts,請檢查。'
#print('MHA init 的配置文件未正確定義 切換的scripts,請檢查。')
print(mha_remark)
 #####第2部分 end 從 mha scripts 中提取 配置的VIP
 #### 第4部分，從masterha_check_status執行結果中判斷mha進程狀態
 ## 從 執行masterha_check_status結果中解析出的  masterha_status 和 master_serverip 的數據
 masterha_status =''
 master_serverip =''
 ## 從 執行masterha_check_repl結果中解析出的 current_master 、current_slave1、current_slave2 和 mha_current_vip 的數據
 current_master = ''
 current_slave1 = ''
 current_slave2 = ''
 mha_current_vip =''
 ##判斷下文件是否是MHA的配置文件，判斷方式就是文件中 必須有 server default\server1的sections
 if 'server default' in server_item and 'server1' in server_item :
##cmd_mha_status ='/usr/local/bin/masterha_check_status --conf=/etc/mha/opszabbix.cnf'
cmd_mha_status ='/usr/local/bin/masterha_check_status --conf='+Pathname
try:
  mha_status=os.popen(cmd_mha_status)
  mha_status_result = mha_status.read()
  print(mha_status_result)  ##返回樣式為 XXXX (pid:------) is running(0:PING_OK), master:XXX.XXX.XXX.XXX
  ### 判斷狀態是否為運行中
  if 'running(0:PING_OK)' in mha_status_result:
 masterha_status='Running'
 ##抓取MHA的Master 節點
 ##master_serverip = mha_status_result[mha_status_result.rfind('master:'):]
 master_serverip = mha_status_result.split('master:')[1]
 print(master_serverip)
 print('MHA啟動運行正常')
  elif 'stopped(2:NOT_RUNNING)' in mha_status_result:
 masterha_status='stopped'
 print('MHA未啟動!!!')
finally:
if mha_status:
mha_status.close()
#### 第5部分，從masterha_check_repl的執行結果中，判斷解析 主、從節點、VIP節點
##  判斷 副本集 的狀況
cmd_repl_status ='/usr/local/bin/masterha_check_repl --conf='+Pathname
try:
  ##### 添加 2> error 參數,不需要打印出調試信息。
  cmd_repl_status_result = cmd_repl_status + '  2> checkrepl.log'
  repl_status=os.popen(cmd_repl_status_result)
  repl_status_result = repl_status.read()
  ##print(repl_status_result)
  if 'MySQL Replication Health is OK' in repl_status_result:
 print('MHA集群的主從正常')
 ###獲取ServerIP
 #######調試信息是輸出到2號流中的，所以一定 添加 2>&1，否則抓取不到節點信息，只能抓到一個VIP。
 cmd_repl_status_info = cmd_repl_status + '  2>&1'
 with os.popen(cmd_repl_status_info,'r') as repl_status_check2:
#repl_status_lines=repl_status_check2.readlines()
repl_status_lines=repl_status_check2.readlines()
##print(len(repl_status_lines))  ####打印出list的元素個數
for repl_status_line in repl_status_lines:
  ##print('##################  start###########################')
  ##print(str(repl_status_line).replace("\n", "").replace("\t", ""))
  ##repl_status_line ='Current Alive Master: 10.200.58.63(10.200.58.63:55988)'
  serverip_result=re.findall(r"\b(?:(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)\.){3}(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)\b", repl_status_line)
  if serverip_result:
 if 'Current Alive Master:' in repl_status_line:
current_master = serverip_result[0]
print('已解析到主節點IP')
print(current_master)
 elif 'Checking replication health on' in repl_status_line and current_slave1 == '':###有可能有2個從節點，此處為第1個從節點
current_slave1 = serverip_result[0]
print('已解析到從節點1')
print(current_slave1)
 elif 'Checking replication health on' in repl_status_line and current_slave1 <> '':  ###有可能有2個從節點，此處為第2個從節點
current_slave2 = serverip_result[0]
print('已解析到從節點2')
print(current_slave2)
 elif 'Checking replication health on' in repl_status_line and current_slave1 <> '':  ###有可能有2個從節點，此處為第2個從節點
print('集群有3個或更多的從節點，請確認。')
 if 'down==/sbin/ifconfig ' in repl_status_line:
mha_current_vip = serverip_result[0]
print('已解析到MHA集群的VIP')
print(mha_current_vip)
 ##print('包含serverip')
 ##print(serverip_result)
  #else:
 #print('不包含ServerIP')
##else:
  ##print(repl_status_line)
  ##print('##################  end###########################')
 ####獲取IP部分結束
  else:
 print('MHA集群的主從異常,請及時檢查')
finally:
if repl_status:
repl_status.close()
 else:
 remark = Pathname + '...... 不是MHA的配置文件,請檢查!'
 print(remark)

 ##### 第6部分，將數據保存到表中
 sql_insert = "insert into mysqldb_mha_info(mha_manager_ip,mha_name,mha_file_name,mha_name_path,cnf_server1_ip,cnf_server2_ip,cnf_server3_ip,failover_script,failover_script_vip,online_script,online_script_vip,masterha_status,master_serverip,current_master_ip,mha_current_vip,slave1_ip,slave2_ip,mha_cnf_remark,script_remark,remark) " \
 "values('%s','%s','%s','%s','%s','%s','%s','%s','%s','%s','%s','%s','%s','%s','%s','%s','%s','%s','%s','%s')" % \
 (mha_manager_ip,mha_name,Name,Pathname,server1_host,server2_host,server3_host,mha_failover_script,mha_failover_my_vip,mha_online_change_script,mha_onlinechange_my_vip,masterha_status,current_master,master_serverip,mha_current_vip,current_slave1,current_slave2,mha_cnf_remark,mha_remark,remark)
 ##print(sql_insert)
 cursor.execute(sql_insert)
 mysqldb.commit()
 #####

# 關閉游標
cursor.close()
# 關閉數據庫連接
mysqldb.close()

python /data/XXXX路徑/collect_mysqldbmha_info.py
