Python K-means實現簡單圖像聚類的示例代碼
這里直接給出第一個版本的直接實現：
import os
import numpy as np
from sklearn.cluster import KMeans
import cv2
from imutils import build_montages
import matplotlib.image as imgplt
image_path = []
all_images = []
images = os.listdir('./images')
for image_name in images:
image_path.append('./images/' + image_name)
for path in image_path:
image = imgplt.imread(path)
image = image.reshape(-1, )
all_images.append(image)
clt = KMeans(n_clusters=2)
clt.fit(all_images)
labelIDs = np.unique(clt.labels_)
for labelID in labelIDs:
idxs = np.where(clt.labels_ == labelID)[0]
idxs = np.random.choice(idxs, size=min(25, len(idxs)),
replace=False)
show_box = []
for i in idxs:
image = cv2.imread(image_path[i])
image = cv2.resize(image, (96, 96))
show_box.append(image)
montage = build_montages(show_box, (96, 96), (5, 5))[0]
title = "Type {}".format(labelID)
cv2.imshow(title, montage)
cv2.waitKey(0)
主要需要注意的問題是對K-Means原理的理解。K-means做的是對向量的聚類，也就是說，假設要處理的是224×224×3的RGB圖像，那么就得先將其轉為1維的向量。在上面的做法里，我們是直接對其展平：
image = image.reshape(-1, )

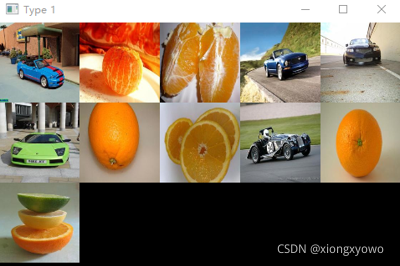

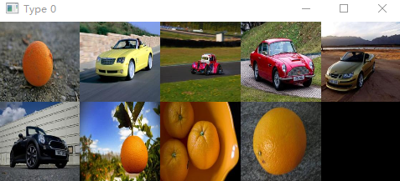

那么這么做的缺陷也是十分明顯的。例如，對于兩張一模一樣的圖像，我們將前者向左平移一個像素。這么做下來后兩張圖像在感官上幾乎沒有任何區別，但由于整體平移會導致兩者的圖像矩陣逐像素比較的結果差異巨大。以橘子汽車聚類為例，實驗結果如下：
可以看到結果是比較差的。因此，我們進行改進，利用ResNet-50進行圖像特征的提取(embedding)，在特征的基礎上聚類而非直接在像素上聚類，代碼如下：
import os
import numpy as np
from sklearn.cluster import KMeans
import cv2
from imutils import build_montages
import torch.nn as nn
import torchvision.models as models
from PIL import Image
from torchvision import transforms
class Net(nn.Module):
def __init__(self):
super(Net, self).__init__()
resnet50 = models.resnet50(pretrained=True)
self.resnet = nn.Sequential(resnet50.conv1,
resnet50.bn1,
resnet50.relu,
resnet50.maxpool,
resnet50.layer1,
resnet50.layer2,
resnet50.layer3,
resnet50.layer4)
def forward(self, x):
x = self.resnet(x)
return x
net = Net().eval()
image_path = []
all_images = []
images = os.listdir('./images')
for image_name in images:
image_path.append('./images/' + image_name)
for path in image_path:
image = Image.open(path).convert('RGB')
image = transforms.Resize([224,244])(image)
image = transforms.ToTensor()(image)
image = image.unsqueeze(0)
image = net(image)
image = image.reshape(-1, )
all_images.append(image.detach().numpy())
clt = KMeans(n_clusters=2)
clt.fit(all_images)
labelIDs = np.unique(clt.labels_)
for labelID in labelIDs:
idxs = np.where(clt.labels_ == labelID)[0]
idxs = np.random.choice(idxs, size=min(25, len(idxs)),
replace=False)
show_box = []
for i in idxs:
image = cv2.imread(image_path[i])
image = cv2.resize(image, (96, 96))
show_box.append(image)
montage = build_montages(show_box, (96, 96), (5, 5))[0]
title = "Type {}".format(labelID)
cv2.imshow(title, montage)
cv2.waitKey(0)

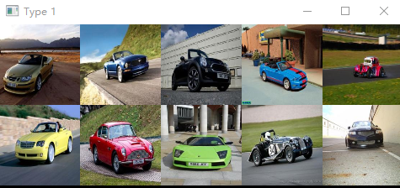

可以發現結果明顯改善：
到此這篇關于Python K-means實現簡單圖像聚類的示例代碼的文章就介紹到這了,更多相關Python K-means圖像聚類內容請搜索本站以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持本站！
