Python PyQt5實戰項目之查詢器的實現流程詳解
發布日期：2021-12-13 05:17 | 文章來源：站長之家
簡介
這是一個操作數據庫（sqlite3）的項目，用PyQt5進行界面封裝。
此次項目最主要的是，主界面與子界面的交互,一個主界面與三個子界面交互
可以添加數據，修改數據，刪除數據

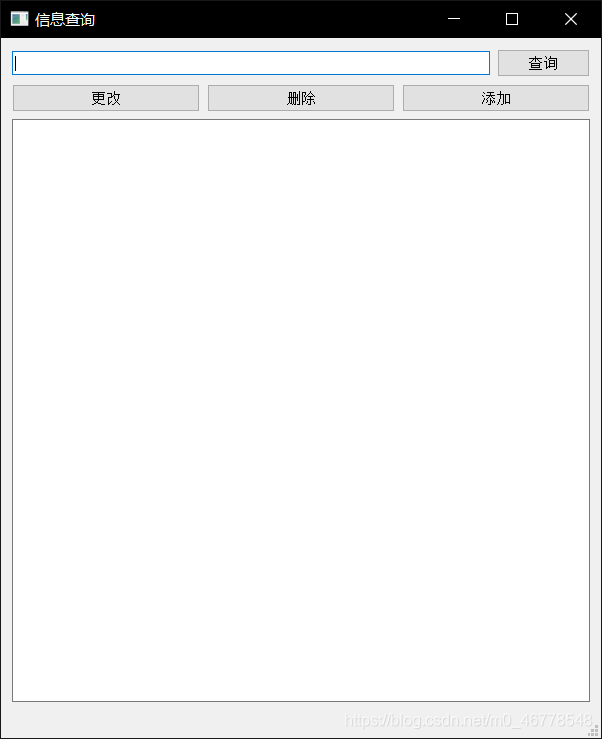

主界面
class MainWidget(QMainWindow):
def __init__(self):
super(MainWidget,self).__init__()
self.ui_init()
self.connect_init()
self.sql_init()
def ui_init(self):
self.setWindowTitle('信息查詢')
self.resize(600,700)
self.addwidget = AddWidget()
self.deletewidget = DeleteWidget()
self.updatewidget = UpdateWidget()
self.show_view = QTextBrowser()
self.find_text = QLineEdit()
self.find_btn = QPushButton()
self.find_btn.setText('查詢')
self.update_btn = QPushButton()
self.update_btn.setText('更改')
self.delete_btn = QPushButton()
self.delete_btn.setText('刪除')
self.add_btn = QPushButton()
self.add_btn.setText('添加')
self.status_bar = self.statusBar()
self.widget = QWidget()
self.h1_layout = QHBoxLayout()
self.h2_layout = QHBoxLayout()
self.v_layout = QVBoxLayout()
self.h1_layout.addWidget(self.find_text)
self.h1_layout.addWidget(self.find_btn)
self.h2_layout.addWidget(self.update_btn)
self.h2_layout.addWidget(self.delete_btn)
self.h2_layout.addWidget(self.add_btn)
self.v_layout.addLayout(self.h1_layout)
self.v_layout.addLayout(self.h2_layout)
self.v_layout.addWidget(self.show_view)
self.widget.setLayout(self.v_layout)
self.setCentralWidget(self.widget)
def connect_init(self):
'''
信號與槽
'''
'''查詢功能'''
self.find_btn.clicked.connect(lambda:self.find_slot(self.find_text.text()))
'''添加功能'''
self.add_btn.clicked.connect(self.add_slot)
self.addwidget.add_close_signal.connect(lambda:self.setEnabled(True))
self.addwidget.add_start_signal.connect(self.add_start_slot)
'''刪除功能'''
self.delete_btn.clicked.connect(self.delete_slot)
self.deletewidget.delete_close_signal.connect(lambda:self.setEnabled(True))
self.deletewidget.delete_start_signal.connect(self.delete_start_slot)
'''更新功能'''
self.update_btn.clicked.connect(self.update_slot)
self.updatewidget.update_close_signal.connect(lambda:self.setEnabled(True))
self.updatewidget.update_name_signal.connect(self.update_name_slot)
self.updatewidget.update_show_signal.connect(self.update_show_slot)
def sql_init(self):
'''
sqllite3初始化
'''
try:
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('select * from design')
cursor.close()
conn.close()
except:
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('create table design (id integer PRIMARY KEY AUTOINCREMENT,name varchar(20),show varchar(100))')
cursor.close()
conn.close()
'''查詢槽'''
def find_slot(self,content):
try:
result = self.find_func(content)
self.status_bar.showMessage('查詢成功')
if result:
self.show_view.append('<font size="5" color="red">共查詢 {} 條數據</font>'.format(len(result)))
for i in range(len(result)):
self.show_view.append('id:' + str(result[i][0]))
self.show_view.append('名稱：' + result[i][1])
self.show_view.append('說明：' + result[i][2])
else:
self.show_view.append('<font size="5" color="red">共查詢 {} 條數據</font>'.format(len(result)))
except Exception as e:
self.status_bar.showMessage('查詢失敗')
print(e)
'''添加槽'''
def add_slot(self):
self.addwidget.show()
self.setEnabled(False)
def add_start_slot(self,name,show):
try:
self.insert_func(name,show)
self.status_bar.showMessage('添加成功')
except Exception as e:
self.status_bar.showMessage('添加失敗')
self.setEnabled(True)
self.addwidget.name_text.clear()
self.addwidget.show_text.clear()
self.addwidget.close()
'''刪除槽'''
def delete_slot(self):
self.deletewidget.show()
self.setEnabled(False)
def delete_start_slot(self,id):
try:
self.delete_func(id)
self.reset_func()
self.status_bar.showMessage('刪除成功')
except Exception as e:
self.status_bar.showMessage('刪除失敗')
self.setEnabled(True)
self.deletewidget.close()
'''更新槽'''
def update_slot(self):
self.updatewidget.show()
self.setEnabled(False)
def update_name_slot(self,id,name):
try:
self.update_name_func(id,name)
self.status_bar.showMessage('更新名稱成功')
except Exception as e:
self.status_bar.showMessage('更新名稱失敗')
self.setEnabled(True)
self.updatewidget.close()
def update_show_slot(self,id,name):
try:
self.update_show_func(id,name)
self.status_bar.showMessage('更新名稱成功')
except Exception as e:
self.status_bar.showMessage('更新名稱失敗')
self.setEnabled(True)
self.updatewidget.close()
'''數據庫函數'''
def insert_func(self,name,show):
'''
插入信息
'''
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('insert into design (id,name,show) values (null,"{}","{}")'.format(name,show))
cursor.close()
conn.commit()
conn.close()
def find_func(self,content):
'''
查詢信息
'''
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('SELECT * FROM design WHERE name LIKE "%{}%"'.format(content))
result1 = cursor.fetchall()
cursor.close()
conn.close()
return result1
def count_func(self):
'''
信息數目
'''
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('select * from design')
result = cursor.fetall()
count = len(result)
cursor.close()
conn.close()
return count
def update_name_func(self,id,name):
'''
更新名稱信息
'''
print(id,name)
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('update design set name = ? where id = ?',(name,id))
cursor.close()
conn.commit()
conn.close()
def update_show_func(self,id,name):
'''
更新說明信息
'''
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('update design set show = ? where id = ?',(name,id))
cursor.close()
conn.commit()
conn.close()
def delete_func(self,id):
'''
刪除信息
'''
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('delete from design where id = ?',(id,))
cursor.close()
conn.commit()
conn.close()
def reset_func(self):
'''
自增列歸零
'''
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute("DELETE FROM sqlite_sequence WHERE name = 'design'")
cursor.close()
conn.commit()
conn.close()
這個類包括主界面，數據庫操作的函數，與其他界面操作的函數
當子界面打開時，主界面不可使用
子界面向主界面發送信號，功能實現代碼都寫在主界面類中
子界面需要在主界面聲明，例如：self.addwidget = AddWidget()
添加功能槽
'''添加槽'''
def add_slot(self):
self.addwidget.show()
self.setEnabled(False)
def add_start_slot(self,name,show):
try:
self.insert_func(name,show)
self.status_bar.showMessage('添加成功')
except Exception as e:
self.status_bar.showMessage('添加失敗')
self.setEnabled(True)
self.addwidget.name_text.clear()
self.addwidget.show_text.clear()
self.addwidget.close()
def add_slot(self): self.addwidget.show() self.setEnabled(False)
這個函數是用來啟動添加界面和將主界面設置為不可用狀態
def add_start_slot(self,name,show):
try:
self.insert_func(name,show)
self.status_bar.showMessage('添加成功')
except Exception as e:
self.status_bar.showMessage('添加失敗')
self.setEnabled(True)
self.addwidget.name_text.clear()
self.addwidget.show_text.clear()
self.addwidget.close()
這個函數是添加功能的主要實現，調用數據庫插入函數，數據插入完畢后，清除添加子界面的文本，最后關閉添加子界面。其他功能槽大同小異
def reset_func()
def reset_func(self):
'''
自增列歸零
'''
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute("DELETE FROM sqlite_sequence WHERE name = 'design'")
cursor.close()
conn.commit()
conn.close()
這個函數作用不是很大
只是將sqlite3數據庫自帶的系統表，數據庫被創建時，sqlite_sequence表會被自動創建，該表包括兩列。第一列為name，用來存儲表的名稱。第二列為seq，用來保存表對應的RowID的最大值，當對應的表增加記錄，該表會自動更新。當表刪除，該表對應的記錄也會自動刪除。
本來我是想當有數據刪除時，ID值能重新更新，可是這個方法，只有當表內數據全部刪除時，ID才會重新開始

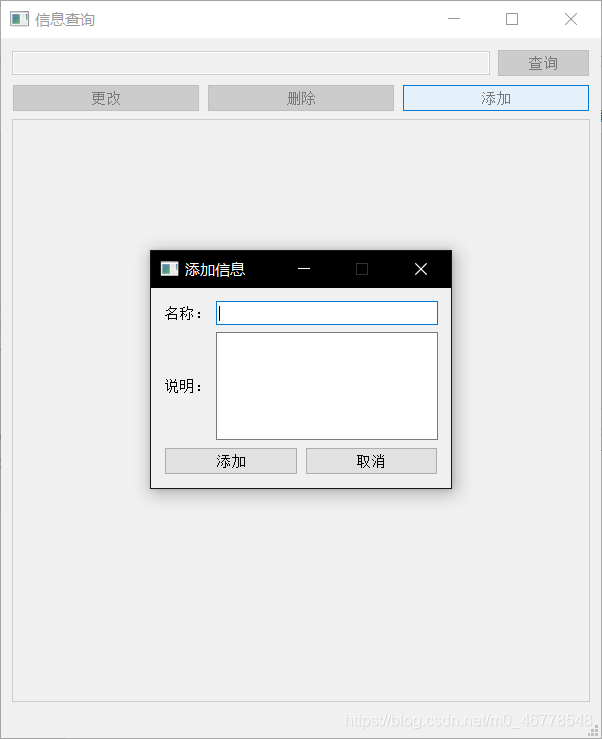

添加數據的界面
class AddWidget(QWidget):
'''
添加功能界面
'''
add_start_signal = pyqtSignal(str,str)
add_close_signal = pyqtSignal()
def __init__(self):
super(AddWidget,self).__init__()
self.ui_init()
self.connect_init()
def ui_init(self):
self.setWindowTitle('添加信息')
self.setFixedSize(300,200)
self.name_text = QLineEdit()
self.show_text = QTextEdit()
self.start_btn = QPushButton()
self.start_btn.setText('添加')
self.cancel_btn = QPushButton()
self.cancel_btn.setText('取消')
self.name_label = QLabel()
self.name_label.setText('名稱：')
self.show_label = QLabel()
self.show_label.setText('說明：')
self.h1_layout = QHBoxLayout()
self.h2_layout = QHBoxLayout()
self.h3_layout = QHBoxLayout()
self.v_layout = QVBoxLayout()
self.h1_layout.addWidget(self.name_label)
self.h1_layout.addWidget(self.name_text)
self.h2_layout.addWidget(self.show_label)
self.h2_layout.addWidget(self.show_text)
self.h3_layout.addWidget(self.start_btn)
self.h3_layout.addWidget(self.cancel_btn)
self.v_layout.addLayout(self.h1_layout)
self.v_layout.addLayout(self.h2_layout)
self.v_layout.addLayout(self.h3_layout)
self.setLayout(self.v_layout)
def connect_init(self):
self.start_btn.clicked.connect(self.start_slot)
self.cancel_btn.clicked.connect(self.close_slot)
def start_slot(self):
name = self.name_text.text()
show = self.show_text.toPlainText()
self.add_start_signal.emit(name,show)
def close_slot(self):
self.close()
self.add_close_signal.emit()
def closeEvent(self, event):
'''重寫關閉事件'''
self.add_close_signal.emit()
這是添加數據的界面
自定義了兩個信號
1.添加數據的信號，當按下添加按鈕，這個界面向主界面?zhèn)鬏攦蓚€(gè)字符串
2.結束這個界面的信號，不管是×了這個界面（重寫了關閉事件）還是按下取消按鈕，都向主界面發送信號，用來使主界面可以使用

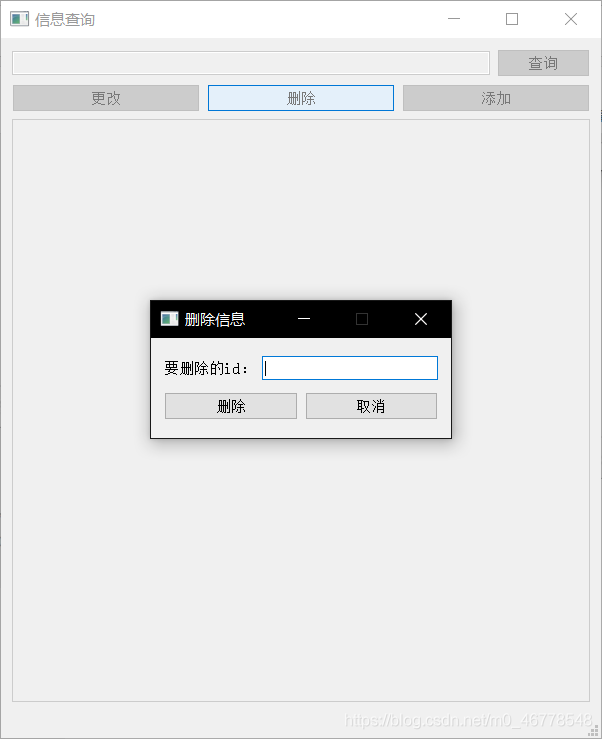

刪除數據的界面
class DeleteWidget(QWidget):
'''
刪除功能界面
'''
delete_cancel_signal = pyqtSignal()
delete_start_signal = pyqtSignal(str)
delete_close_signal = pyqtSignal()
def __init__(self):
super(DeleteWidget,self).__init__()
self.ui_init()
self.connect_init()
def ui_init(self):
self.setWindowTitle('刪除信息')
self.setFixedSize(300,100)
self.id_text = QLineEdit()
self.start_btn = QPushButton()
self.start_btn.setText('刪除')
self.cancel_btn = QPushButton()
self.cancel_btn.setText('取消')
self.id_label = QLabel()
self.id_label.setText('要?jiǎng)h除的id：')
self.h1_layout = QHBoxLayout()
self.h2_layout = QHBoxLayout()
self.v_layout = QVBoxLayout()
self.h1_layout.addWidget(self.id_label)
self.h1_layout.addWidget(self.id_text)
self.h2_layout.addWidget(self.start_btn)
self.h2_layout.addWidget(self.cancel_btn)
self.v_layout.addLayout(self.h1_layout)
self.v_layout.addLayout(self.h2_layout)
self.setLayout(self.v_layout)
def connect_init(self):
self.start_btn.clicked.connect(self.start_slot)
self.cancel_btn.clicked.connect(self.close_slot)
def start_slot(self):
id = self.id_text.text()
self.delete_start_signal.emit(id)
def close_slot(self):
self.close()
self.delete_close_signal.emit()
def closeEvent(self, event):
self.delete_close_signal.emit()
這是刪除數據的界面，跟之前界面布局基本一樣

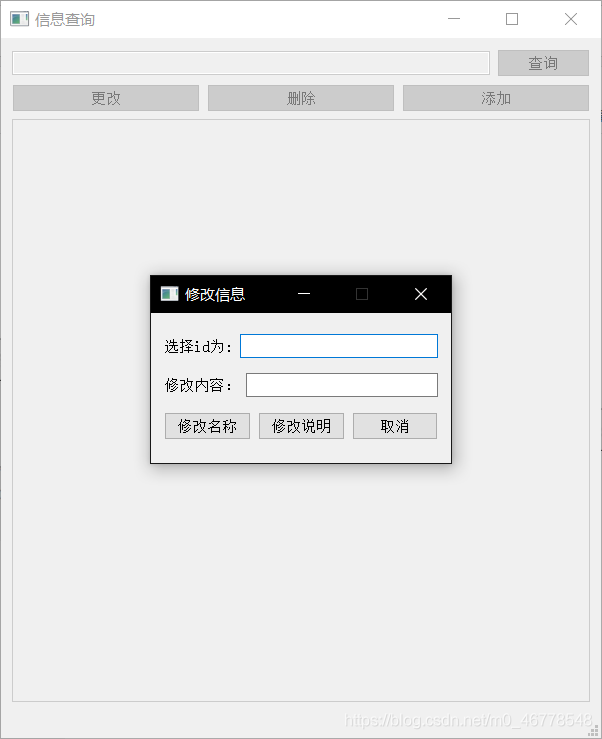

修改數據的界面
class UpdateWidget(QWidget):
'''
更新功能界面
'''
update_name_signal = pyqtSignal(int,str)
update_show_signal = pyqtSignal(int,str)
update_close_signal = pyqtSignal()
def __init__(self):
super(UpdateWidget,self).__init__()
self.ui_init()
self.connect_init()
def ui_init(self):
self.setWindowTitle('修改信息')
self.setFixedSize(300,150)
self.content_text = QLineEdit()
self.id_text = QLineEdit()
self.name_btn = QPushButton()
self.name_btn.setText('修改名稱')
self.show_btn = QPushButton()
self.show_btn.setText('修改說明')
self.cancel_btn = QPushButton()
self.cancel_btn.setText('取消')
self.content_label = QLabel()
self.content_label.setText('修改內容：')
self.id_label = QLabel()
self.id_label.setText('選擇id為:')
self.h1_layout = QHBoxLayout()
self.h2_layout = QHBoxLayout()
self.h3_layout = QHBoxLayout()
self.v_layout = QVBoxLayout()
self.h1_layout.addWidget(self.id_label)
self.h1_layout.addWidget(self.id_text)
self.h2_layout.addWidget(self.content_label)
self.h2_layout.addWidget(self.content_text)
self.h3_layout.addWidget(self.name_btn)
self.h3_layout.addWidget(self.show_btn)
self.h3_layout.addWidget(self.cancel_btn)
self.v_layout.addLayout(self.h1_layout)
self.v_layout.addLayout(self.h2_layout)
self.v_layout.addLayout(self.h3_layout)
self.setLayout(self.v_layout)
def connect_init(self):
self.name_btn.clicked.connect(self.update_name_slot)
self.show_btn.clicked.connect(self.update_show_slot)
self.cancel_btn.clicked.connect(self.close_slot)
def update_name_slot(self):
id = self.id_text.text()
id = int(id)
content = self.content_text.text()
self.update_name_signal.emit(id,content)
def update_show_slot(self):
id = self.id_text.text()
id = int(id)
content = self.content_text.text()
self.update_show_signal.emit(id,content)
def close_slot(self):
self.close()
self.update_close_signal.emit()
def closeEvent(self, event):
self.update_close_signal.emit()
這個更新數據的界面，跟之前的界面的布局基本一樣
全部代碼
import sys
from PyQt5.QtCore import pyqtSignal
from PyQt5.QtWidgets import QApplication, QMainWindow, QWidget, QPushButton, QTextEdit, QHBoxLayout, QVBoxLayout, QLineEdit, QLabel,QTextBrowser
import sqlite3
class MainWidget(QMainWindow):
def __init__(self):
super(MainWidget,self).__init__()
self.ui_init()
self.connect_init()
self.sql_init()
def ui_init(self):
self.setWindowTitle('信息查詢')
self.resize(600,700)
self.addwidget = AddWidget()
self.deletewidget = DeleteWidget()
self.updatewidget = UpdateWidget()
self.show_view = QTextBrowser()
self.find_text = QLineEdit()
self.find_btn = QPushButton()
self.find_btn.setText('查詢')
self.update_btn = QPushButton()
self.update_btn.setText('更改')
self.delete_btn = QPushButton()
self.delete_btn.setText('刪除')
self.add_btn = QPushButton()
self.add_btn.setText('添加')
self.status_bar = self.statusBar()
self.widget = QWidget()
self.h1_layout = QHBoxLayout()
self.h2_layout = QHBoxLayout()
self.v_layout = QVBoxLayout()
self.h1_layout.addWidget(self.find_text)
self.h1_layout.addWidget(self.find_btn)
self.h2_layout.addWidget(self.update_btn)
self.h2_layout.addWidget(self.delete_btn)
self.h2_layout.addWidget(self.add_btn)
self.v_layout.addLayout(self.h1_layout)
self.v_layout.addLayout(self.h2_layout)
self.v_layout.addWidget(self.show_view)
self.widget.setLayout(self.v_layout)
self.setCentralWidget(self.widget)
def connect_init(self):
'''
信號與槽
'''
'''查詢功能'''
self.find_btn.clicked.connect(lambda:self.find_slot(self.find_text.text()))
'''添加功能'''
self.add_btn.clicked.connect(self.add_slot)
self.addwidget.add_close_signal.connect(lambda:self.setEnabled(True))
self.addwidget.add_start_signal.connect(self.add_start_slot)
'''刪除功能'''
self.delete_btn.clicked.connect(self.delete_slot)
self.deletewidget.delete_close_signal.connect(lambda:self.setEnabled(True))
self.deletewidget.delete_start_signal.connect(self.delete_start_slot)
'''更新功能'''
self.update_btn.clicked.connect(self.update_slot)
self.updatewidget.update_close_signal.connect(lambda:self.setEnabled(True))
self.updatewidget.update_name_signal.connect(self.update_name_slot)
self.updatewidget.update_show_signal.connect(self.update_show_slot)
def sql_init(self):
'''
sqllite3初始化
'''
try:
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('select * from design')
cursor.close()
conn.close()
except:
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('create table design (id integer PRIMARY KEY AUTOINCREMENT,name varchar(20),show varchar(100))')
cursor.close()
conn.close()
'''查詢槽'''
def find_slot(self,content):
try:
result = self.find_func(content)
self.status_bar.showMessage('查詢成功')
if result:
self.show_view.append('<font size="5" color="red">共查詢 {} 條數據</font>'.format(len(result)))
for i in range(len(result)):
self.show_view.append('id:' + str(result[i][0]))
self.show_view.append('名稱：' + result[i][1])
self.show_view.append('說明：' + result[i][2])
else:
self.show_view.append('<font size="5" color="red">共查詢 {} 條數據</font>'.format(len(result)))
except Exception as e:
self.status_bar.showMessage('查詢失敗')
print(e)
'''添加槽'''
def add_slot(self):
self.addwidget.show()
self.setEnabled(False)
def add_start_slot(self,name,show):
try:
self.insert_func(name,show)
self.status_bar.showMessage('添加成功')
except Exception as e:
self.status_bar.showMessage('添加失敗')
self.setEnabled(True)
self.addwidget.name_text.clear()
self.addwidget.show_text.clear()
self.addwidget.close()
'''刪除槽'''
def delete_slot(self):
self.deletewidget.show()
self.setEnabled(False)
def delete_start_slot(self,id):
try:
self.delete_func(id)
self.reset_func()
self.status_bar.showMessage('刪除成功')
except Exception as e:
self.status_bar.showMessage('刪除失敗')
self.setEnabled(True)
self.deletewidget.close()
'''更新槽'''
def update_slot(self):
self.updatewidget.show()
self.setEnabled(False)
def update_name_slot(self,id,name):
try:
self.update_name_func(id,name)
self.status_bar.showMessage('更新名稱成功')
except Exception as e:
self.status_bar.showMessage('更新名稱失敗')
self.setEnabled(True)
self.updatewidget.close()
def update_show_slot(self,id,name):
try:
self.update_show_func(id,name)
self.status_bar.showMessage('更新名稱成功')
except Exception as e:
self.status_bar.showMessage('更新名稱失敗')
self.setEnabled(True)
self.updatewidget.close()
'''數據庫函數'''
def insert_func(self,name,show):
'''
插入信息
'''
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('insert into design (id,name,show) values (null,"{}","{}")'.format(name,show))
cursor.close()
conn.commit()
conn.close()
def find_func(self,content):
'''
查詢信息
'''
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('SELECT * FROM design WHERE name LIKE "%{}%"'.format(content))
result1 = cursor.fetchall()
cursor.close()
conn.close()
return result1
def count_func(self):
'''
信息數目
'''
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('select * from design')
result = cursor.fetchall()
count = len(result)
cursor.close()
conn.close()
return count
def update_name_func(self,id,name):
'''
更新名稱信息
'''
print(id,name)
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('update design set name = ? where id = ?',(name,id))
cursor.close()
conn.commit()
conn.close()
def update_show_func(self,id,name):
'''
更新說明信息
'''
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('update design set show = ? where id = ?',(name,id))
cursor.close()
conn.commit()
conn.close()
def delete_func(self,id):
'''
刪除信息
'''
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute('delete from design where id = ?',(id,))
cursor.close()
conn.commit()
conn.close()
def reset_func(self):
conn = sqlite3.connect('find.db')
cursor = conn.cursor()
cursor.execute("DELETE FROM sqlite_sequence WHERE name = 'design'")
cursor.close()
conn.commit()
conn.close()
class AddWidget(QWidget):
'''
添加功能界面
'''
add_start_signal = pyqtSignal(str,str)
add_close_signal = pyqtSignal()
def __init__(self):
super(AddWidget,self).__init__()
self.ui_init()
self.connect_init()
def ui_init(self):
self.setWindowTitle('添加信息')
self.setFixedSize(300,200)
self.name_text = QLineEdit()
self.show_text = QTextEdit()
self.start_btn = QPushButton()
self.start_btn.setText('添加')
self.cancel_btn = QPushButton()
self.cancel_btn.setText('取消')
self.name_label = QLabel()
self.name_label.setText('名稱：')
self.show_label = QLabel()
self.show_label.setText('說明：')
self.h1_layout = QHBoxLayout()
self.h2_layout = QHBoxLayout()
self.h3_layout = QHBoxLayout()
self.v_layout = QVBoxLayout()
self.h1_layout.addWidget(self.name_label)
self.h1_layout.addWidget(self.name_text)
self.h2_layout.addWidget(self.show_label)
self.h2_layout.addWidget(self.show_text)
self.h3_layout.addWidget(self.start_btn)
self.h3_layout.addWidget(self.cancel_btn)
self.v_layout.addLayout(self.h1_layout)
self.v_layout.addLayout(self.h2_layout)
self.v_layout.addLayout(self.h3_layout)
self.setLayout(self.v_layout)
def connect_init(self):
self.start_btn.clicked.connect(self.start_slot)
self.cancel_btn.clicked.connect(self.close_slot)
def start_slot(self):
name = self.name_text.text()
show = self.show_text.toPlainText()
self.add_start_signal.emit(name,show)
def close_slot(self):
self.close()
self.add_close_signal.emit()
def closeEvent(self, event):
self.add_close_signal.emit()
class DeleteWidget(QWidget):
'''
刪除功能界面
'''
delete_cancel_signal = pyqtSignal()
delete_start_signal = pyqtSignal(str)
delete_close_signal = pyqtSignal()
def __init__(self):
super(DeleteWidget,self).__init__()
self.ui_init()
self.connect_init()
def ui_init(self):
self.setWindowTitle('刪除信息')
self.setFixedSize(300,100)
self.id_text = QLineEdit()
self.start_btn = QPushButton()
self.start_btn.setText('刪除')
self.cancel_btn = QPushButton()
self.cancel_btn.setText('取消')
self.id_label = QLabel()
self.id_label.setText('要?jiǎng)h除的id：')
self.h1_layout = QHBoxLayout()
self.h2_layout = QHBoxLayout()
self.v_layout = QVBoxLayout()
self.h1_layout.addWidget(self.id_label)
self.h1_layout.addWidget(self.id_text)
self.h2_layout.addWidget(self.start_btn)
self.h2_layout.addWidget(self.cancel_btn)
self.v_layout.addLayout(self.h1_layout)
self.v_layout.addLayout(self.h2_layout)
self.setLayout(self.v_layout)
def connect_init(self):
self.start_btn.clicked.connect(self.start_slot)
self.cancel_btn.clicked.connect(self.close_slot)
def start_slot(self):
id = self.id_text.text()
self.delete_start_signal.emit(id)
def close_slot(self):
self.close()
self.delete_close_signal.emit()
def closeEvent(self, event):
self.delete_close_signal.emit()
class UpdateWidget(QWidget):
'''
更新功能界面
'''
update_name_signal = pyqtSignal(int,str)
update_show_signal = pyqtSignal(int,str)
update_close_signal = pyqtSignal()
def __init__(self):
super(UpdateWidget,self).__init__()
self.ui_init()
self.connect_init()
def ui_init(self):
self.setWindowTitle('修改信息')
self.setFixedSize(300,150)
self.content_text = QLineEdit()
self.id_text = QLineEdit()
self.name_btn = QPushButton()
self.name_btn.setText('修改名稱')
self.show_btn = QPushButton()
self.show_btn.setText('修改說明')
self.cancel_btn = QPushButton()
self.cancel_btn.setText('取消')
self.content_label = QLabel()
self.content_label.setText('修改內容：')
self.id_label = QLabel()
self.id_label.setText('選擇id為:')
self.h1_layout = QHBoxLayout()
self.h2_layout = QHBoxLayout()
self.h3_layout = QHBoxLayout()
self.v_layout = QVBoxLayout()
self.h1_layout.addWidget(self.id_label)
self.h1_layout.addWidget(self.id_text)
self.h2_layout.addWidget(self.content_label)
self.h2_layout.addWidget(self.content_text)
self.h3_layout.addWidget(self.name_btn)
self.h3_layout.addWidget(self.show_btn)
self.h3_layout.addWidget(self.cancel_btn)
self.v_layout.addLayout(self.h1_layout)
self.v_layout.addLayout(self.h2_layout)
self.v_layout.addLayout(self.h3_layout)
self.setLayout(self.v_layout)
def connect_init(self):
self.name_btn.clicked.connect(self.update_name_slot)
self.show_btn.clicked.connect(self.update_show_slot)
self.cancel_btn.clicked.connect(self.close_slot)
def update_name_slot(self):
id = self.id_text.text()
id = int(id)
content = self.content_text.text()
self.update_name_signal.emit(id,content)
def update_show_slot(self):
id = self.id_text.text()
id = int(id)
content = self.content_text.text()
self.update_show_signal.emit(id,content)
def close_slot(self):
self.close()
self.update_close_signal.emit()
def closeEvent(self, event):
self.update_close_signal.emit()
if __name__ == '__main__':
app = QApplication(sys.argv)
dispaly = MainWidget()
dispaly.show()
sys.exit(app.exec_())
展示
到此這篇關于Python PyQt5實戰項目之查詢器的實現流程詳解的文章就介紹到這了,更多相關Python PyQt5 查詢器內容請搜索本站以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持本站！
版權聲明：本站文章來源標注為YINGSOO的內容版權均為本站所有，歡迎引用、轉載，請保持原文完整并注明來源及原文鏈接。禁止復制或仿造本網站，禁止在非maisonbaluchon.cn所屬的服務器上建立鏡像，否則將依法追究法律責任。本站部分內容來源于網友推薦、互聯網收集整理而來，僅供學習參考，不代表本站立場，如有內容涉嫌侵權，請聯系alex-e#qq.com處理。
相關文章
關注官方微信
