redis服務器環境下mysql實現lnmp架構緩存
發布日期：2022-03-21 18:53 | 文章來源：gibhub
配置環境：redhat6.5
server1：redis（172.25.254.1）
server2：php（172.25.254.2）
server3：mysql（172.25.254.3）
配置步驟：
server2：

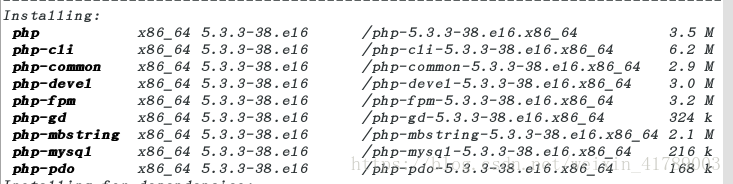

1、server2安裝php的redis相應模塊
2、nginx安裝
[root@server2 php-fpm.d]# rpm -ivh nginx-1.8.0-1.el6.ngx.x86_64.rpm warning: nginx-1.8.0-1.el6.ngx.x86_64.rpm: Header V4 RSA/SHA1 Signature, key ID 7bd9bf62: NOKEY Preparing... ########################################### [100%] 1:nginx ########################################### [100%] ---------------------------------------------------------------------- Thanks for using nginx! Please find the official documentation for nginx here: * https://nginx.org/en/docs/ Commercial subscriptions for nginx are available on: * https://nginx.com/products/ ---------------------------------------------------------------------- [root@server2 php-fpm.d]# id nginx uid=498(nginx) gid=499(nginx) groups=499(nginx)
3、nginx和php配置
1、php配置
[root@server2 php-fpm.d]# cd /etc/php-fpm.d/ [root@server2 php-fpm.d]# id nginx uid=498(nginx) gid=499(nginx) groups=499(nginx) [root@server2 php-fpm.d]# vim www.conf 39 user = nginx 41 group = nginx [root@server2 php-fpm.d]# vim /etc/php.ini 946 date.timezone = Asia/Shanghai [root@server2 php-fpm.d]# /etc/init.d/php-fpm start Starting php-fpm: [ OK ] [root@server2 php-fpm.d]# netstat -antlp | grep php tcp 0 0 127.0.0.1:9000 0.0.0.0:* LISTEN 1125/php-fpm [root@server2 php-fpm.d]# vim /etc/php.ini
2、nginx配置
[root@server2 ~]# cd /etc/nginx/conf.d/
[root@server2 conf.d]# ls
default.conf example_ssl.conf
[root@server2 conf.d]# vim default.conf
10 index index.php index.html index.htm;
30 location ~ \.php$ {
31 root html;
32 fastcgi_pass 127.0.0.1:9000;
33 fastcgi_index index.php;
34 fastcgi_param SCRIPT_FILENAME /usr/share/nginx/html$fastcgi_script _name;
35 include fastcgi_params;
36 }
[root@server2 conf.d]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@server2 conf.d]# nginx

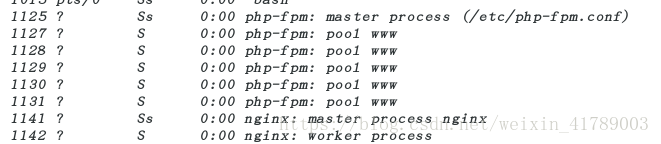

[root@server2 conf.d]# netstat -anplt |grep nginx
tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 1141/nginx

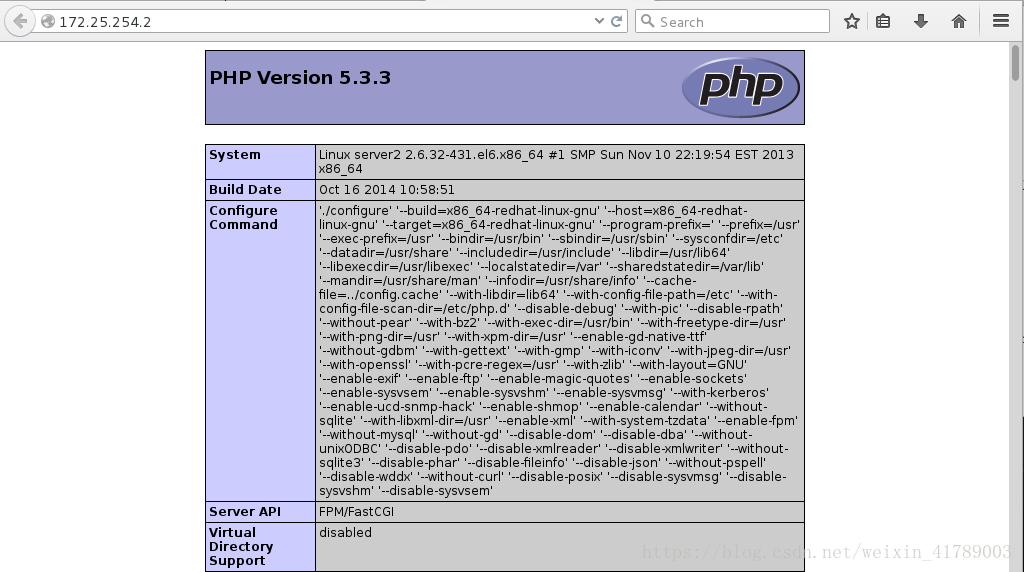

php測試：
[root@server2 conf.d]# cd /usr/share/nginx/html/ [root@server2 html]# vim index.php [root@server2 html]# cat index.php <!--php phpinfo() --> [root@server2 html]# /etc/init.d/php-fpm reload Reloading php-fpm: [14-Jul-2018 01:09:13] NOTICE: configuration file /etc/php-fpm.conf test is successful [ OK ]
物理機訪問：
4、php配置redis+mysql
[root@server2 ~]# cd /usr/share/nginx/html/
[root@server2 html]# vim test.php
<!--php
$redis = new Redis();
$redis--->connect('172.25.254.1',6379) or die ("could net connect redi s server");
# $query = "select * from test limit 9";
$query = "select * from test";
for ($key = 1; $key < 10; $key++)
{
if (!$redis->get($key))
{
$connect = mysql_connect('172.25.254.3','redis','wes tos');
mysql_select_db(test);
$result = mysql_query($query);
//如果沒有找到$key,就將該查詢sql的結果緩存到redis
while ($row = mysql_fetch_assoc($result))
{
$redis->set($row['id'],$row['name']);
}
$myserver = 'mysql';
break;
}
else
{
$myserver = "redis";
$data[$key] = $redis->get($key);
}
}
echo $myserver;
echo "
";
for ($key = 1; $key < 10; $key++)
{
echo "number is $key";
echo "
";
echo "name is $data[$key]" ;
echo "
";
}
>
5、添加php支持的redis模塊
[root@server2 ~]# unzip phpredis-master.zip [root@server2 ~]# cd phpredis-master [root@server2 phpredis-master]# phpize Configuring for: PHP Api Version: 20090626 Zend Module Api No: 20090626 Zend Extension Api No: 220090626 [root@server2 phpredis-master]# ls acinclude.m4 config.sub library.c README.markdown aclocal.m4 configure library.h redis.c autom4te.cache configure.in ltmain.sh redis_session.c build CREDITS Makefile.global redis_session.h common.h debian missing run-tests.php config.guess debian.control mkdeb-apache2.sh serialize.list config.h.in igbinary mkinstalldirs tests config.m4 install-sh php_redis.h [root@server2 phpredis-master]# ./configure [root@server2 phpredis-master]# make && make install [root@server2 ~]# cd /etc/php.d/ [root@server2 php.d]# ls curl.ini json.ini mysql.ini pdo_sqlite.ini zip.ini fileinfo.ini mbstring.ini pdo.ini phar.ini gd.ini mysqli.ini pdo_mysql.ini sqlite3.ini [root@server2 php.d]# cp mysql.ini redis.ini [root@server2 php.d]# vim redis.ini 2 extension=redis.so [root@server2 php.d]# /etc/init.d/php-fpm reload Reloading php-fpm: [14-Jul-2018 01:21:56] NOTICE: configuration file /etc/php-fpm.conf test is successful [ OK ] [root@server2 php.d]# php -m |grep redis redis server3:mysql配置
1、安裝mysql-server
[root@server3 ~]# rpm -qa | grep mysql mysql-community-common-5.7.17-1.el6.x86_64 mysql-community-client-5.7.17-1.el6.x86_64 mysql-community-libs-compat-5.7.17-1.el6.x86_64 mha4mysql-node-0.56-0.el6.noarch mysql-community-libs-5.7.17-1.el6.x86_64 mysql-community-server-5.7.17-1.el6.x86_64 [root@server3 ~]# rpm -e `rpm -qa|grep mysql` --nodeps ##不考慮依賴性刪除mysql warning: /etc/my.cnf saved as /etc/my.cnf.rpmsave [root@server3 ~]# rpm -qa | grep mysql [root@server3 ~]# cd /var/lib/mysql/ [root@server3 mysql]# rm -fr * [root@server3 mysql]# ls [root@server3 mysql]# yum install -y mysql-server ##安裝
2、開啟mysql，并導入測試數據庫
[root@server3 ~]# /etc/init.d/mysqld start
[root@server3 ~]# mysql < test.sql
[root@server3 ~]# mysql < test.sql
[root@server3 ~]# cat test.sql
use test;
CREATE TABLE `test` (`id` int(7) NOT NULL AUTO_INCREMENT, `name` char(8) DEFAULT NULL, PRIMARY KEY (`id`)) ENGINE=InnoDB DEFAULT CHARSET=utf8;
INSERT INTO `test` VALUES (1,'test1'),(2,'test2'),(3,'test3'),(4,'test4'),(5,'test5'),(6,'test6'),(7,'test7'),(8,'test8'),(9,'test9');
#DELIMITER $$
#CREATE TRIGGER datatoredis AFTER UPDATE ON test FOR EACH ROW BEGIN
# SET @RECV=gman_do_background('syncToRedis', json_object(NEW.id as `id`, NEW.name as `name`));
# END$$
#DELIMITER ;
3、數據庫授權
[root@server3 ~]# mysql mysql> grant all on test.* to redis@'%' identified by 'westos'; Query OK, 0 rows affected (0.00 sec) mysql> select * from test.test; +----+-------+ | id | name | +----+-------+ | 1 | test1 | | 2 | test2 | | 3 | test3 | | 4 | test4 | | 5 | test5 | | 6 | test6 | | 7 | test7 | | 8 | test8 | | 9 | test9 | +----+-------+ 9 rows in set (0.00 sec)
測試：訪問172.25.254.2/test.php
1、php默認從redis 索取數據，第一次redis無緩存，則php從mysql'索取數據

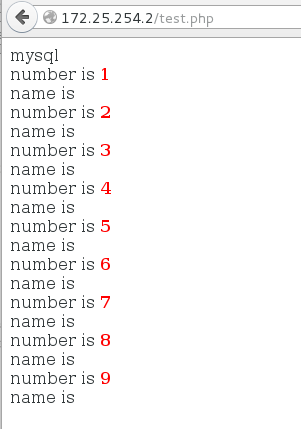

第一次無緩存

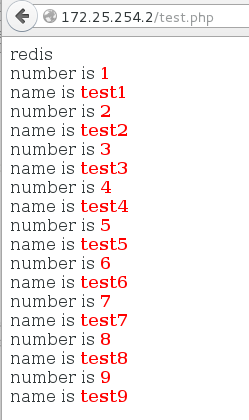

第二次索取數據后：
redis節點也可查看
[root@server1 redis-4.0.1]# redis-cli 127.0.0.1:6379> get 2 "test2"
2、將數據庫server3節點內容更新并刪除節點，則php從數據庫索取數據節點更新內容
mysql> update test.test set name='westos' where id=1; Query OK, 1 row affected (0.05 sec) Rows matched: 1 Changed: 1 Warnings: 0 mysql> select * from test.test; +----+--------+ | id | name | +----+--------+ | 1 | westos | | 2 | test2 | | 3 | test3 | | 4 | test4 | | 5 | test5 | | 6 | test6 | | 7 | test7 | | 8 | test8 | | 9 | test9 | +----+--------+ 9 rows in set (0.00 sec)
redis的master主機刪除節點內容
[root@server1 redis-4.0.1]# redis-cli 127.0.0.1:6379> get 2 "test2" 127.0.0.1:6379> del 1 (integer) 1 127.0.0.1:6379> get 1 (nil)

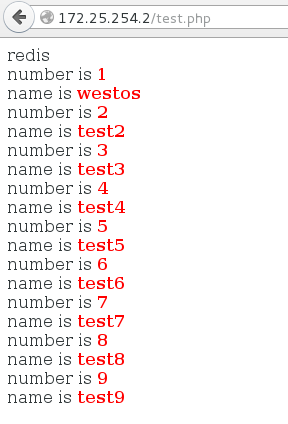

刷新頁面，再次訪問
以上redis 作為 mysql 的緩存服務器,但是如果更新了 mysql，redis中仍然會有對應的 KEY,數據就不會更新,此時就會出現 mysql 和 redis 數據不一致的情況。
總結
以上所述是小編給大家介紹的redis服務器環境下mysql實現lnmp架構緩存，希望對大家有所幫助，如果大家有任何疑問請給我留言，小編會及時回復大家的。在此也非常感謝大家對本站網站的支持！
