PLSQL連接本地oracle或遠程oracle數據庫實現隨意切換功能
先贊后看，此生必賺！
每次安裝Oracle以后，都會出現使用plsql連接不上的問題！多次重啟電腦、重裝系統的磨人經歷之后，
今天看到這篇文章算是你我之幸！希望能幫助廣大技術人員減少一些時間，順利進行連接！
注：也可以用plsql連接遠程數據庫（只要有oracle的network\admin\tnsnames.ora就行）。
首先下載64位oracle以及32位輕量級客戶端(注意版本的對應，我用的是11g的oracle和11.2的客戶端)：
點擊進入oracle下載頁面 點擊進入客戶端下載頁面
以下步驟請自行更改路徑，不然，出錯了別怪我哦：
step1 復制network文件
oracle安裝到某路徑下，安裝步驟很簡單，網上可以搜到！
客戶端隨便解壓到一個路徑，我的是放在D:\app\shuhao\instantclient_11_2了。
然后把oracle中的D:\app\shuhao\product\11.2.0\dbhome_1里面的整個network文件夾復制，

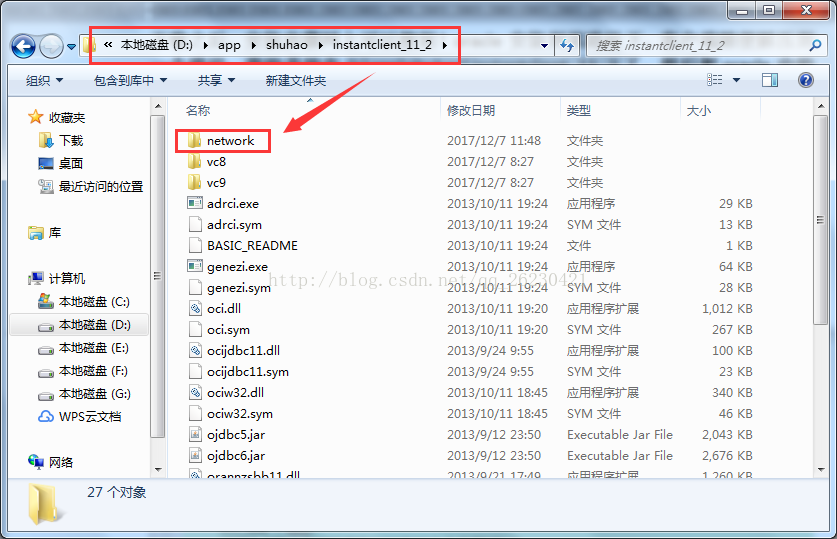

粘貼到客戶端文件夾D:\app\shuhao\instantclient_11_2下面，如下圖所示：
step2 修改配置文件
2.1 修改oracle數據庫文件
D:\app\shuhao\product\11.2.0\dbhome_1\NETWORK\ADMIN\listener.ora文件內容，添加一個SID_DESC：
# listener.ora Network Configuration File: D:\app\shuhao\product\11.2.0\dbhome_1\network\admin\listener.ora
# Generated by Oracle configuration tools.
SID_LIST_LISTENER =
(SID_LIST =
(SID_DESC =
(SID_NAME = CLRExtProc)
(ORACLE_HOME = D:\app\shuhao\product\11.2.0\dbhome_1)
(PROGRAM = extproc)
(ENVS = "EXTPROC_DLLS=ONLY:D:\app\shuhao\product\11.2.0\dbhome_1\bin\oraclr11.dll")
)
#下面的SID_DESC是新增加的內容，注意修改ORACLE_HOME路徑
(SID_DESC =
(SID_NAME = orcl)
(ORACLE_HOME = D:\app\shuhao\product\11.2.0\dbhome_1)
(GLOBAL_DBNAME = orcl)
)
)
LISTENER =
(DESCRIPTION_LIST =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = localhost)(PORT = 1521))
)
)
ADR_BASE_LISTENER = D:\app\shuhao
2.2 修改oracle數據庫文件
D:\app\shuhao\product\11.2.0\dbhome_1\NETWORK\ADMIN\tnsnames.ora文件內容，源文件沒有做改動：
# tnsnames.ora Network Configuration File: D:\app\shuhao\product\11.2.0\dbhome_1\network\admin\tnsnames.ora
# Generated by Oracle configuration tools.
ORACLR_CONNECTION_DATA =
(DESCRIPTION =
(ADDRESS_LIST =
(ADDRESS = (PROTOCOL = TCP)(HOST = localhost)(PORT = 1521))
)
(CONNECT_DATA =
(SERVICE_NAME = orcl)
)
)
LISTENER_ORCL =
(ADDRESS = (PROTOCOL = TCP)(HOST = localhost)(PORT = 1521))
ORCL =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = localhost)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = orcl)
)
)
2.3 修改客戶端文件
D:\app\shuhao\instantclient_11_2\network\admin\tnsnames.ora文件內容:
# tnsnames.ora Network Configuration File: D:\app\shuhao\product\11.2.0\dbhome_1\network\admin\tnsnames.ora
# Generated by Oracle configuration tools.
ORACLR_CONNECTION_DATA =
(DESCRIPTION =
(ADDRESS_LIST =
(ADDRESS = (PROTOCOL = TCP)(HOST = localhost)(PORT = 1521))
)
(CONNECT_DATA =
(SERVICE_NAME = orcl)
)
)
LISTENER_ORCL =
(ADDRESS = (PROTOCOL = TCP)(HOST = localhost)(PORT = 1521))
ORCL =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = localhost)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = orcl)
)
)
#新增 @ 標識符，用于區分本地與遠程oracle
ORCL@192.168.0.164 =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.0.164)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = orcl)
)
)
step3 配置OCI

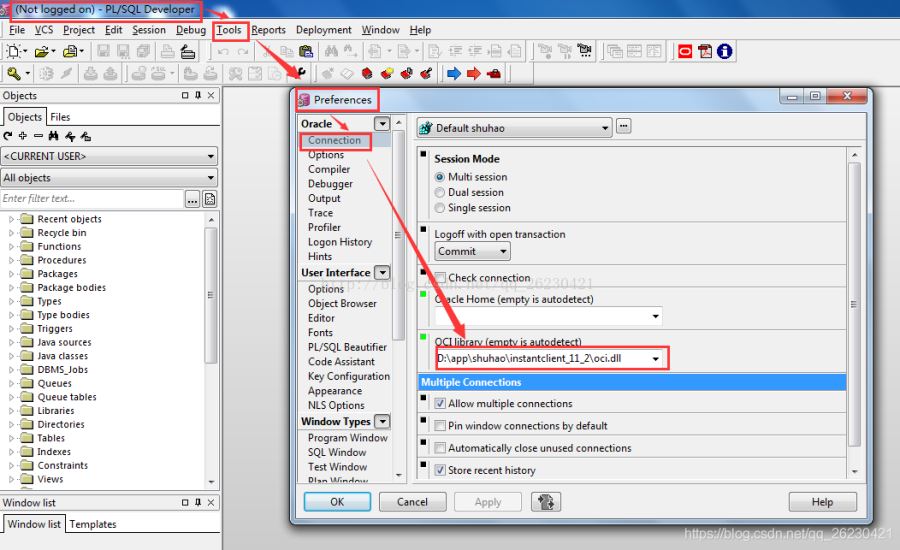

不登錄plsql，直接按Cancel，進入后在Tools--->Preferences---->Connection中配置OCI為32位客戶端的OCI
D:\app\shuhao\instantclient_11_2\oci.dll
step4 環境變量配置
添加前2個系統變量：
1. 變量名：TNS_ADMIN
變量值：D:\app\shuhao\instantclient_11_2\network\admin
2. 變量名：NLS_LANG
變量值：SIMPLIFIED CHINESE_CHINA.ZHS16GBK
3. Path中配置加入：
D:\app\shuhao\product\11.2.0\dbhome_1\BIN;D:\app\shuhao\instantclient_11_2;
step5 重啟電腦（有時候不需要重啟）
啟動oracle服務與監聽，這個就不需要描述了。
step6 登錄plsql?。?！

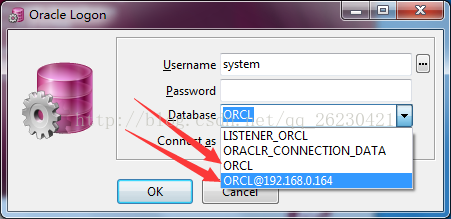

當看到Database下拉框中有本地的ORCL以及遠程的ORCL@192.168.0.164就算成功了！??！
OK, GAME OVER !
